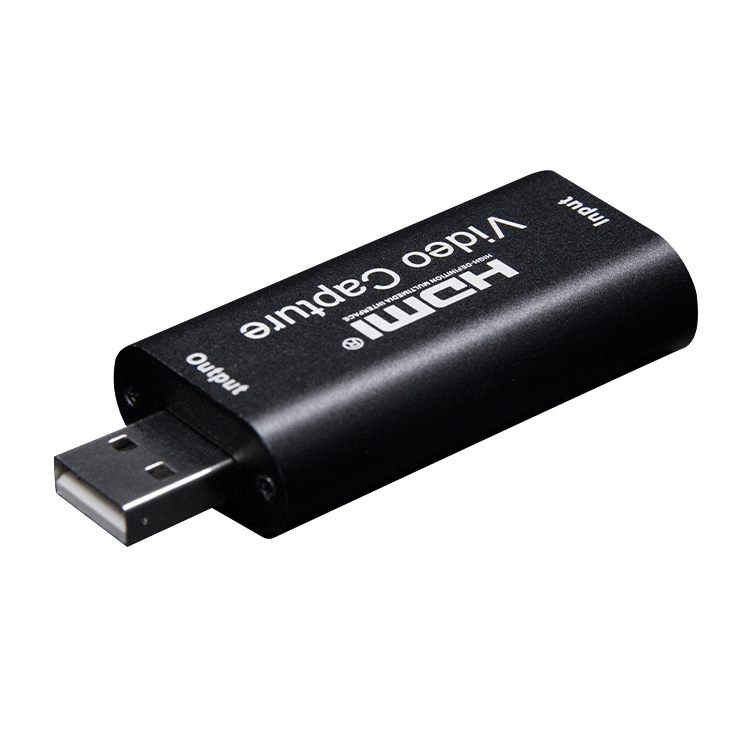

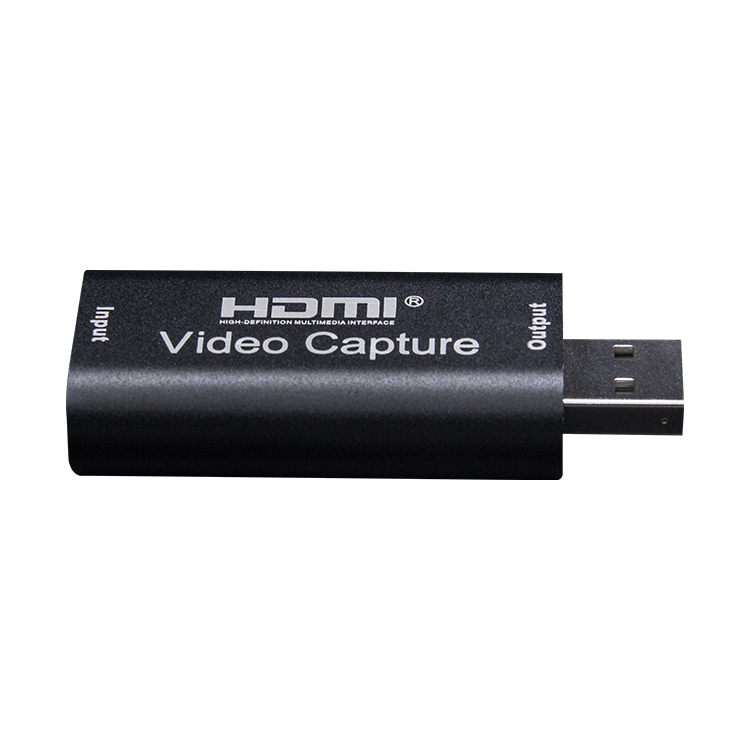

The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.

Features:

Support input max resolution 3840×2160@30Hz;

Support output max resolution 1920×1080@30Hz;

Support 8/10/12bit deep color;

Support AWG26 HDMI standard cable: input up to 15 meters,

(1080P and below resolution);

Support most acquisition software, such as VLC、OBS 、Amcap, etc;

Support Windows、Android and MacOS;

Conform to USB Video and UVC standard;

Conform to USB Audio UAC standard;

Without external power supply, compact and portable.

Specifications:

HDMI resolution ……....………………………………… Max input can be 3840×2160@30Hz

Support video format ……………..……………..…...........................… 8/10/12bit Deep color

Video capture format ……………..........………………......................................... MJPEG

Video output resolution …………………….............. Max output can be 1920×1080@30Hz

Support audio format ………………..….................................................................... L-PCM

Input cable distance .…...……………......…….............. ≤15m,AWG26 HDMI standard cable

Max working current ……………………...........................................................… 0.4A/5VDC

Operating Temperature range …………………………....………..……..……… (-10 to +55℃)

Dimension (L x W x H) ………………...............………………....................... 64x28x13 (mm)

Weight …….…..……………………………………….………………..…….………...…… 21.4g
