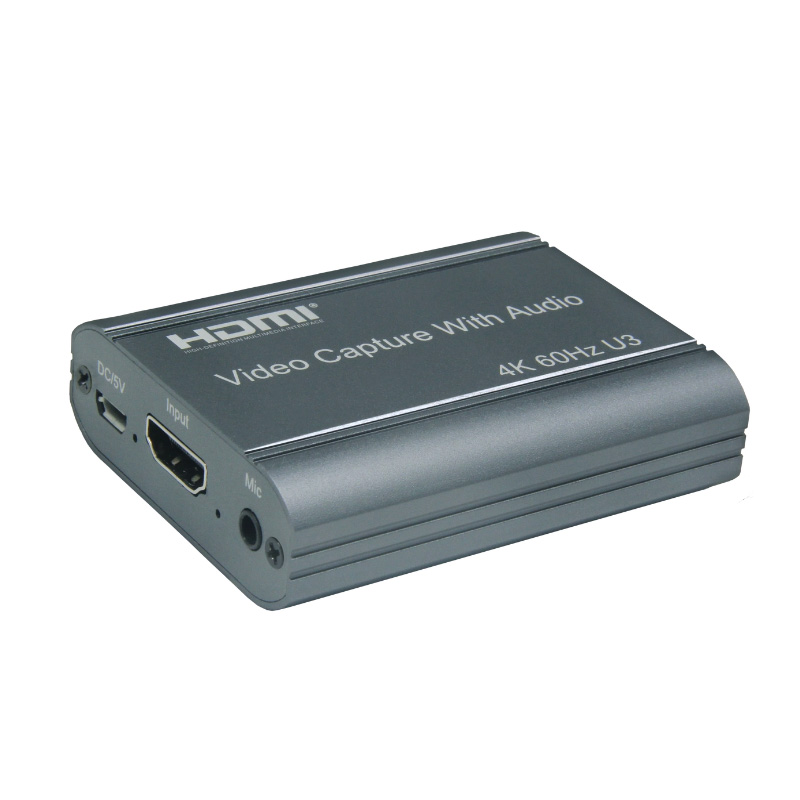

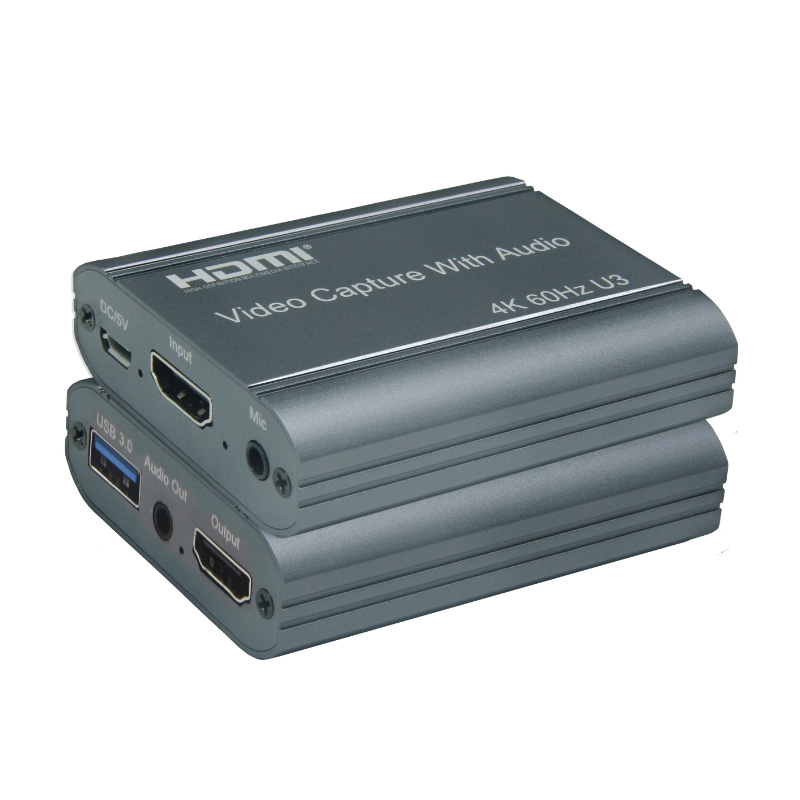

USB3.0 HDMI Capture card with Loop Video capture card

USB3.0 HDMI Capture card with Loop Video capture card

Model: CHU302



Products Description

The USB3.0 HDMI video capture can capture the HD video and audio signal. It can display the HD signal to the displayer or projector.It can support USB storage by computer at the same time.

 The HDMI video capture can separate the HD video and audio signal. The max input resolution can be up to 4K/60Hz and the capture recording resolution can be up to 1080P60Hz.


Features:

* Support max input resolution up to 4K/60Hz, capture recording resolution up to 1080P60Hz;

* Support video capture format: YUY2, MJPG

* Support AWG26 HDMI standard cable: HDMI input up to 8 meters,HDMI output up to 8

 meters. (1080P and below resolution);

* Support USB 3.0 standard cable, output up to 1.5m;

* Support many capture software, such as VLC、OBS 、Amcap and so on...

* Conform to USB video 1.5 and USB audio 1.0 standard;

* Support uncompressed YUY2 acquisition (USB3.0).

Specifications:

HDMI resolution ……………………………………….....……..................……. Up to 4K/60Hz
Capture resolution ……………………………………….....……..................……. Up to 1080P60Hz

Video capture format ………………………………..…….…………..…….............. YUY2 MJPEG

Support audio format………………..………..................................................................LPCM

Max bandwidth……………………………….…………………………………….…...... 600MHz

Max baud rate……………….…….………….…………………………………..…........... 6Gbps

Input cable distance..…...……….……(1080p resolution) ≤8m AWG26 HDMI standard cable

Output cable distance…...............…(1080p resolution) ≤8m AWG26 HDMI standard cable;

≤1.5m USB 3.0 standard cable

Max working current ……………………...........................................................… 0.7A/5VDC

Operating temperature range……………………….....…………….…………… (-10 to +55℃)

Dimension (L x W x H)………………...............……….…..……………………70x56x19 (mm)

Weight …….…..……………………………………………....…………..…….………………56g
