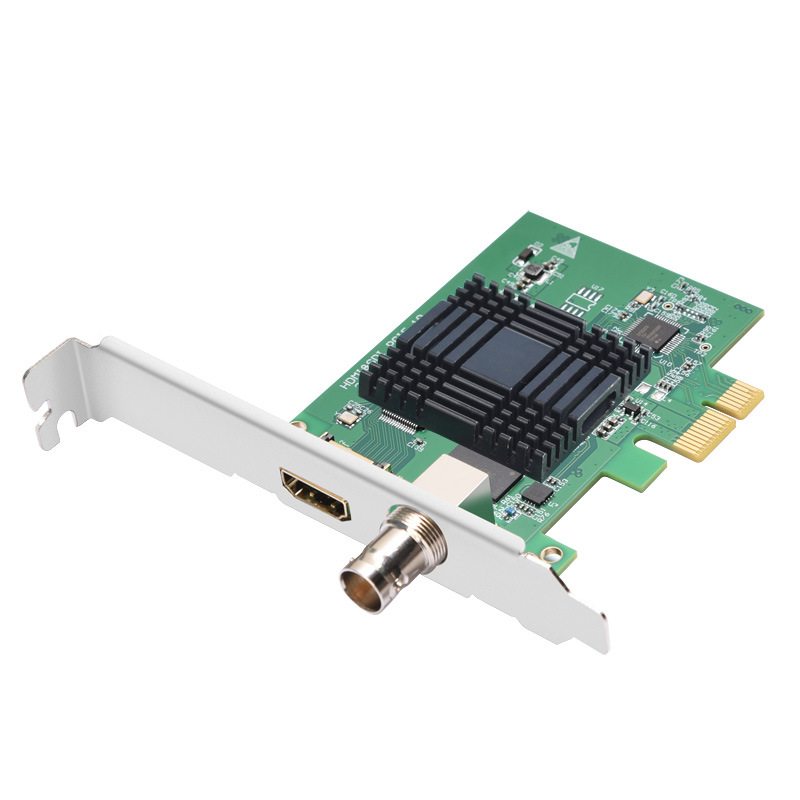

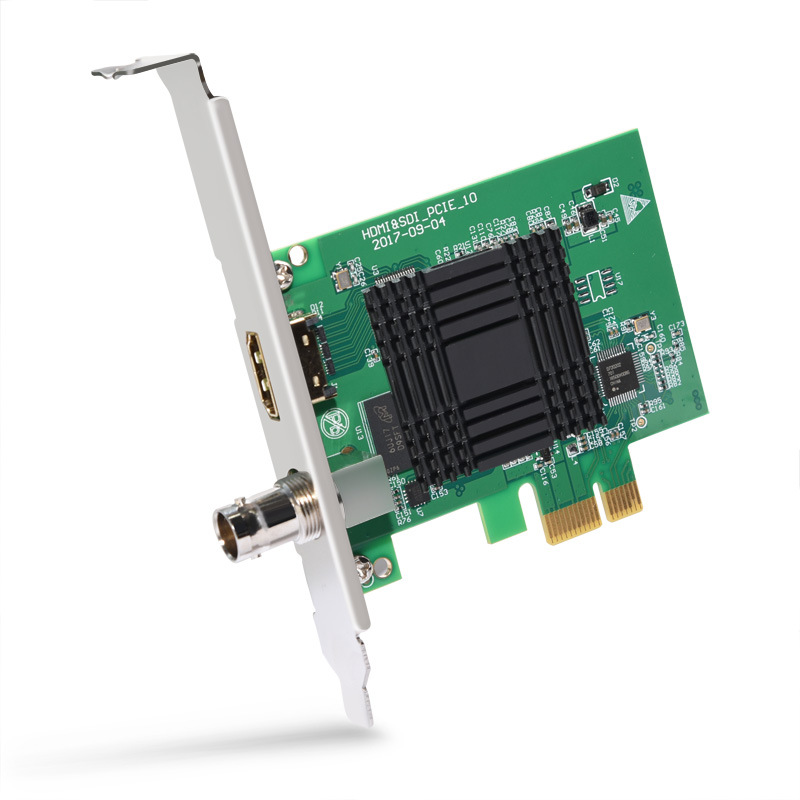

PCIe HDMI SDI Video Grabber Video Capture Card

PCIe HDMI SDI Video Grabber Video Capture Card

Model: CPSH1



Products Description

Product Feature
1.PCI Express 1.0 X1 lane capture card providing up to 360MB/s bandwidth from the capture engine
2. Capture HDMI or 3G-SDI/HD-SDI video stream
3. Resolutions up to 1920×1080 at 60 FPS
4. YUV422 video output
5. imultaneous captured with Audio.
6. Auto detect input video format 1920x1080, 1920x960, 1680x1050, 1280x720, 1024x768, 960x540, 850x480,720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360
7. Brightness, contrast, Saturation, color Hue adjustment
8. Video processed by grabber, no CPU occupation
9. Support Windows XP, 7, 8.1, 10
10. Support multi–device in one PC
11. Firmware can be updated via PCIe
12. Low power consumption,powered by PCIe
13. Size:122x100x22mm


Specification

Interface

PC interface

PCIe Gen 1.0 x1

video Input

1 Ch HD/3G-SDI1 Ch HDMI

Audio input

1 Ch embedded LPCM audio signal

Standards

SDI Standard

SMPTE-259/274/296/372/424/425/292

HDMI Standard

HDMI 1.4a standardup to 1080P60 8-bit

Bit rate

HDMI:165MHzSDI:1.485Gb/s2.97Gb/s

Video capture

UVC (USB video class) 1.0

Audio capture

UAC (USB audio class) 1.0

Color space

YUY2

Others



OS supported

Windows 78.110Windows Server 2008 R2

Compatible software

Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, WireCast etc.

Compatible SDK

DirectShow (Windows), DirectSound (Windows)

Online upgrade

supported

Size

122x100x22mm

Power

3.3V max 1400mA

Working temp.

0 -45 Celsius degree

Storage temp.

0 - 70 Celsius degree

Storage Humi.

5% - 90%
