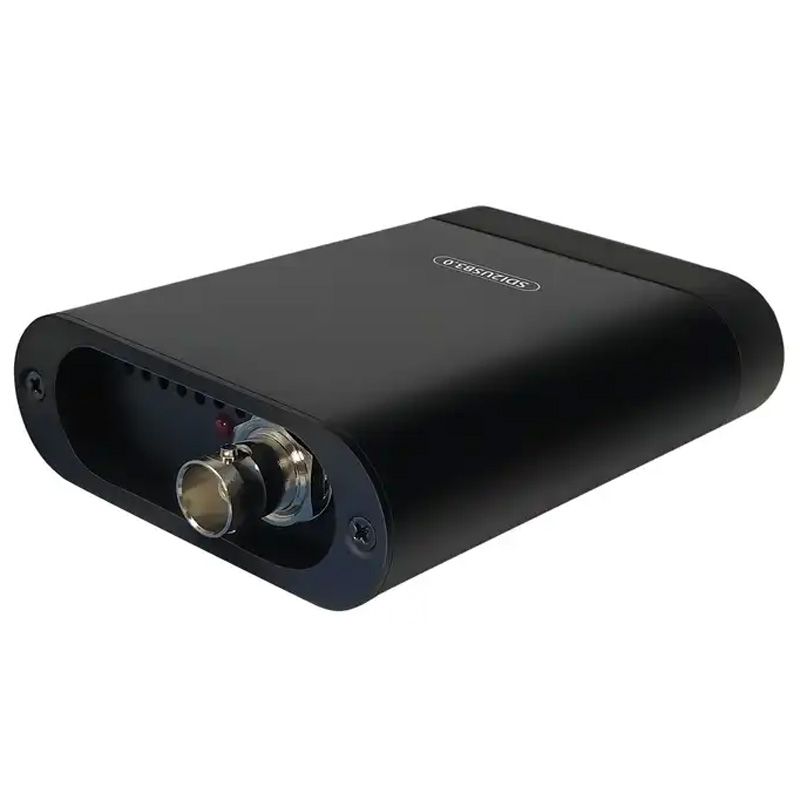

USB3.0 SDI Video Capture Card

USB3.0 SDI Video Capture Card

Model: CSU301



Products Description

Features:



1. 1 HD/3G-SDI video signal input,

2. The input and output video signal can reach 1080p/60 Hz.

3. Support UVC, YUV422 video output.

4. It is compatible with Windows operating systems.

5.It doesn’t need to install a driver, real plug-and-play.

6. Low power consumption, not need adapter.

7. Size: 70x99.6x24mm



High Level Features:

1. USB3.0, 360MB/s

2. The process of video and audio is done by the grabber and will not occupy the CPU.

3. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.

4. USB3.0 output resolution

1)1920x1080, 1920x960

2)1680x1050, 1280x720, 1024x768

3)960x540, 850x480

4)720x576, 720x540, 720x480, 720x404

5)640x480, 640x360


5. The brightness, contrast, hue and saturation can be adjusted automatically.

6. Multiple grabber can be used on one PC

7. The firmware can be updated.






Specification:



Connection:

Host interface

USB3.0360MB/s rate

 Input interface

1 BNC interface



SDI Video input

1 3G-SDI video input



Standards:

SDI input formats

SD/HD/3G-SDIIt meets SMPTE-259/274/296/372/424/425/292 standard



Video Sampling Rate

1.485Gb/s2.97Gb/s

Video capture

It meets the standard of UVC (USB video class)



Audio capture

It meets the standard of  UAC (USB audio class)



Output color space

YUY2

Others:

The support of OS

It supports the following operating systems (x86 and x64 versions):

Windows 7,8,10

Windows Server 2008 R2

OS X (10.8 and above)

Software compatibility

Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wirecast  and etc.

Development interface compatibility

DirectShow (Windows), DirectSound (Windows)

Upgrade

70x99.6x24mm



Size

<= 1.0 W



Working Temperature

0-50 deg C

Storage Temperature

-20-70 deg C

Storage Humidity

5%-90%
