HD Video Recorder Box with Pre-recording and Playback

HD Video Recorder Box with Pre-recording and Playback

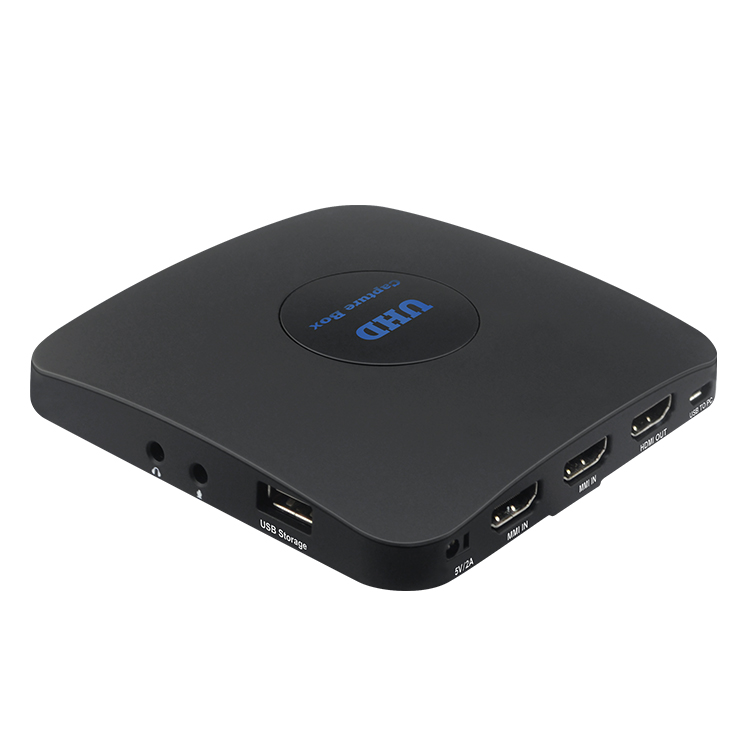

Model: RH60



Products Description

1. Features

1. Plays back videos instantly after recording with the included remote control.

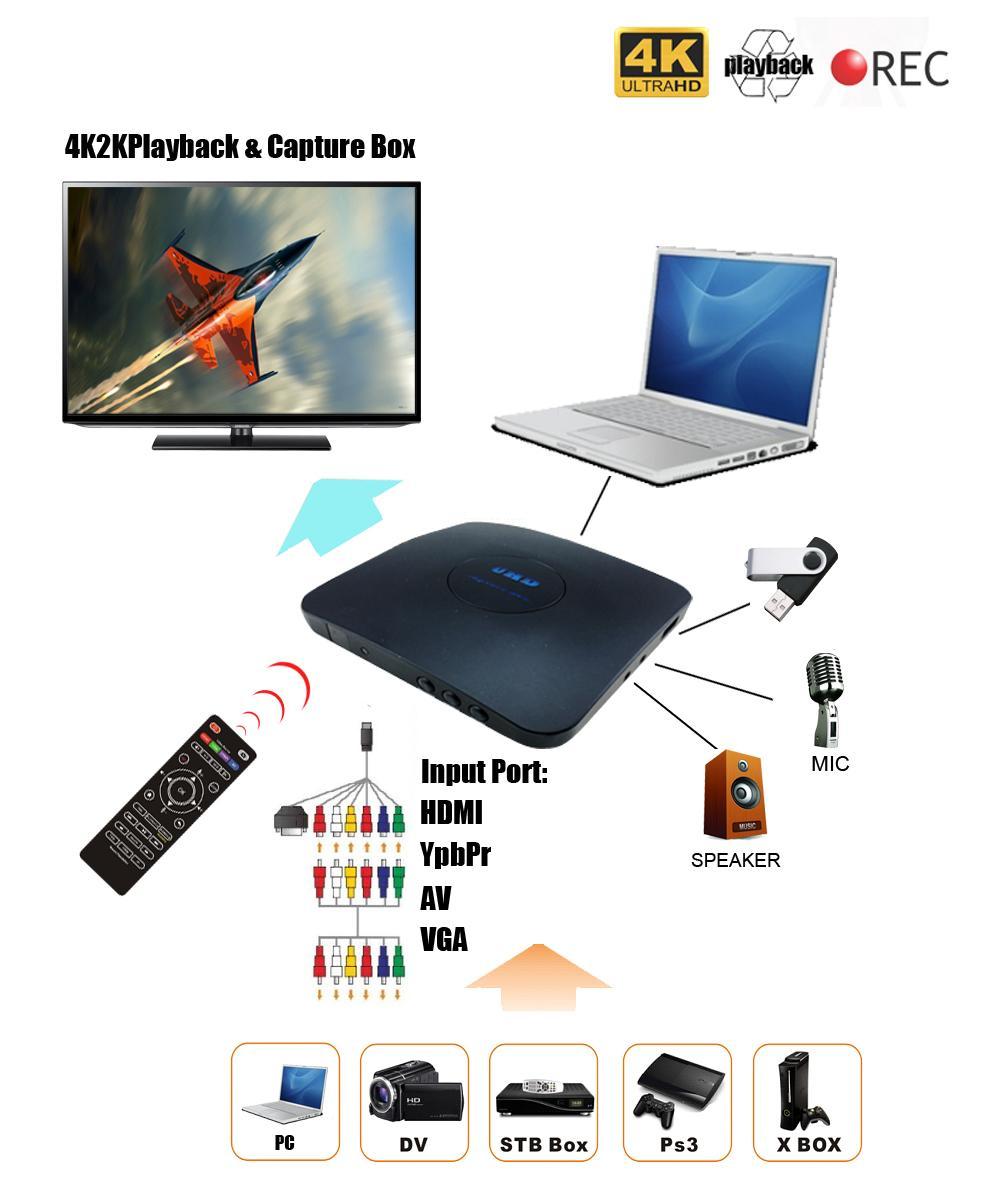

2. Captures network-videos or gameplay from Xbox 360, Xbox One, PS3, PS4, Wii, family-video-discs/B-family-video-discs player, ST box, DV, VCR, etc onto any USB memory stick or mobile hard disk.

3. Captures network-videos or gameplay from any video source to PC directly with a specially-designed USB port on the capture box as well as the management software UXPlayer.

4.Press one button to record/stop.

5.One click to take a screenshot to save your favorite moment.

6.Adopts advanced hardware H.264 encoding to capture your gameplay in stunning 1080p Full HD, while keeping the file size low and capturing speed high.

7.Records while you are playing games or enjoying favorite videos without interruption.

8.Supports various input signals including HDMI, VGA, AV and YPbPr with an included MMI cable.

9.Schedule Recording - Set the start time, recording time and recording frequency, and then videos will be recorded automatically.

10.Menu Navigation - set the video resolution, upgrade the firmware, adjust the picture mode, aspect ratio, sound mode, restore factory settings, etc.

11.Records your own live voice from microphone with gameplay video together.

12.Define the recording time manually by hour and minute so that you don't need to stay in front of PC or laptop all the time while capturing.

13.Set the hot key for starting or stopping recording (F1~F11).

14.Set the language to be displayed on the interface.

15.Select the video bit rate, which will influence the image quality and output size.

16.Select a target folder on PC to save the recorded videos or snapshots.

17.Select whether to automatically generate the file name when recording starts.



2. Specification


Output format

MP4 (H.264)

Video standards (input)

NTSC, PAL, PAL-60

Supported recording formats

FAT32, NTFS, exfat. MBR. GPT

Input signals

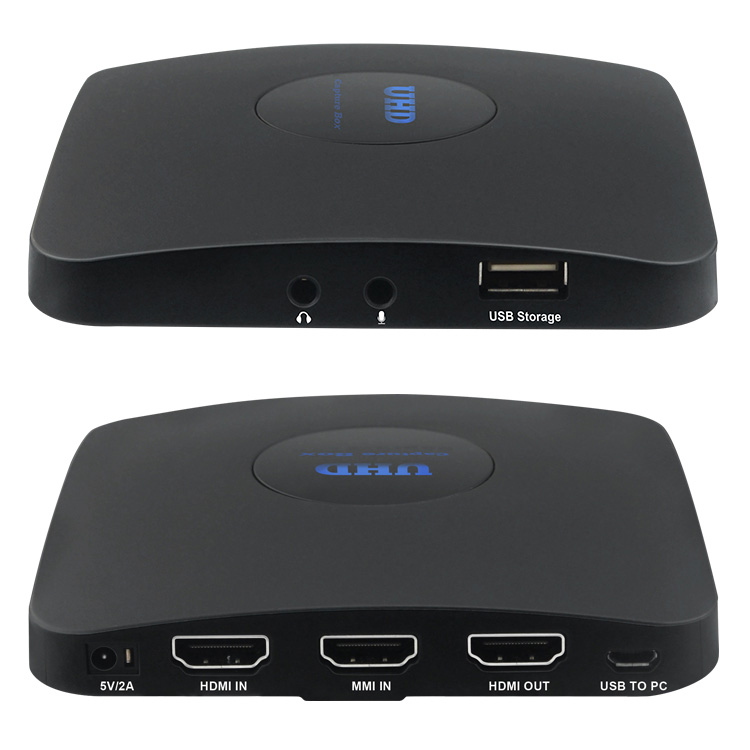

HDMI, VGA, YPbPr, AV, Audio L/R, MIC, Line in/ Out

Output signals

HDMI (pass-through), USB, Micro USB to PC

Bitrate

Max: 18Mbps

Maximum storage capacity

8TB
Recording capacity: Maximum 4GB/16GB per file

Power supply

DC 12V, 1A

Weight

7.3 oz

Dimensions

4.3 x 4.3 x 0.6 inches

Supported file formats for playback

Image formats: BMP, JPG, PNG
Audio formats: MP3, WAV, FLAC, AAC, M4A (AAC encoded)
Video formats: MP4, (Video codec: MPEG-2, MPEG-4, H.264, VC-1, HEVC)



3. Support resolutions

Input

3840x2160 (30p)
1920x1080 (50p), 1920x1080 (60p)
1920x1080 (24p), 1920x1080 (25p), 1920x1080 (30p)
1920x1080 (50i), 1920x1080 (60i), 1360x768 (60p), 1280x1024 (60p)
1280x720 (60p), 1280x768 (60p), 1280x800 (60p), 1024x768 (60p)
720x480 (60i), 720x480 (50i)
640x480 (60p), 720x480 (60p), 720x576 (50p)

Output

1920x1080 (60p)

Recording

1920x1080 (60p), 1280x720 (60p), 1024x768 (60p)
1280x1024 (60p),
PC recording:
1920x1080 (30p)
