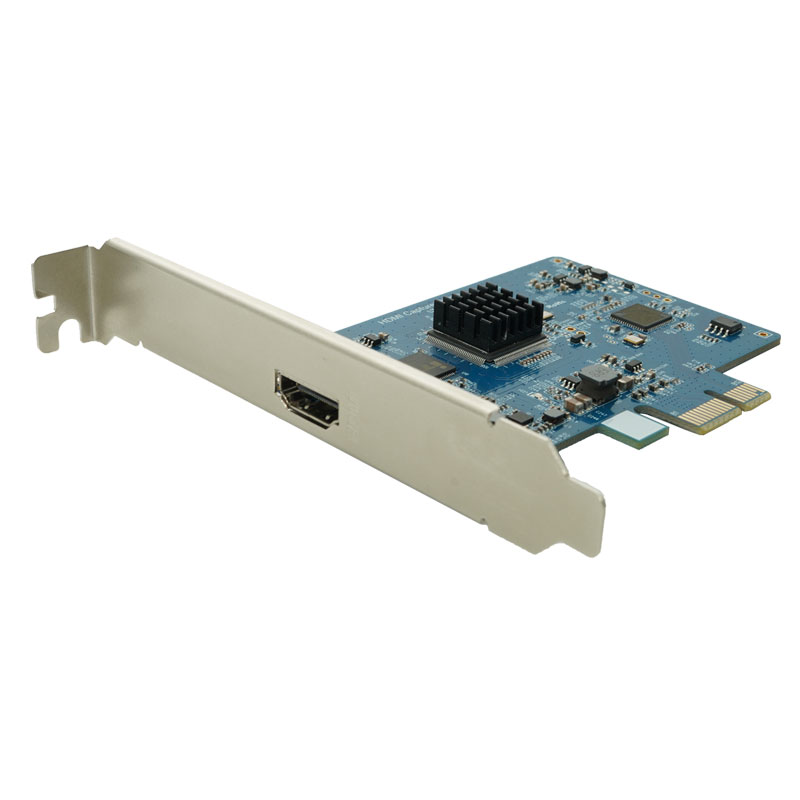

4K HDMI PCIe Video Capture Card 4K30Hz

4K HDMI PCIe Video Capture Card 4K30Hz

Model: CPH1



Products Description

Specification:

  - Interface: PCIe X1

  - Support: Video Input MAX 4K30Hz

  - Support: Audio Input: HDMI 2.0

  - Max. Input : 2160P30FPS, 1440P120FPS, 1080P60FPS

  - Max. Recording: 1080P60FPS , 2160P30FPS

  - Output Video Format: YUY2, NV12, RGB

  - Recording Resolution and Max FPS:
           3840x2160 - NV12/30FPS;
           2560x1440 - NV12/60FPS, YUY/50FPS;
           1920x1080 - NV12/120FPS, YUY/60FPS, XRGB/30FPS;
           1280x720 - NV12/60FPS, YUY/60FPS, XRGB/60FPS.

  - System Requirement: Windows 10/11 / Mac OS High Sierra 10.15 and above./Linux

System Requirements

* Windows® 10 / Windows 8.1 / Windows 7 (X86,X64), LinuxUbuntu14.04, OS X(10.10 or above)

* Computer: Intel® Core™ i5-4440 3.10 GHz + NVIDIA GeForce GTX 660 or above

* 4 GB RAM or above (Suggest 8 GB)

* One free PCIe port

* system compatible

Support 3rd party

OBS (Windows, Mac),XSplit (Windows),Wirecast (Windows, Mac),Adobe Flash Media Live Encoder (Windows),DirectShow (Windows),DirectSound (Windows)


Capture Resolution:

    ● Up to 4K30FPS

Computer recording:

    ● Windows 10 / Windows 8.1 / Windows 7 (x86, x64)

Linux Ubuntu 14.04
