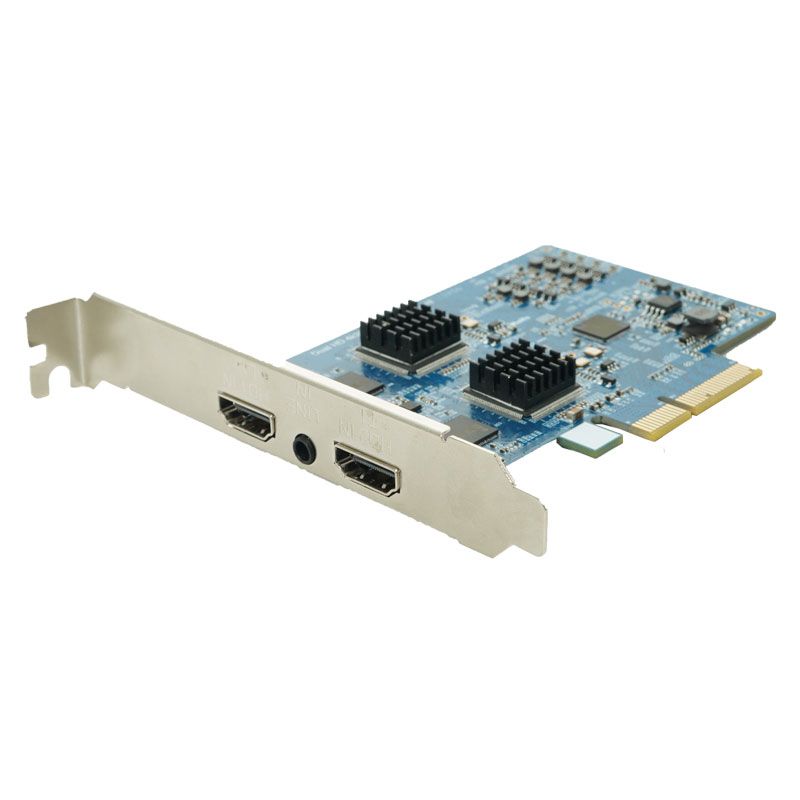

Dual HDMI 4K PCIe Video Capture Card 4K30 2ch HDMI input Game Live Streaming

Dual HDMI 4K PCIe Video Capture Card 4K30 2ch HDMI input Game Live Streaming

Model: CPH2



Products Description

Specification:

- Interface: PCIe X2

Support: Video Dual Input MAX 4K30Hz

Support: Audio Input: Dual HDMI 2.0 Standalone devies Audio/ 3.5mm Line In Standalone devies Audio

- Max. Dual Input : 2160P30FPS, 1440P120FPS, 1080P60FPS

- Max. Recording: 1080P60FPS , 2160P30FPS

- Output Video Format: YUY2, NV12, RGB

- Recording Resolution and Max FPS:
3840x2160 - NV12/30FPS;
2560x1440 - NV12/60FPS, YUY/50FPS;
1920x1080
- NV12/120FPS, YUY/60FPS, XRGB/30FPS;
1280x720 - NV12/60FPS, YUY/60FPS, XRGB/60FPS.

- System Requirement: Windows 10/11 / Linux


System Requirements

* Windows® 10 / Windows 8.1 / Windows 7 (X86,X64), LinuxUbuntu14.04, OS X(10.10 or above)

* Computer: Intel® Core™ i5-4440 3.10 GHz + NVIDIA GeForce GTX 660 or above

* 4 GB RAM or above (Suggest 8 GB)

* One free PCIe port

* system compatible

Support 3rd party

* OBS (Windows, Mac),XSplit (Windows),Wirecast (Windows, Mac),Adobe Flash Media Live Encoder (Windows),DirectShow (Windows),DirectSound (Windows)


Capture Resolution:

    ● up to 4K30FPS

Computer recording:

    ●Windows 10 / Windows 8.1 / Windows 7 (x86, x64)

 Linux Ubuntu 14.04
