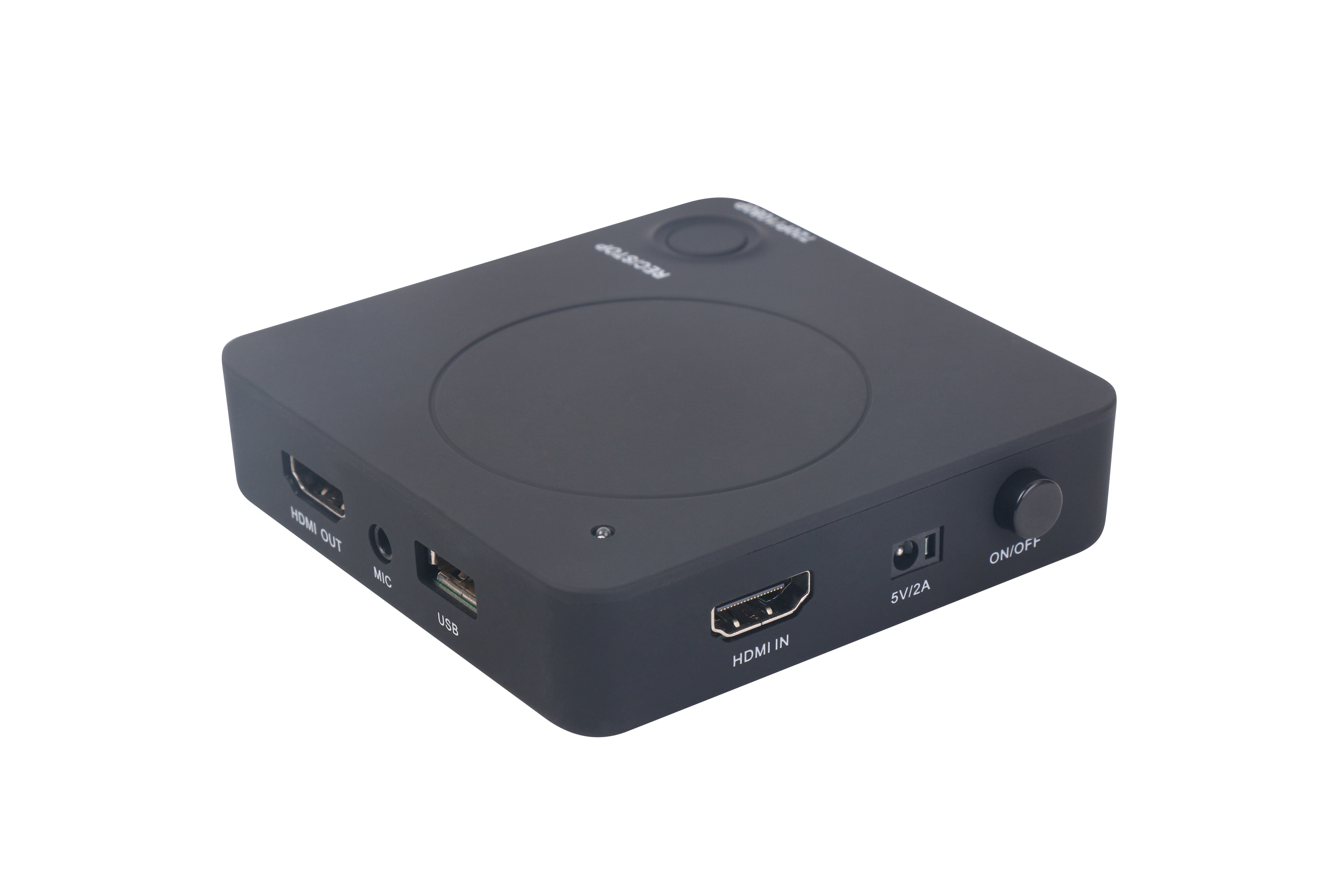

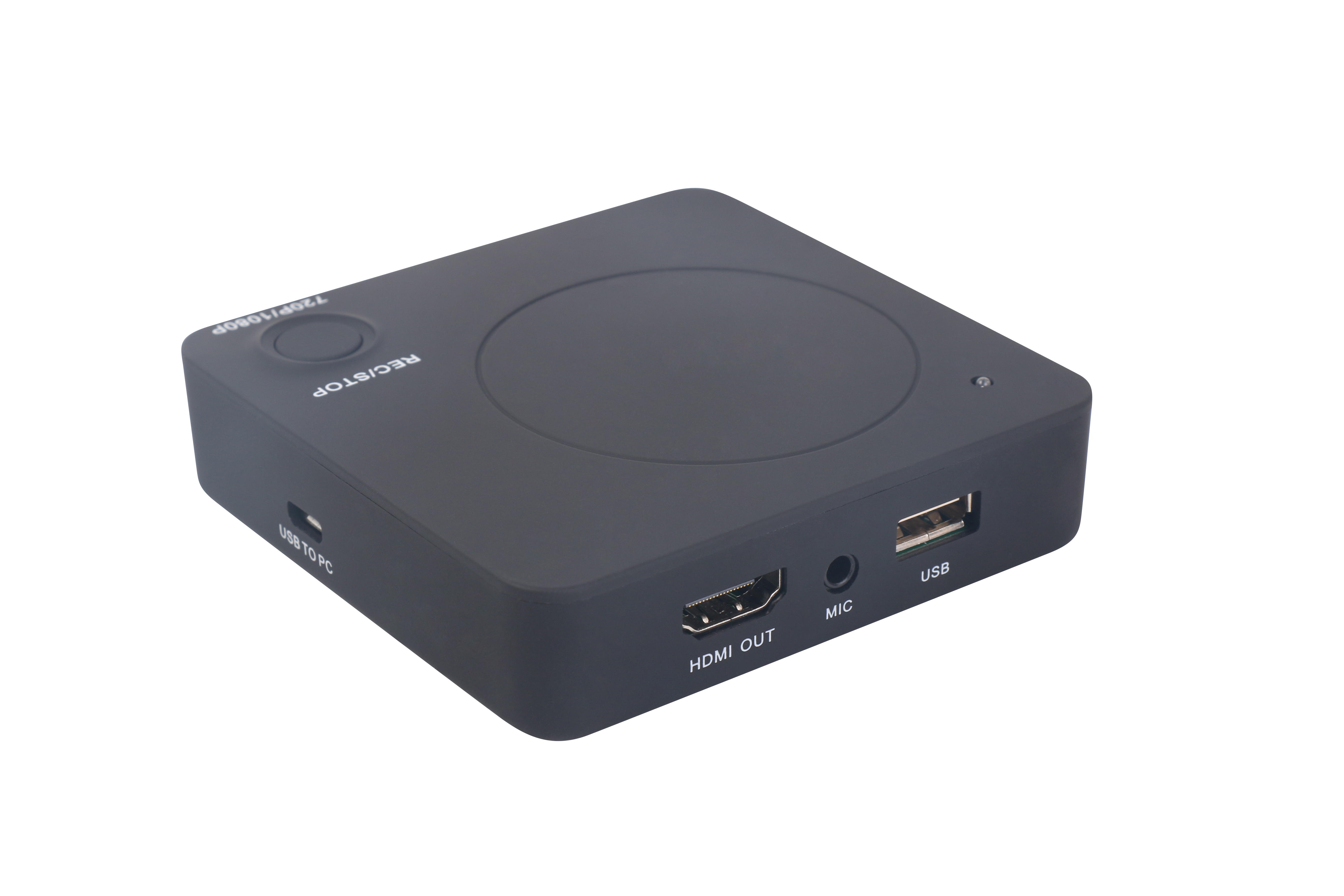

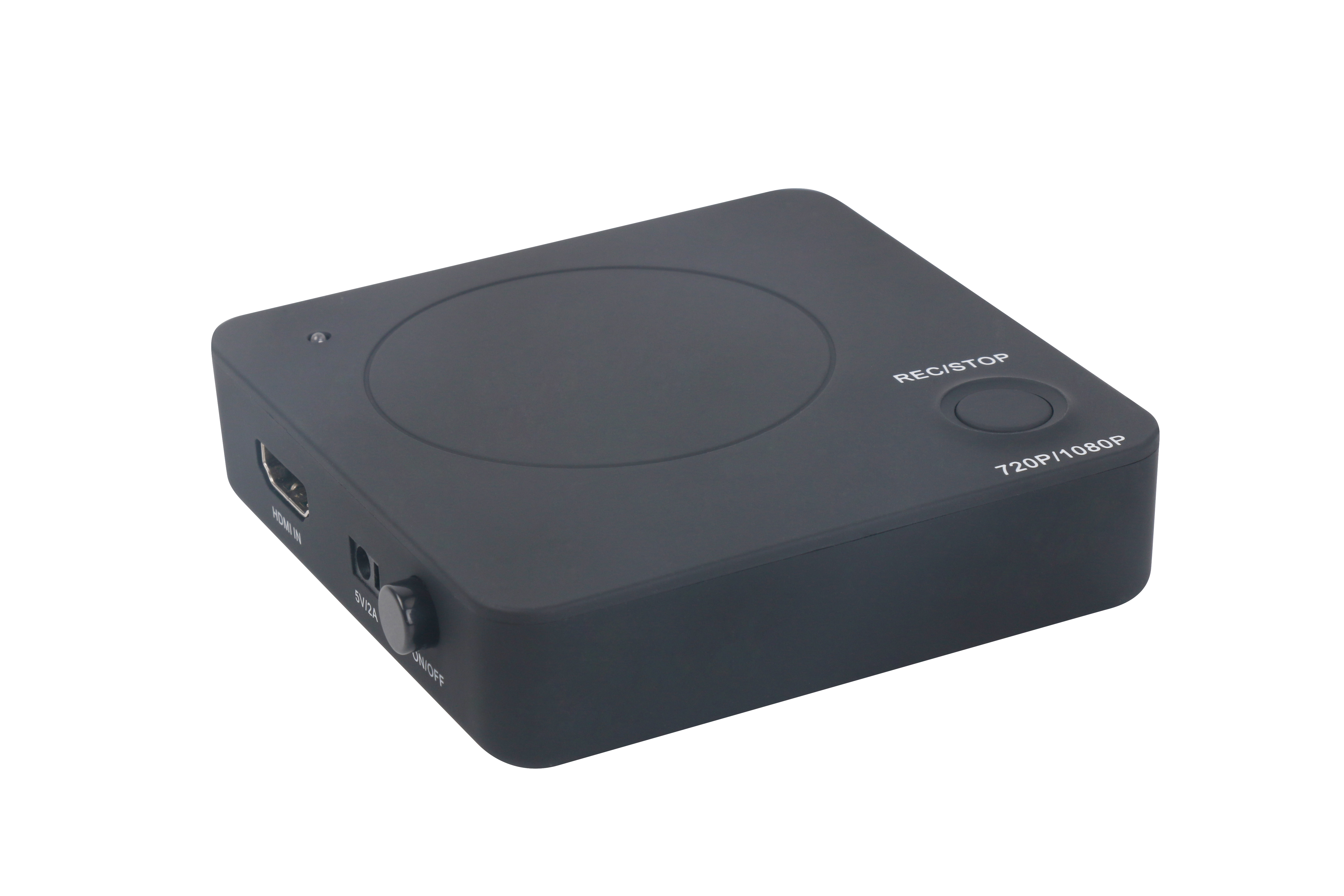

Products Description
Specification：
Input Signal: HDMI 4K60
Output Signal: HDMI MAX bypass 4K60
HDMI / Video input supports:
4K2K (3840x2160 60p 30p), 1920x1080 (60p, 50p, 25p, 24p,30p, 60i, 50i)
1360x768 (60p), 1280x1024 (60p), 1280x720 (60p), 1280x768 (60P)
1280x800 (60p), 1024x768 (60p),720x480 (60p, 60i, 50i)
640x480(60p), 720x576 (50p)
Record Resolution:
MAX : 1920x1080p60
Audio I/O Interface:
Mic(3.5mm Port)
USB 3.0 Storage: 1T USB FLASH&HDD 8T
Support:One Button Rec
Support:FAT32/NTFS/exFAT/MBR/SSD/GPT etc.
Adapter Voltage:Input 100~240V 50/60Hz, Output 12V/1A/Less than 12W
Support:UVC OBS/VLC
