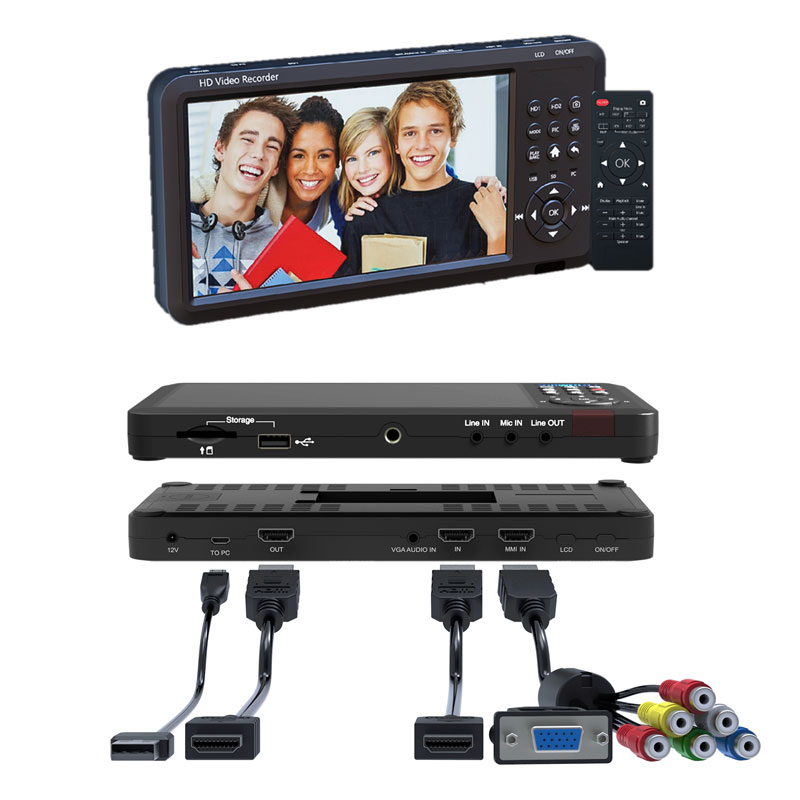

7”Panel Portable Video Recorder HDMI/VGA/YPbPr/AV/S-VIDEO
Products Description
Specification：
Input Signal: HDMI/VGA/Component(YPbPr)/Composite(AV)/S-VIDEO
Output Signal: HDMI MAX bypass 1080p60
SDI/HDMI/DVI/S-VIDEO/MMI Video input supports:
4K2K (3840x2160 30p), 1920x1080 (60p, 50p, 25p, 24p,30p, 60i, 50i)
1360x768 (60p), 1280x1024 (60p), 1280x720 (60p), 1280x768 (60P)
1280x800 (60p), 1024x768 (60p),720x480 (60p, 60i, 50i)
640x480(60p), 720x576 (50p),240p
Record Resolution:
1920x1080(60p),1280x720(60p),1024x768(60p),1280x800(60p)
I/O Interface:
Line in/Line out/Mic(3.5mm Port)
Support: EXT. Dual SONY NP-F970 Battery
Storage: 1T USB FLASH&1T SD CARD&HDD 8T
Support:OSD/Schedule/Playback/Snapshot/Remote Control
Support:FAT32/NTFS/exFAT/MBR/SSD/GPT etc.
Adapter Voltage:Input 100~240V 50/60Hz, Output 12V/1A/Less than 12W
Support:UVC OBS/VLC
Input Signal: HDMI/VGA/Component(YPbPr)/Composite(AV)/S-VIDEO
Output Signal: HDMI MAX bypass 1080p60
SDI/HDMI/DVI/S-VIDEO/MMI Video input supports:
4K2K (3840x2160 30p), 1920x1080 (60p, 50p, 25p, 24p,30p, 60i, 50i)
1360x768 (60p), 1280x1024 (60p), 1280x720 (60p), 1280x768 (60P)
1280x800 (60p), 1024x768 (60p),720x480 (60p, 60i, 50i)
640x480(60p), 720x576 (50p),240p
Record Resolution:
1920x1080(60p),1280x720(60p),1024x768(60p),1280x800(60p)
I/O Interface:
Line in/Line out/Mic(3.5mm Port)
Support: EXT. Dual SONY NP-F970 Battery
Storage: 1T USB FLASH&1T SD CARD&HDD 8T
Support:OSD/Schedule/Playback/Snapshot/Remote Control
Support:FAT32/NTFS/exFAT/MBR/SSD/GPT etc.
Adapter Voltage:Input 100~240V 50/60Hz, Output 12V/1A/Less than 12W
Support:UVC OBS/VLC
