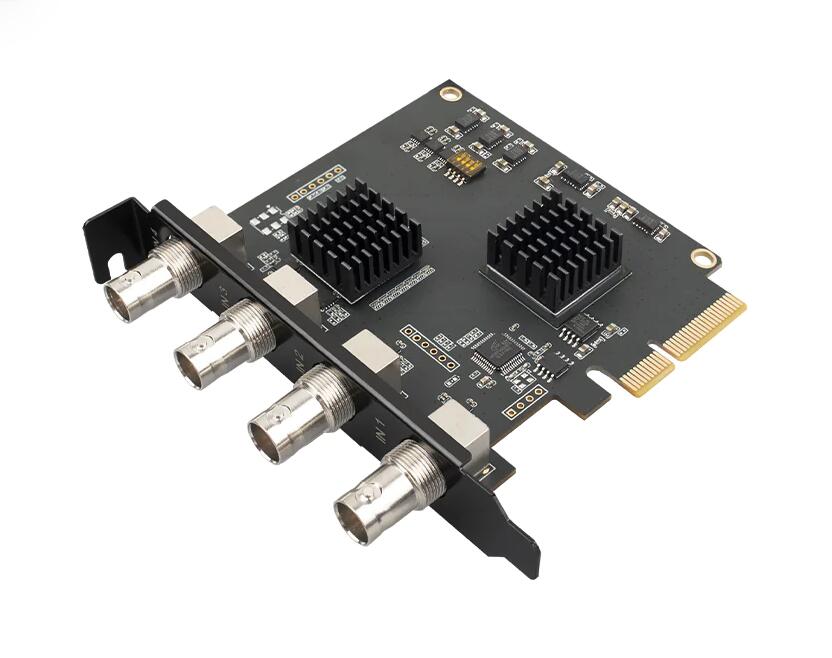

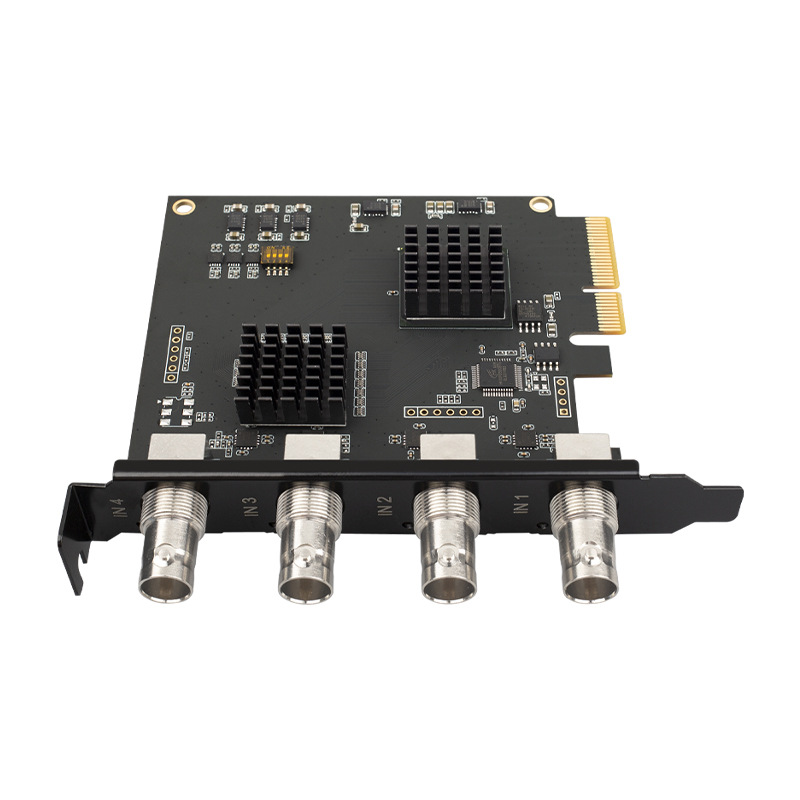

4CH SDI PCIe Capture Card 4 Channel Video Capture Card 1080P 60FPS

4CH SDI PCIe Capture Card 4 Channel Video Capture Card 1080P 60FPS

Model: CPS4



Products Description

Specification


Host interface: PCIe 2.0 X4

Transmission bandwidth: Up to 20Gbps

Input interface: SDI*4

Compatible development interface: Directsound, Directshow (Windows)

Output color space: YUY2

Capture resolution: Resolution within 1080p

De-interlacing: Hardware de-interlacing + 3D noise reduction algorithm

System requirements: Windows XP/7/8.1/10 32bit/64bit

Compatible software: Windows Media Encoder, Adobe Flash Media Live, Encoder, Real Producer Plus,

VLC, Wirecast VMIX, and etc.
Size: 100*86mm

Operating temperature: 0-85 ℃


Features:

* Support 4-channel simultaneous capture and broadcast.

* Professional video processing technologies: pristine video capture and motion adaptive de-interlacing.

* Compliant with Directshow and Directsound.

* Multi-card support: With multiple capture cards on one computer for more professional use.

* Wide application: Ideal for game/teaching/surgical live broadcast, video conference, and various high-definition

 video capture.
