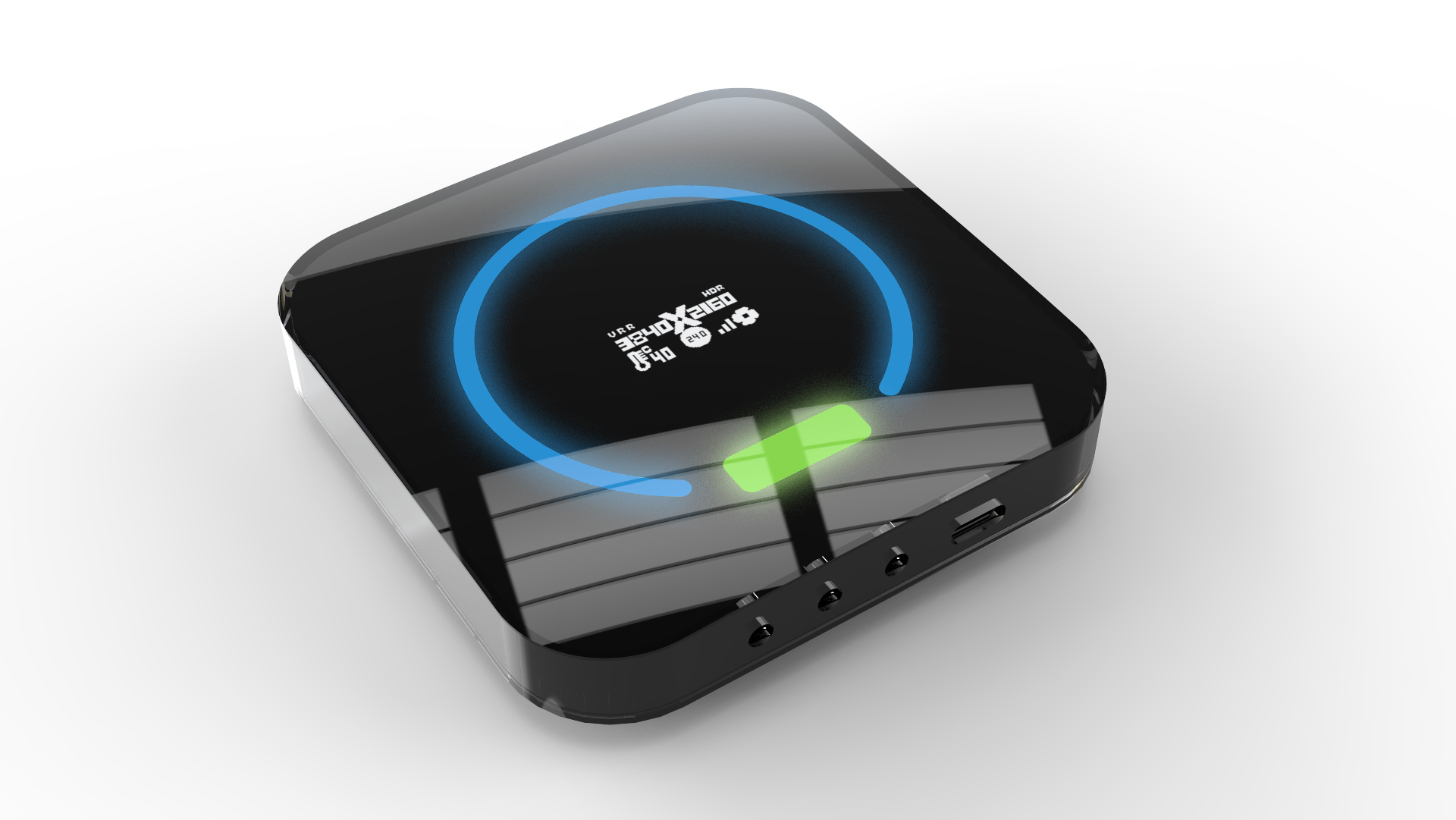

4K60Hz Recording and Streaming HDMI Video Capture Card HDR/VRR/SDR

4K60Hz Recording and Streaming HDMI Video Capture Card HDR/VRR/SDR

Model: CHU335





Products Description

Specification:

Interface: USB 3.2 (Gen 1) Type-C (plug and play, UVC)

Support: Video Input / Output (Pass-Through): HDMI 2.0

Support: Audio Input: HDMI 2.0/ 3.5mm Line In/MIC 3.5mm / AUX (CTIA 4-pole)or (TRS 3-pole)or(OMTP 4-pole)

- Max. HDR Pass-Through Resolution: 2160p60 HDR, 1440p120, 1080p240

- Max. VRR Pass-Through Resolution: 3840 x 2160 - VRR(48 - 60 Hz), 1920 x 1080 - VRR(48 - 120 Hz).

  (Note: YCbCr 420 VRR is not supported. Such as XBOX X1, please tick Allow YCC 4:2:2 setting to allow VRR. )

- Max Record Resolution:

        3840 x 2160 - 60fps/MJPG, 30fps/NV12/I420.

        2560 x 1440 - 60fps/NV12/I420/MJPG, 50fps/YUY2.

        2560 x 1080 - 60fps/NV12/I420/YUY2/MJPG.

        1920 x 1080 - 120fps/NV12, 60fps/I420/YUY2/RGB24/MJPG.

        1280 x 720 - 60fps/NV12/I420/YUY2/RGB24/MJPG.

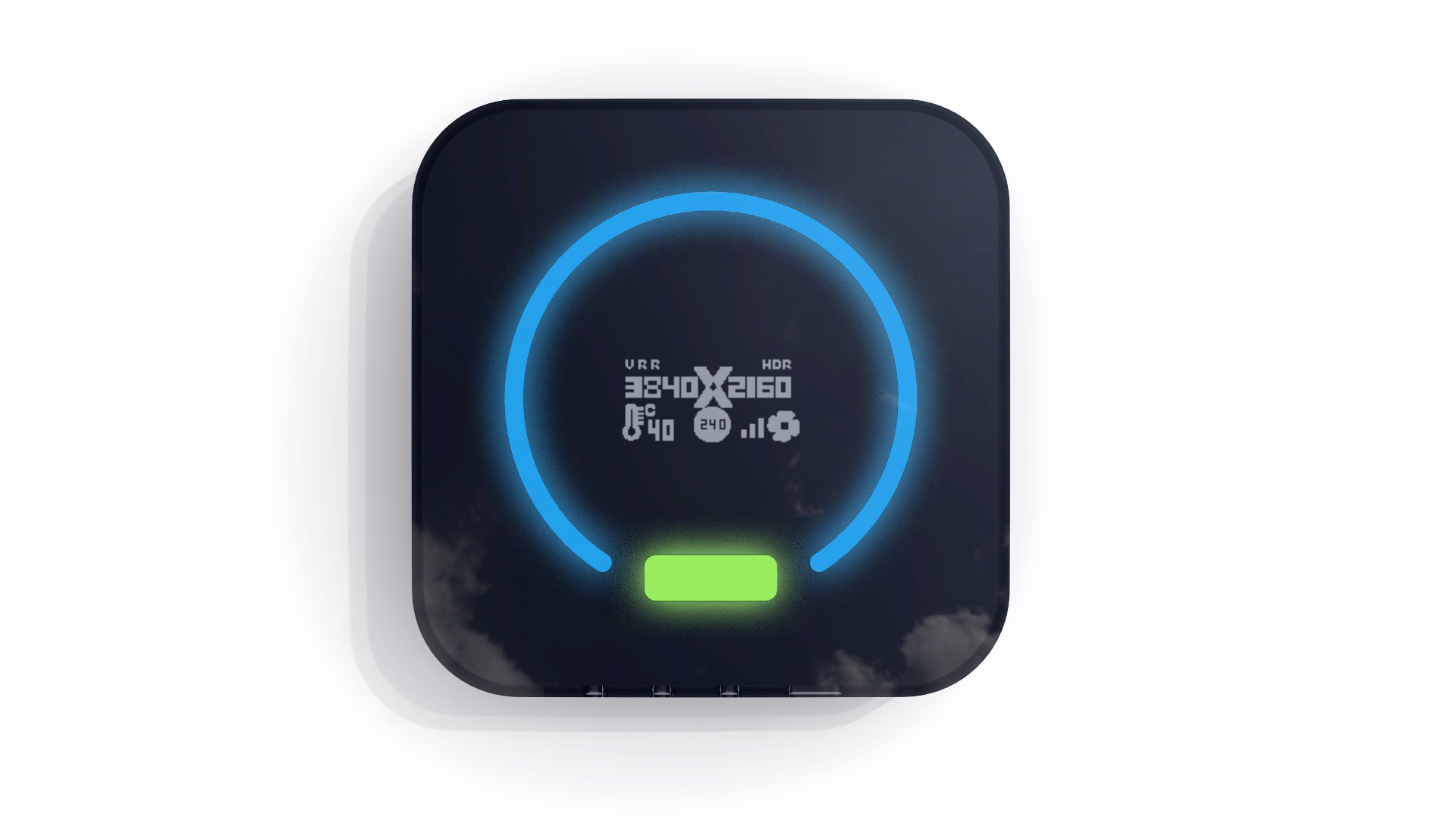

- TFT 1.47" Panel display (HDR/VRR/Temperature/Resolution/Computer Connection 2.0 or 3.0)

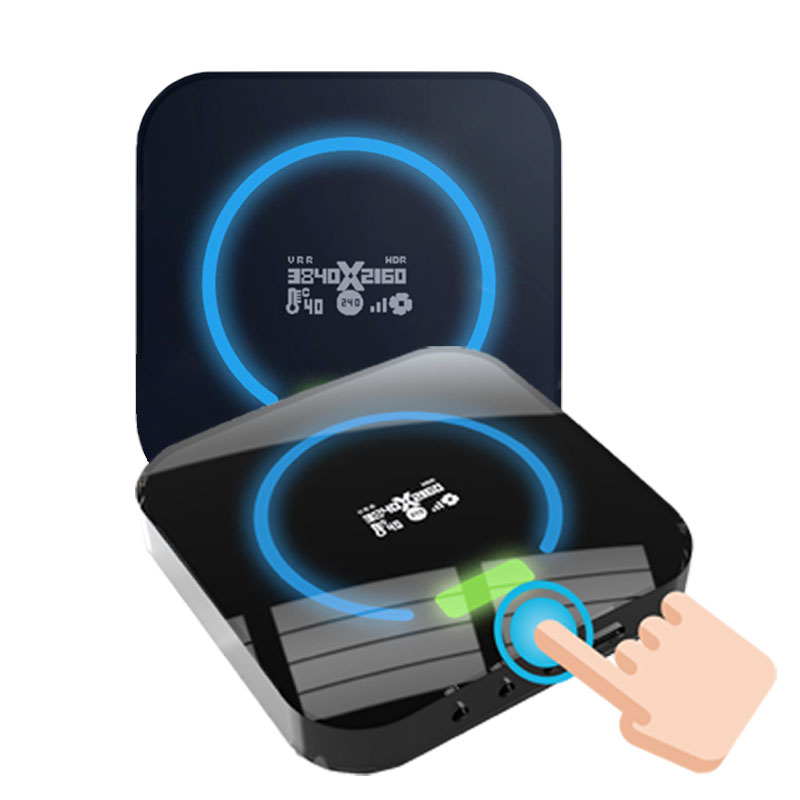

- LED status indicator/touch switch (on/of screen and LED)

- System:

Windows 10 x64 / 11 x64,USB 3.2 (Gen 1) UVC Port x1

Desktop: Intel Core i5-6XXX or above, NVIDIA GeForce GTX 1060 or above.

Laptop: Intel Core i7-7700HQ or above, NVIDIA GeForce GTX1050 Ti or above.

8 GB RAM recommended.

macOS 11 / 12, USB 3.2 (Gen 1) UVC Port x1

Apple M1 or Intel i7 quad-core or above, Radeon Pro 555 with 2 GB of VRAM, 16 GB of 2400 MHz DDR4 memory.
