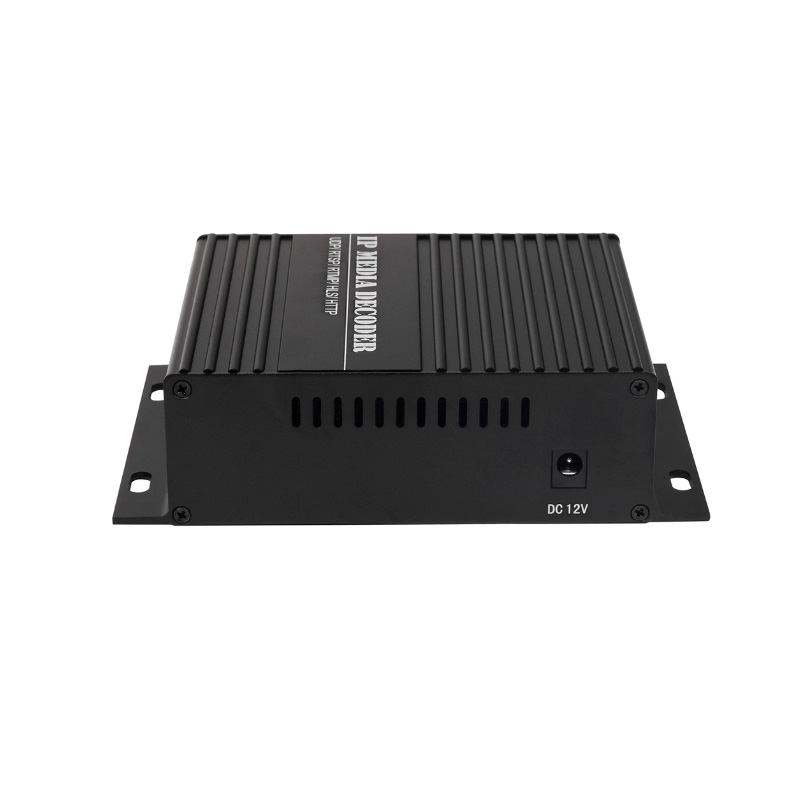

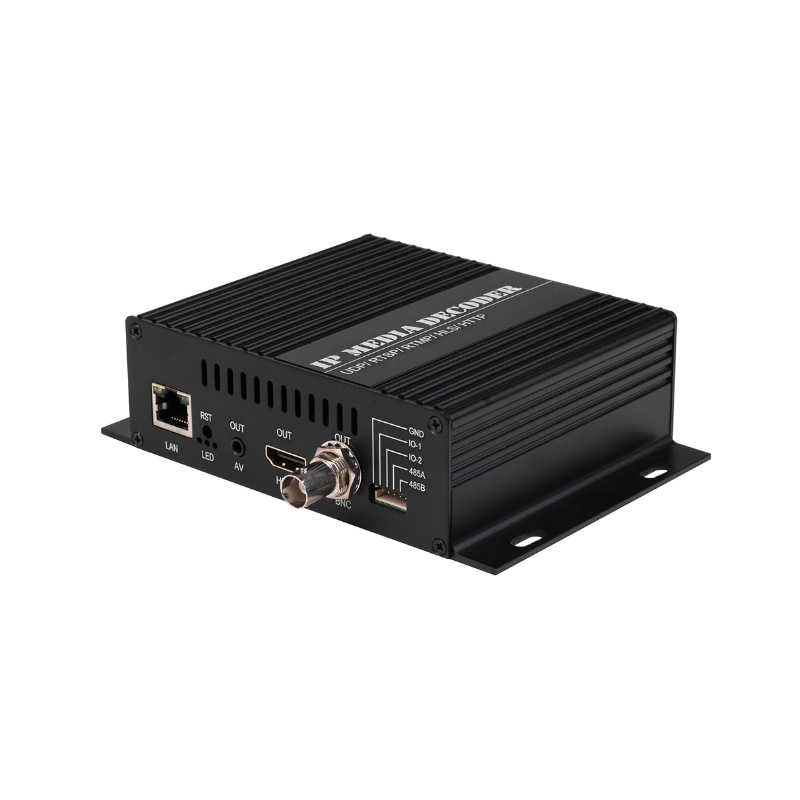

HEVC& AVC H.265 HDMI BNC AV 4K IP Video Decoder

HEVC& AVC H.265 HDMI BNC AV 4K IP Video Decoder

Model: DHS2460



Products Description

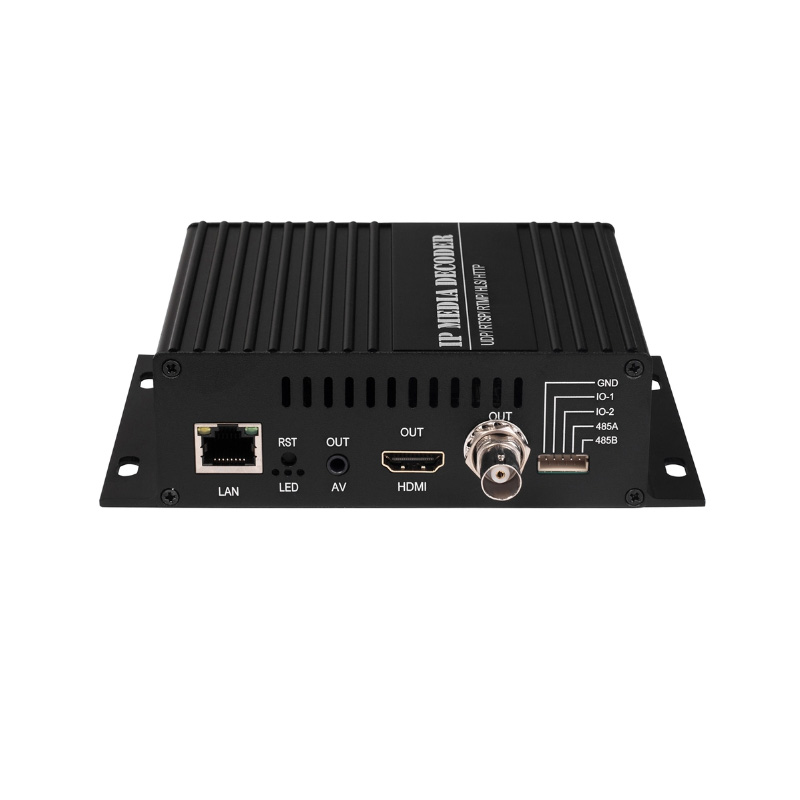

1port IP input, 1port HDMI& 1port BNC/CVBS/AV/AUDIO output, 1ch audio output.

Completely support 4K 60, 1080p 60 (No fluctuating)

Support H.264/ H.265 RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP, MPEG2, MPEG4 decode.


Features:

  1. Embedded hardware

  2. Support 4 screens at the same time

  3. Support RS485 output,IO Input/Output

  4. Control multi encoder based on one computer

  5. H.264/ H.265, RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP/P2P input

  6. Output: HDMI+ BNC+ AV

  7. Up to 4K 60 FPS output

  8. Support rtsp/ http/ udp/ rtmp/ hls/ rtp/SRT

  9. Multi-IP In (1. 4).

  10. Output Up to HDMI 2.0

  11. low consumption

Specification

Model



DHS2460 HEVC & AVC HDMI+ BNC 4K decoder

Output

1×HDMIBNC, 1×audio, 1×AV

Input

 IP( RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP), MPEG2, MPEG4

Video

Output

Resolution

up to 4K 60 (NO fluctuating)



Decoding

H.264/H.265/MPEG-1/MPEG-2/MPEG-4/VP8/VP9/AVS/AVS+

IP IN

1, 4

Protocol

rtsp/ http/ udp/ rtmp/ hls/ rtp/P2P/SRT

AUDIO

Output

1×3.5mm independent audio/ HDMI embedded audio

Format

AAC/MP3/G.711

IP

Input

1× RJ 100M/1000M, TCP, UDP

System

Configure

IE, remote upgrade


Power

5V~2A

Consumption

5W

Size

119mm x 102mm x 42mm

working temperature

-20+ 60

working humidity

<90%

Weight

0.3KG
