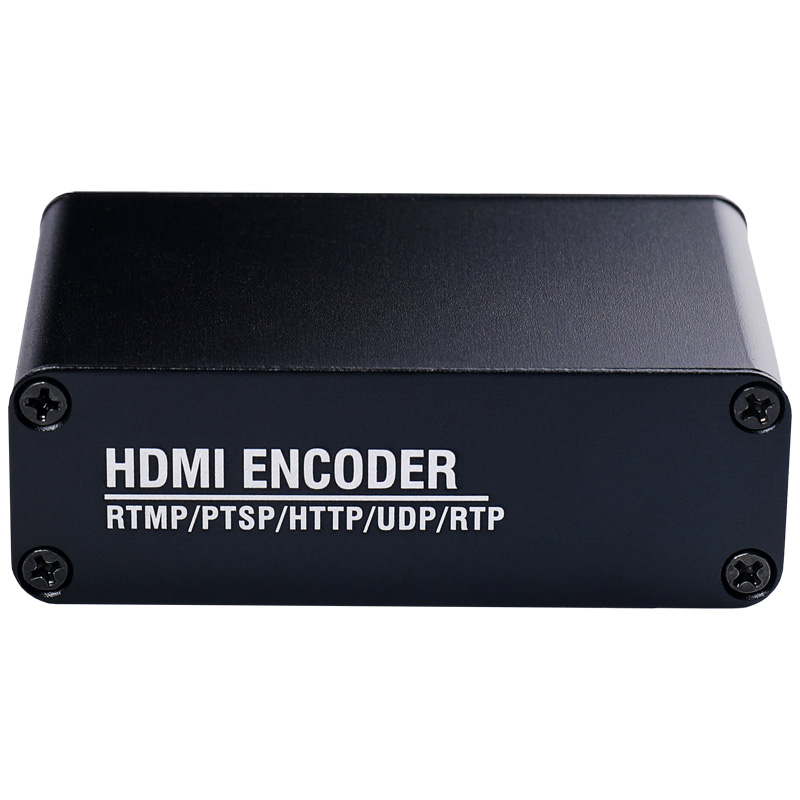

H.265/H.264 HDMI to IP Encoder 1080P Video Encoder Live Streaming
Products Description

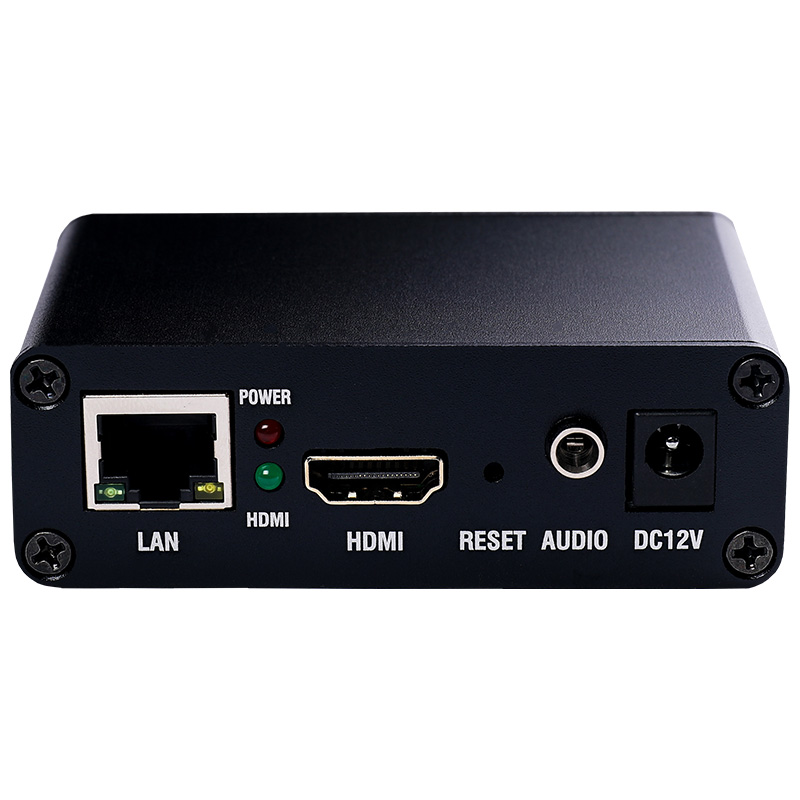

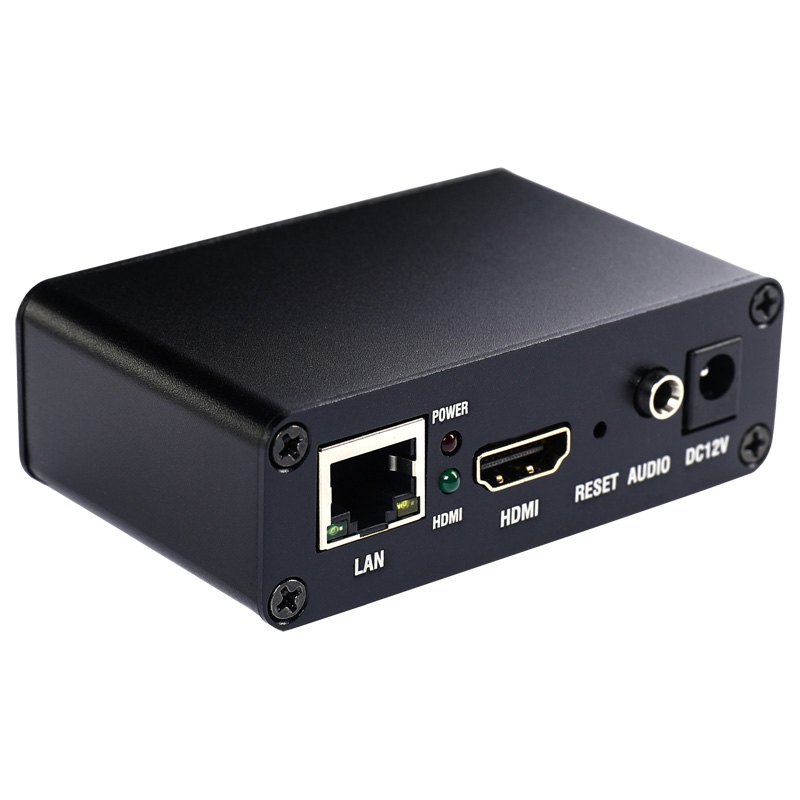

This HDMI H.265 video encoder is equipped with 1 channel HDMI and 1 channels stereo audio(3.5mm)
input supporting HEVC /H.265 or H.264 /AVC high profile /main profile /baseline profile video coding format and AAC or MP3 audio coding format and two video streaming output simultaneously, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, ONVIF, HLS, FLV. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Twitter, Facebook, etc.
Features:
1.Embedded HiLinux System, stable and effective.
2.Support H.264/265 /AVC baseline /main /high profile encoding
3.Support HDMI embedded audio or external audio optional from output video streaming
4.Support image, logo, text parameter settings on the output video streaming
5.Support English WEB operating interface and language customizable
6.Support output video streaming resolution setting
7. Support SDK and API for secondary development
8. Less than 200ms time delay for core chip processing
9. Network interface full-duplex mode with 1000M speed
10.Support HDCP and HD blue-ray
11.A wide area network remote management (Web control panel)
12.A click to restore the default configuration
13.Stable and effective, support 7 x 24h working time
Specifications:
Specifications | Parameter | |
Audio and video input | Video input | 1 channels HDMI |
Audio input | 1 channel HDMI built-in audio | |
Audio input | 1 channel 3.5mm audio | |
Video coding | Coding type | H.265/H.264 |
Coded frame rate | 5-30 Adjustable | |
Key frame interval (frame) | 5-300 Adjustable | |
Resolution Max | 1920*1080P30 | |
Bit rate (kbit) | 32-32000 Adjustable | |
Input resolution | 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180 | |
Coding resolution | Same as input | |
Code stream control | CBR/VBR Optional | |
H.264 level | baseline profile/main profile/high profile | |
flow | Support RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/SRT /UDP Multicast/RTP Multicast | |
Audio coding | Audio input | HDMI/analog /Optional |
Coded sample rate | 44100/48000 Optional | |
Coding method | AAC/AAC+/AAC++/MP3/MP2/AC3 Optional | |
Coding bit rate | AAC:48000-320000 Adjustable/AAC+:24000-48000 Adjustable/ AAC++:12000-32000 Adjustable/MP3:64000-320000 Adjustable/ MP2: 64000-320000 Adjustable/ AC3:40000-640000 Adjustable | |
Digital volume | -50~50Adjustable | |
RTSP stream use G711A code | Disable/enable/enable and resampling is 8k optional | |
OSD | transparency | 0-128 Adjustable |
Types | Text/picture/scroll text | |
region | 4 areas available | |
X coordinate | 0-1920 | |
Y coordinate | 0-1080 | |
LOGO | Upload 4 LOGO options | |
font size | 8-72 | |
Background color | Transparent / white / black | |
font color | RGB color optional | |
Others | Network | 1000 Mbit/s full-duplex |
Configuration management | Configuration management through WEB | |
ONVIF | Support ONVIF to browsing videos | |
Power | 12V/DC,2A | |
Power consumption | <5W | |
Operating temperature | -20℃+60℃ | |
Working humidity | <90%,No condensation | |
Size | 96X79X54mm | |
Weight | 638g | |
