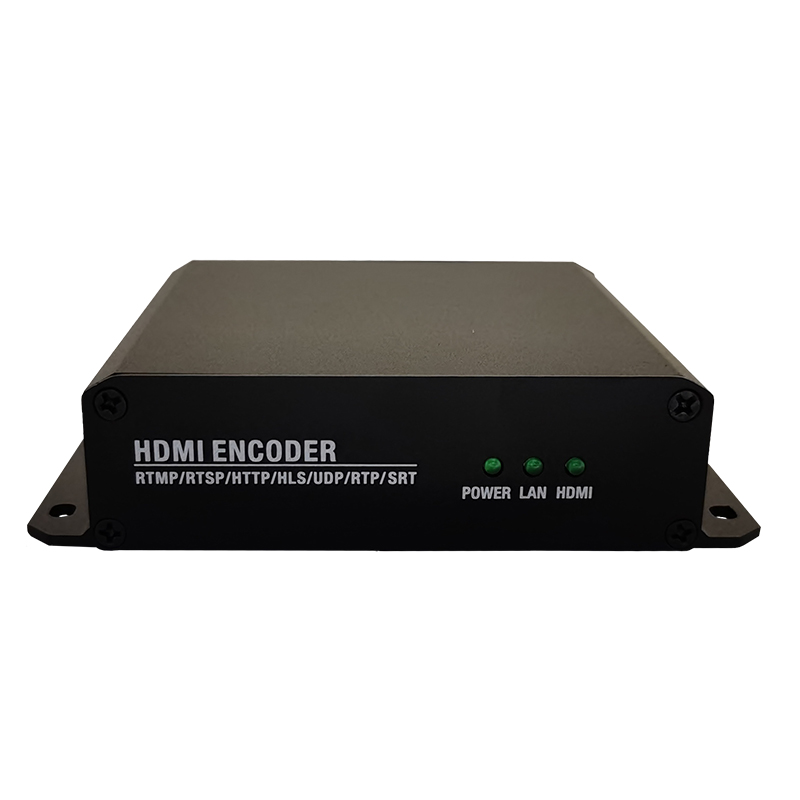

H.265/H.264 HDMI Encoder 1080P H.265 Video Encoder
Products Description
This HDMI h.265 video encoder is equipped with 1 channel HDMI and 1 channels stereo audio(3.5mm) input supporting HEVC /H.265 or H.264 /AVC high profile /main profile /baseline profile video coding format and AAC or MP3 audio coding format and four video streamings output simultaneously, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, ONVIF, HLS, FLV. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.
Features:
1. Embedded HiLinux System, stable and effective.
2. Support H.264/265 /AVC baseline /main /high profile encoding
3. Support HDMI embedded audio or external audio optional from output video streaming
4. Support image, logo, text parameter settings on the output video streamings
5. Support English WEB operating interface and language customizable
6. Support output video streaming resolution setting
7. Support SDK and API for secondary development
8. Less than 200ms time delay for core chip processing
9. Network interface full-duplex mode with 1000M speed
10.Support HDCP and HD blue-ray
11. A wide area network remote management (Web control panel)
12. A click to restore the default configuration
13. Stable and effective, support 7 x 24h working time
Specifications:
Specifications | Parameter | |
Audio and video input | Video input | 1 channels HDMI |
Audio input | 1 channel HDMI built-in audio | |
Audio input | 1 channel 3.5mm audio | |
Video coding | Coding type | H.265/H.264 |
Coded frame rate | 5-60 Adjustable | |
Key frame interval (frame) | 5-300 Adjustable | |
Bit rate (kbit) | 32-32000 Adjustable | |
Input resolution | 1920x1200/1920x1080/1680x1056/1280x720/1024x768/1024x576/850x480/720x576/720x540/720x480/ | |
Coding resolution | 1920x1200/1920x1080/1680x1056/1280x720/1024x768/1024x576/850x480/720x576/720x540/720x480/ | |
Code stream control | CBR/VBR Optional | |
flow | RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/UDP Multicast/RTP Multicast | |
Audio coding | Audio input | Digital / analog / hybrid |
Coded sample rate | 44100/48000 Optional | |
Coding method | AAC/AAC+/AAC++/MP3/MP2/AC3 Optional | |
Coding bit rate | AAC:48000-256000 Adjustable/AAC+:24000-48000 Adjustable/ AAC++:12000-32000 Adjustable/MP3:64000-320000 Adjustable/ MP2: 64000-320000 Adjustable/ AC3:40000-640000 Adjustable | |
Digital volume | -50~50Adjustable | |
RTSP stream use G711A code | Disable/enable optional | |
OSD | transparency | 0-128 Adjustable |
Types | Text/picture/scroll text | |
region | 4 areas available | |
X coordinate | 0-1920 | |
Y coordinate | 0-1080 | |
LOGO | Upload 16 LOGO options | |
font size | 8-72 | |
Background color | Transparent / white / black | |
font color | RGB color optional | |
Others | Network | 1000 Mbit/s full-duplex |
Configuration management | Configuration management through WEB | |
ONVIF | Support ONVIF to browsing videos | |
Power | 12V/DC,2A | |
Power consumption | <5W | |
Operating temperature | -20℃+60℃ | |
Working humidity | <90%,No condensation | |
Size | 96X79X54mm | |
Weight | 638g | |
Packaging content:
1. H.265 HDMI encoder 1080P x1
2. User Manual x1
3. Power Adapter x1
