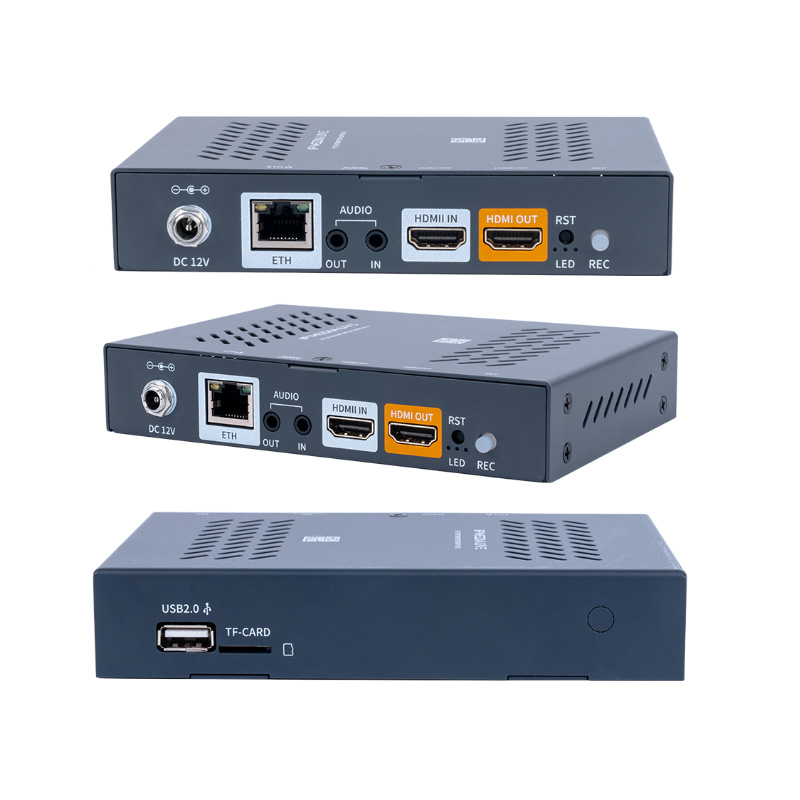

H.265 4streams HDMI Video Encoder with loop out USB TF card recoding

H.265 4streams HDMI Video Encoder with loop out USB TF card recoding

Model: EHL310



Products Description

Product Description

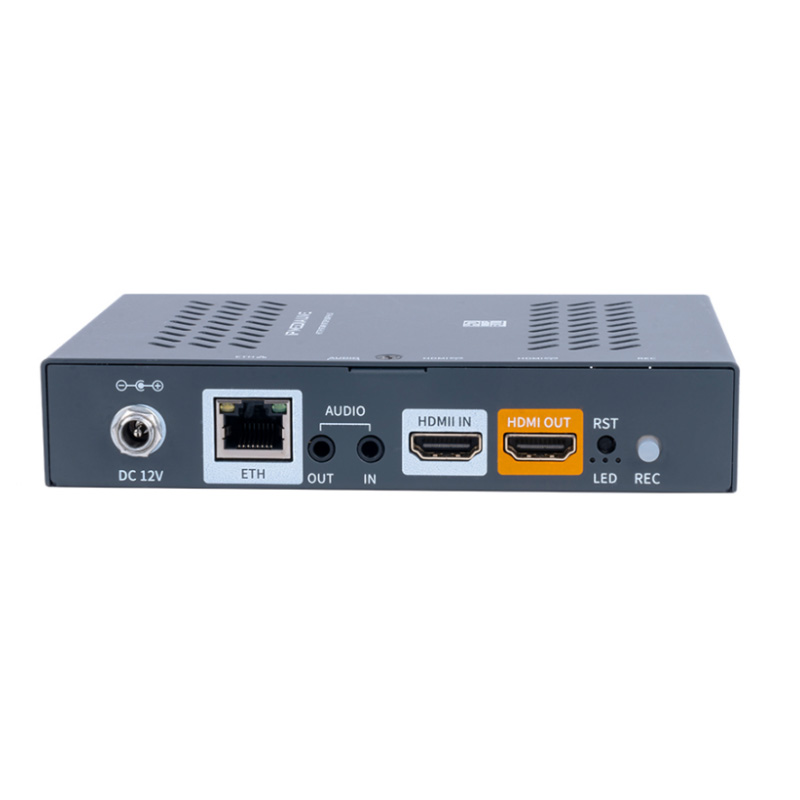

1.1 channel HDMI input,1 channel HDMI loop output, 1 channel Audio output

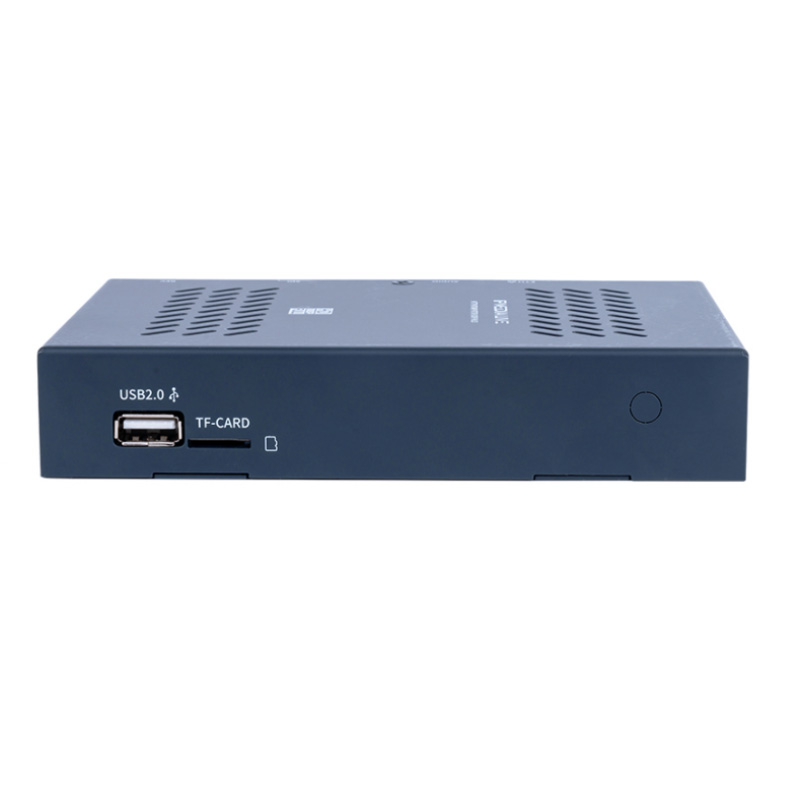

2. Support USB/TF Card recordingmaximum 128G

3. 4 streams outputSRT,RTMP,HTTP UDP,HLS,RTSP etc)

4. H.265/ H.264 format, Audio: AAC, G.711 format.

5. 4 streams1*1920*1080+2 channels 1280*720+720*576

6,Support SRT / HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / UDP / ONVIF / HLS/ protocols.

7.Red indicator: power. Yellow: Streaming status. Green: Network


Key features

1. HDMI to Ethernet(100M/1000M).

2. Resolution: up to 1920x1080p 60 FPS

3. Supports WINDOWS ,LINUX,MAC OS

4. Support SRT/ RTSP/ RTP/ RTMP/ RTMPS/HTTP/ ONVIF/ HLS / UDP Unicast and Multicast protocol,

5. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )

6. Coding Standard: H.264 Base line profile/ main profile/high profile, H.265 main profile.

7. Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K etc

8. Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S

9. Video packaging: A mode: FFMPEG, B mode: VLC

10. Transmission: TCP, UDP, 100M/ 1000M (RJ45 Duplex network port)

11. Support WEB access in English, passwords change, WAN remote management (WEB)

12. Support Text/ image OSD, images superimposing.

13. Adjustable coordinates: 1920x1080; the font size: 8 to 72.

14. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.

15. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

16. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.

17. Support encoding without video signal;

18. Take effect immediately when applied the settings, don’t need to restart.

19. Support one-key recovery to default setting.

20. Low power consumption design,



Specification

Product model

H.265 HDMI Encoder

Input

1Channel HDMI input, 1 Channel line in audio

Output

1 channel IP signal output,HDMI loop out

USB/TF card

128G(maximum )

Video

Input resolution

Up to 1920x1080p 60FPS

Coding standard

H.265/ H.264

Coding level

H.265 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE

Encoded size

640*360~1920*1080 60fpsMaximum

Video bit rate

Rate control: CBR/VBR   16KBIT/S~12MBIT/S

Video frame rate

5- 60 fps

OSD

Text, Image

Audio

Input selection

1 channel HDMI, 1 channel 3.5MM line-in audio

Audio coding

AAC/G.711

Audio bit rate

64Kb/s~384Kb/s

Sampling rate

3200044100,48000 etc

IP output

1 RJ 100M / 1000M adaptive Ethernet port, 4-stream( H.265/264 TS stream)

System

Network protocol

SRT,HTTP, RTSP, RTMP,RTMPS, ONVIF, HLS, UDP ,multicast, unicast

Configuration management

User interface, remote upgrade,multi-one management platform


Power supply

12V~2A

power consumption

5W

Size

150mm * 102mm * 28mm(L*W*H)

Operating temperature

-20+ 60

Working humidity

<90%Non-condensing

USB

Support

Weight

0.8KG
