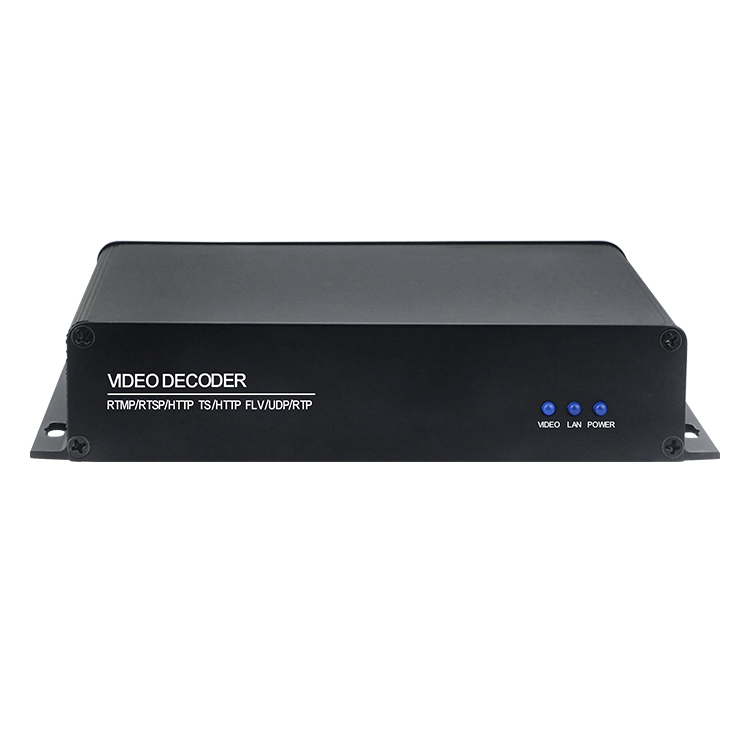

H.265 4K HDMI VGA CVBS Video Decoder IP Decoder

H.265 4K HDMI VGA CVBS Video Decoder IP Decoder

Model: DHC1430



Products Description

Introduce

H.265 4K HDMI VGA CVBS Video Decoder can receive the RTMP RTSP UDP HTTP HLS FLV stream from our HDMI/VGA/SDI encoder or media server,and output HDMI, VGA, CVBS and L/R stereo audio. Its high integration and cost-effective design make this device widely used in variety of field such as advertisement display,CCTV, live streaming broadcast.

Feature

1.Embedded HiLinux System, stable and effective,7 x 24h working time.

2. Support RTSP, HTTP, UDP / RTP, RTMP, HLS, FLV streaming decoding.

3. Support with English control panel & language customizable.

4. Support H.264 baseline /main /high profile decoding.

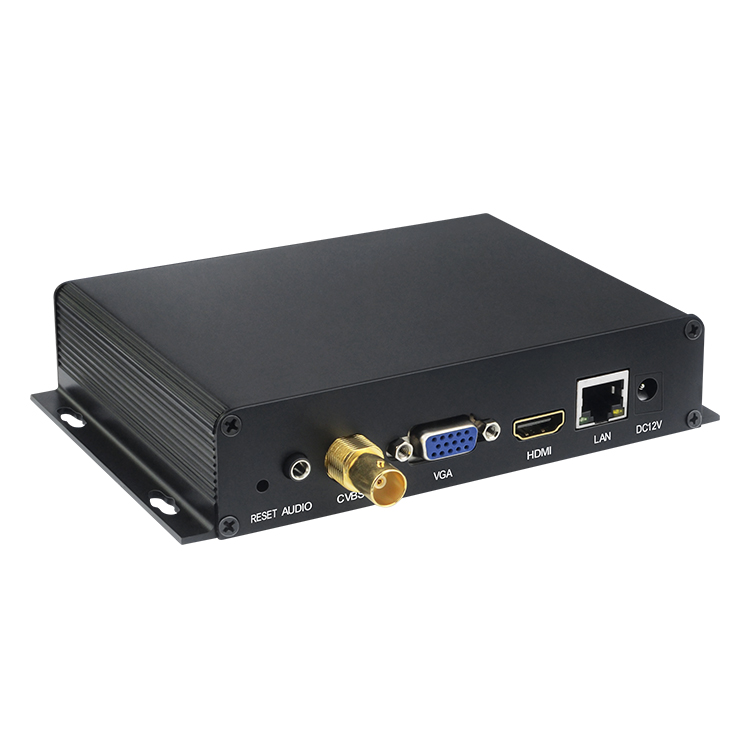

5. 1 channel HDMI(Audio Build-in) + 1 channel VGA + 1 channel RCA/CVBS + 3.5mm L/R

audio output.

6. Support multi video streams decoding and switch the channel.

7. Support output video resolution setting.

Specification



Input

TS Protocols

RTSP/HTTP TS/HTTP FLV/RTMP/UDP

Private

HTTP PTE





Video Decoding

Video Encoding Performance

H.265 main profile

H.264 baseline/main/high profile L4.2

MJPEG/JPEG baseline

FPS

1-60

Bitrate(kbps)

32-32000

Resolution

Max 3840*2160@30fps/1080P@60fps



Audio Decoding

Type

G711A/G711U/AAC/AAC+/AAC++/AC3/MP2/MP3

Audio Channels

L/R Stereo

Sample rates

8000/11250/22500/44100/48000Hz





Video output

HDMI/VGA

2160P@30/1080P@60/1080P@50/1080I@50

1080P30/1080P25/720P60/720P50/576P50/480P60etc.

CVBS

PAL 720*576/NTSC 720*480

CSC

Brightness, Contrast,Hue,Saturation

Audio Output

HDMI

48KHz L/R

3.5MM

L/R







Others

Ethernet Ports

1000 Mbit/s full-duplex

Admin page

HTTP WEB

Power

12V 1A<5W

Operating temperature

-20+80

Relative Humidity

5% to 90% non-condensing

Dimension

155*120*30

Weight

260g
