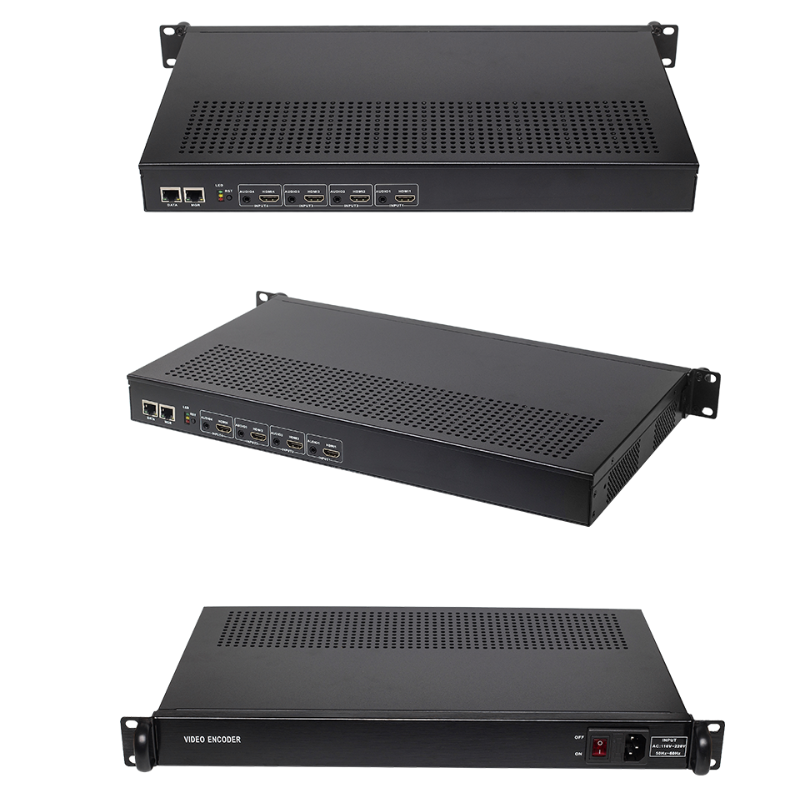

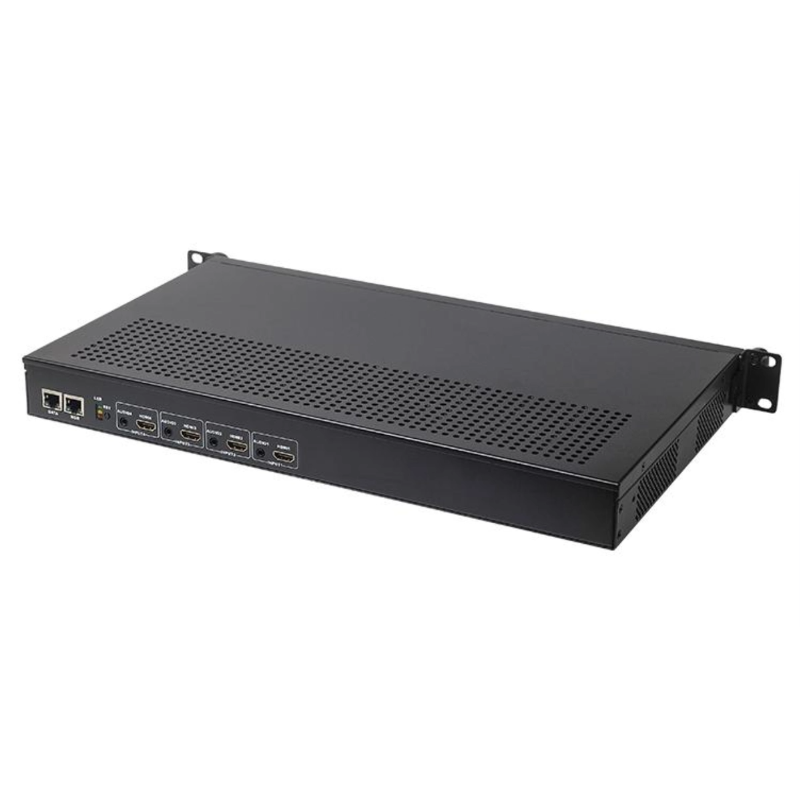

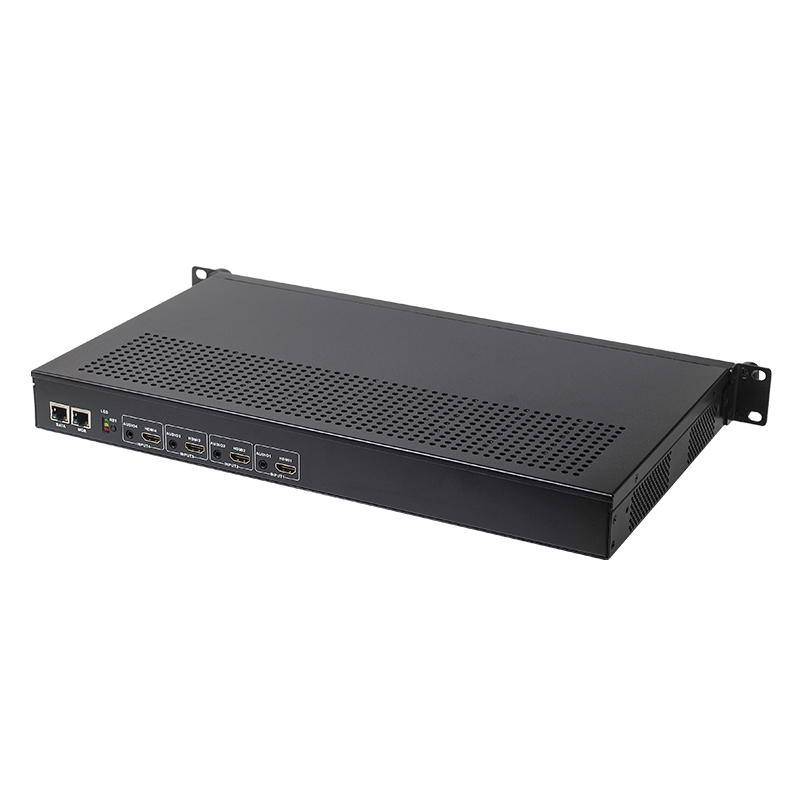

1U Rack Dual Ethernet 4CH HDMI Video Encoder H.264 1080P

1U Rack Dual Ethernet 4CH HDMI Video Encoder H.264 1080P

Model: EH440U





Products Description

This 4 channel HDMI H.264 video encoder is equipped with 4 channels HDMI input and 4 channels stereo

audio(3.5mm) input and dual streams output H.264 /AVC format, AAC ,G.711 or MP3 audio coding format,

which is streaming by HTTP, RTSP, UDP, RTP, RTMP, ONVIF, HLS, HLS protocols. Its high integration and

cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel

IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live

broadcast platform, such as YouTube, Twitter, Facebook, etc.


Features

1.Resolution:1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customization available)

2.Support RTSP/ TCP/ RTMP/ HTTP/ ONVIF/ UDP unicast and multicast protocol

3.Support Main TS stream and the sub TS stream  use in different network protocols for transmission

4.Support  H.264 BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE

5.Coding Standard: Base line profile/ main profile/high profileAudio: MP3, AAC, G.711,

sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K

6.Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S

7.Video packaging: FFMPEG

8.Transmission: TCP, UDP, 100M for configuration/ 1000M for transmission

(RJ45 Duplex network port)

9.Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)

10.Support Text/ image OSD, images superimposing.

11.Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.

12.Support build-in or external audio input, support left and right sound channel, Support audio gain,

turn volume individually.

13.Support encoding without video signal;

14.Take effect immediately when applied the settings, don’t need to restart.

15.Support one-key recovery to default setting.

Specification

Input

4Channel HDMI input, 4 Channel audio input

Output

1 channel IP output, 1 network management port.4 streams output

Video

Input resolution

Up to 1920x1080p 60FPS

Coding standard

H.264

Coding level


H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE


Encoded size

640*360~1920*1080

Video bit rate

Rate control: CBR/VBR 16KBIT/S~12MBIT/S

Video frame rate

5- 60 fps

OSD

Text, Image

Audio

Input selection

4 channel embedded audio hdmi, 4 channel 3.5MM independent audio, support audio gain

Audio coding

AAC/ MP3/ G.711

Audio bit rate

64Kb/s~384Kb/s

Sampling rate

32000、44100,48000 etc

IP output

1000M Ethernet for transmission, 1RJ 100M port for configuration

Dual bitrate standard TS stream.

System

Network protocol

HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast

Configuration management

User interface, remote upgrade, Andriod APP, multi-one management platform


Power supply

AC 110-240V

power consumption

>28W

Size

430mm * 250mm *45mm(length*width*height)

Operating temperature

-20+ 60

Working humidity

<90%Non-condensing

Weight

3KG
