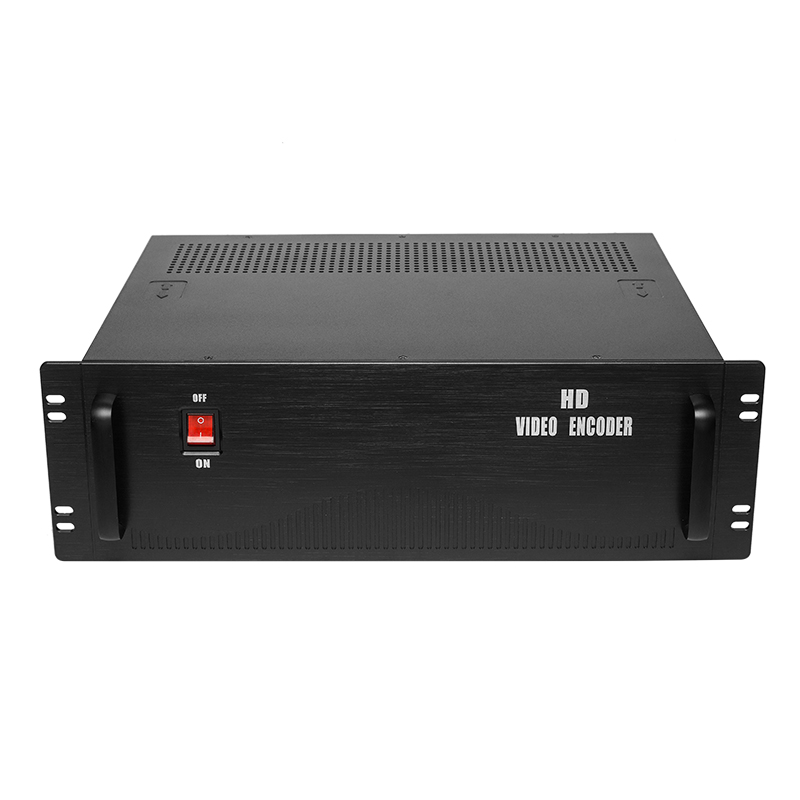

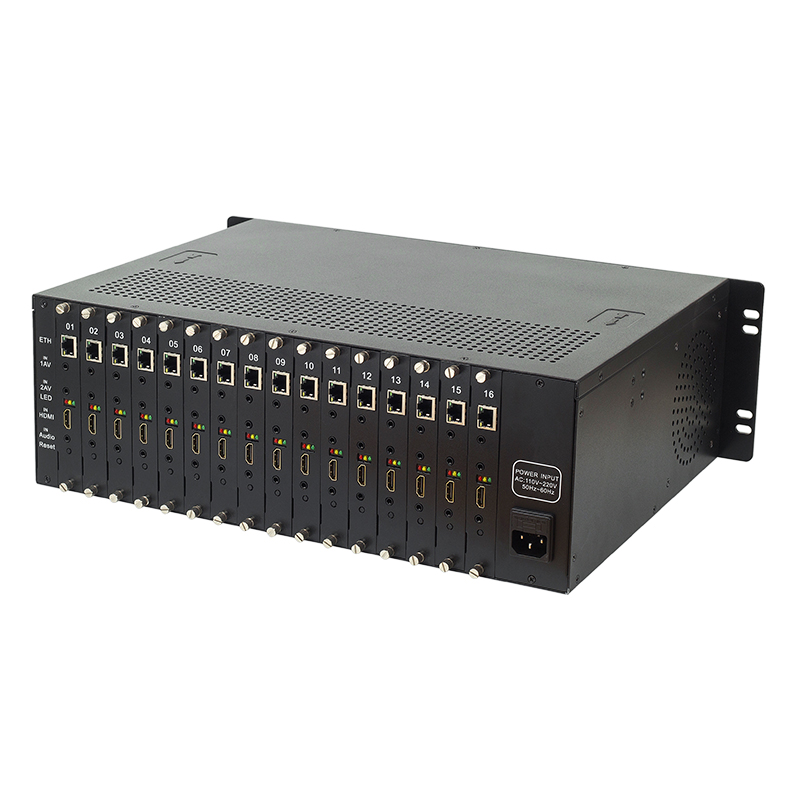

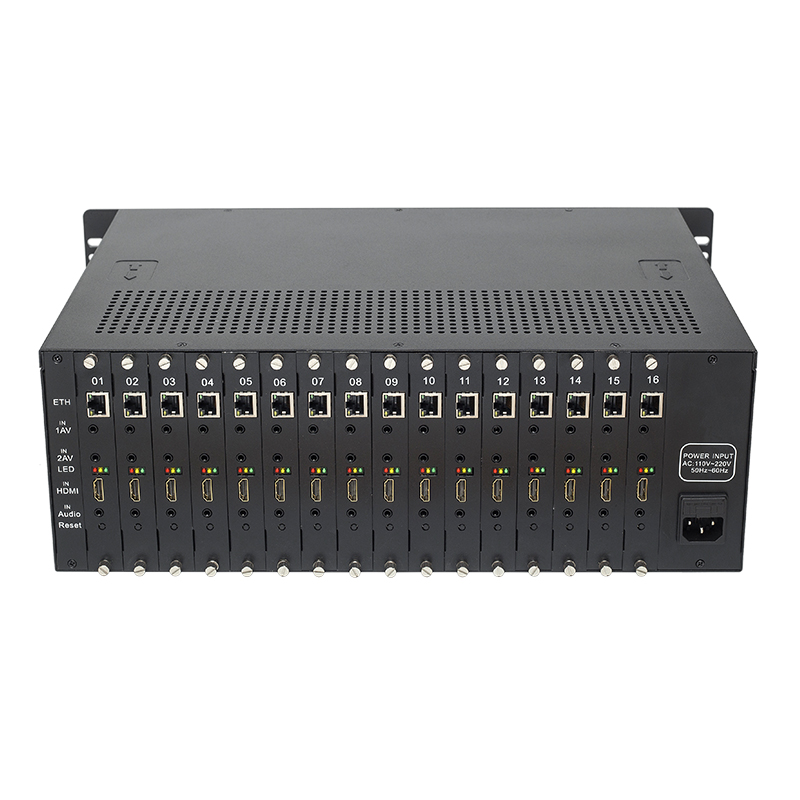

H.264 16CH HDMI Video Encoder 16 Channels HDMI Encoder

H.264 16CH HDMI Video Encoder 16 Channels HDMI Encoder

Model: EH1601



Products Description
This 16 channel HDMI H.264 video encoder is equipped with 16 channels HDMI input 32 channels AV(CVBS) input and 16 channels stereo

audio(3.5mm) input and dual streams output H.264 /AVC format, AAC ,G.711 or MP3 audio coding format,

which is streaming by HTTP, RTSP, UDP, RTP, RTMP, ONVIF, HLS, HLS protocols. Its high integration and

cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel

IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live

broadcast platform, such as YouTube, Twitter, Facebook, etc.

Features:
1. Resolution: 720*576i/720*576p /640*480i 640*320,320*240etc

2. Supports WINDOWS/ LINUX/MAC OS

3. Support RTSP/ RTP/ RTMP/ FLV/ HTTP/ ONVIF/ HLS/ UDP unicast and multicast protocol

4. Support Main TS stream and the sub TS stream  use in different network protocols for transmission

5. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )

6. Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:

7.  Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K

8.  Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S

9.   Video packaging: A mode: FFMPEG, B mode: VLC

10.  Transmission: TCP, UDP, 100M/ 1000M (RJ45 Duplex network port)

11.  Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)

12.  Support Text/ image OSD, images superimposing.

13.  Adjustable coordinates: 1920x1080; the font size: 8 to 72.

14.  Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.

15.  Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

16.  Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.

17.  Support encoding without video signal;

18.  Take effect immediately when applied the settings, don’t need to restart.

19.  Support one-key recovery to default setting.

20.  Low power consumption design.


Specification:

Product model

32-CVBS/16-HDMI HD encoder

Input

32-channel AV/CVBS,16-HDMI input,

16-channel 3.5MM audio input

Output

16-channel IP signal output

Video

Input resolution

720*576i/720*576p /640*480i 640*320,320*240etc

Coding standard

H.264

Coding level

H.264 BASELINE PROFILE

H.264 MAIN PROFILE

H.264 HIGH PROFILE



Encoded size

640*360~1920*1080

Video bit rate

Rate control: CBR/VBR 16KBIT/S~12MBIT/S

Video frame rate

5-30 FPS

OSD

Text, Image

Audio

Input selection

16 channel HDMI/ 32 channel AC

16 channel 3.5MM independent audio

(Support audio gain)

Audio coding

AAC/MP3/G.711

Audio bit rate

24Kb/s~256Kb/s

Sampling rate

32000、44100,48000 etc

IP

output

16 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)

System

Network protocol

Supports HTTP, RTSP, RTMP, UDP, ONVIF,FLV,HLS multicast, unicast

Configuration management

User interface, remote upgrade, Andriod /IOS APP, multiple management platform

The common use

Power supply

200~240V/100~120V

power consumption

<100W

Size

484mm *365mm * 148mm(length*width*height)

Operating temperature

-20℃+ 60℃

Working humidity

<90%,Non-condensing

Weight

7.5KG
