H.265 NDI Encoder HDMI Video Encoder NDIHX

H.265 NDI Encoder HDMI Video Encoder NDIHX

Model: EH150NDI



Products Description

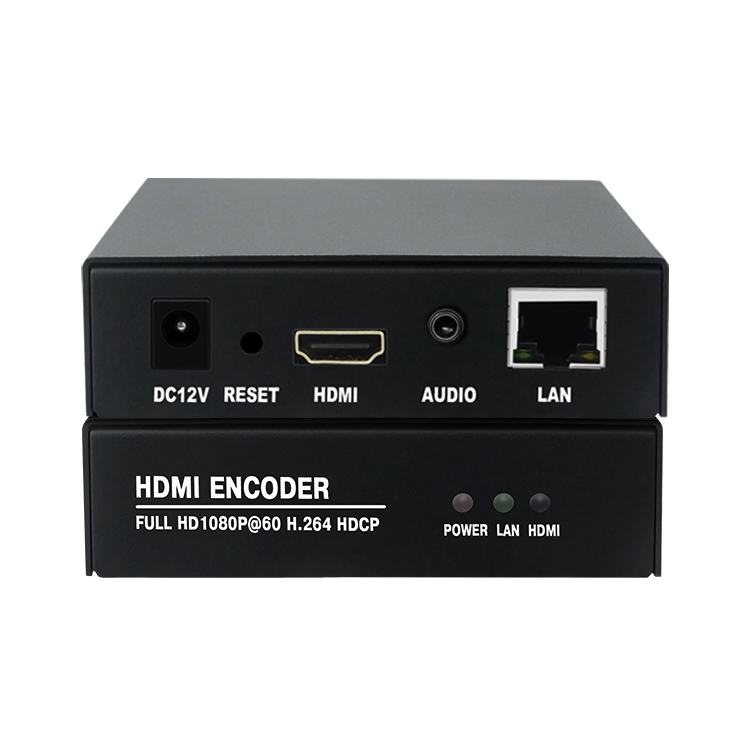

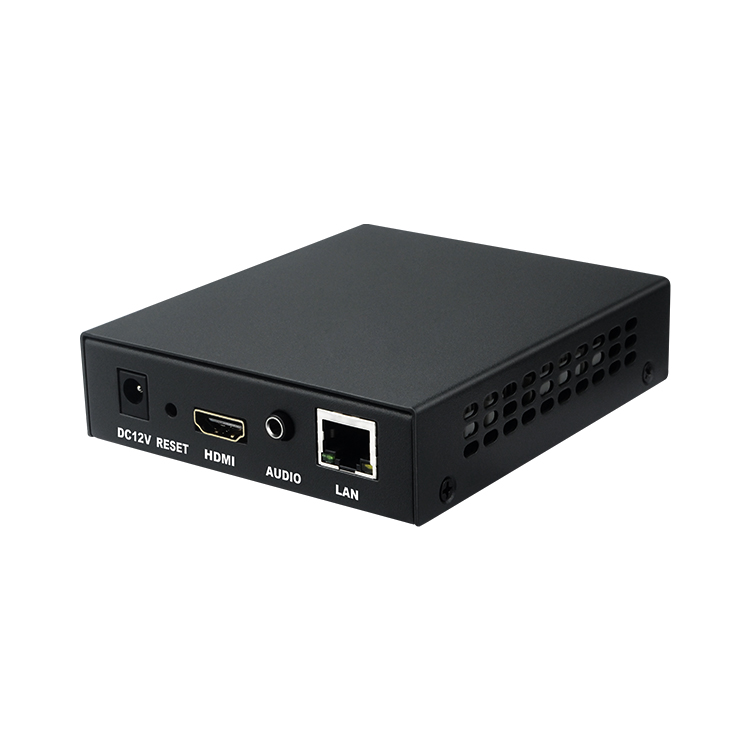

This HDMI NDI H.265 video encoder is equipped with 1 channel HDMI and 1 channels stereo audio(3.5mm) input

supporting HEVC /H.265 or H.264 /AVC high profile /main profile /baseline profile video coding format and AAC

or MP3 audio coding format and two video streamings output simultaneously, which is streaming by NDI, HTTP,

RTSP, UDP /RTP, RTMP, ONVIF, HLS, FLV. Its high integration and cost-effective design make this device widely

used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media

server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.


Features:



1. Embedded HiLinux System, stable and effective.

2. Support H.264/265 /AVC baseline /main /high profile encoding
3. Support NDI streaming and latency is only about 200ms

4. HDMI embedded audio or external audio optional from output video streaming

5. Support image, logo, text parameter settings on the output video streamings

6. Support English WEB operating interface and language customizable

7. Support output video streaming resolution setting
8. Support SDK and API for secondary development
9.  Network interface full-duplex mode with 1000M speed
10. Support HDCP and HD blue-ray
11. A wide area network remote management (Web control panel)
12. A click to restore the default configuration
13. Stable and effective, support 7 x 24h working time



Specifications:

Specifications

Parameter

Audio and video input

Video input

1 channels HDMI

Audio input

1 channel HDMI built-in audio

Audio input

1 channel 3.5mm audio

Video coding

Coding type

H.265/H.264

Coded frame rate

5-60 Adjustable

Key frame interval (frame)

5-300 Adjustable

Bit rate (kbit)

32-32000 Adjustable

Input resolution

1920x1200/1920x1080/1680x1056/1280x720/1024x768/1024x576/850x480/720x576/720x540/720x480/
720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/
480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/176x144

Coding resolution

1920x1200/1920x1080/1680x1056/1280x720/1024x768/1024x576/850x480/720x576/720x540/720x480/
720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/
480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/176x144

Code stream control

CBR/VBR Optional

flow

NDI/RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/UDP Multicast/RTP Multicast



Audio coding

Audio input

Digital / analog / hybrid

Coded sample rate

44100/48000 Optional

Coding method

AAC/AAC+/AAC++/MP3/MP2/AC3 Optional

Coding bit rate

AAC:48000-256000 Adjustable/AAC+:24000-48000 Adjustable/

AAC++:12000-32000 Adjustable/MP3:64000-320000 Adjustable/

MP2: 64000-320000 Adjustable/ AC3:40000-640000 Adjustable

Digital volume

-50~50Adjustable

RTSP stream use G711A code

Disable/enable optional

OSD

transparency

0-128 Adjustable

Types

Text/picture/scroll text

region

4 areas available

X coordinate

0-1920

Y coordinate

0-1080

LOGO

Upload 16 LOGO options

font size

8-72

Background color

Transparent / white / black

font color

RGB color optional

Others

Network

1000 Mbit/s full-duplex

Configuration management

Configuration management through WEB

ONVIF

Support ONVIF to browsing videos

Power

12V/DC,2A

Power consumption

<5W

Operating temperature

-20℃+60℃

Working humidity

<90%,No condensation

Size

96X79X54mm

Weight

638g
