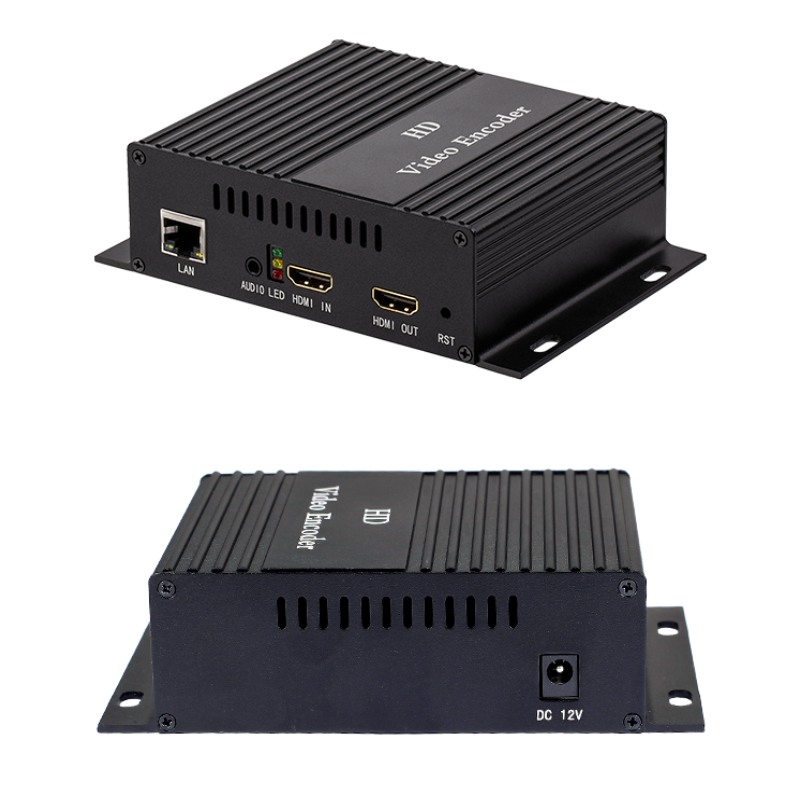

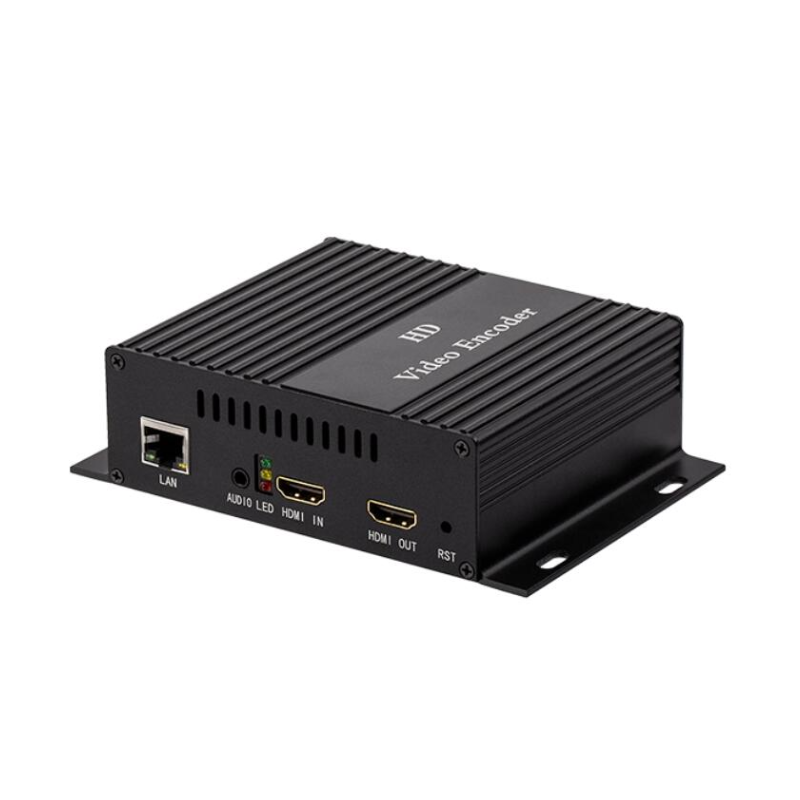

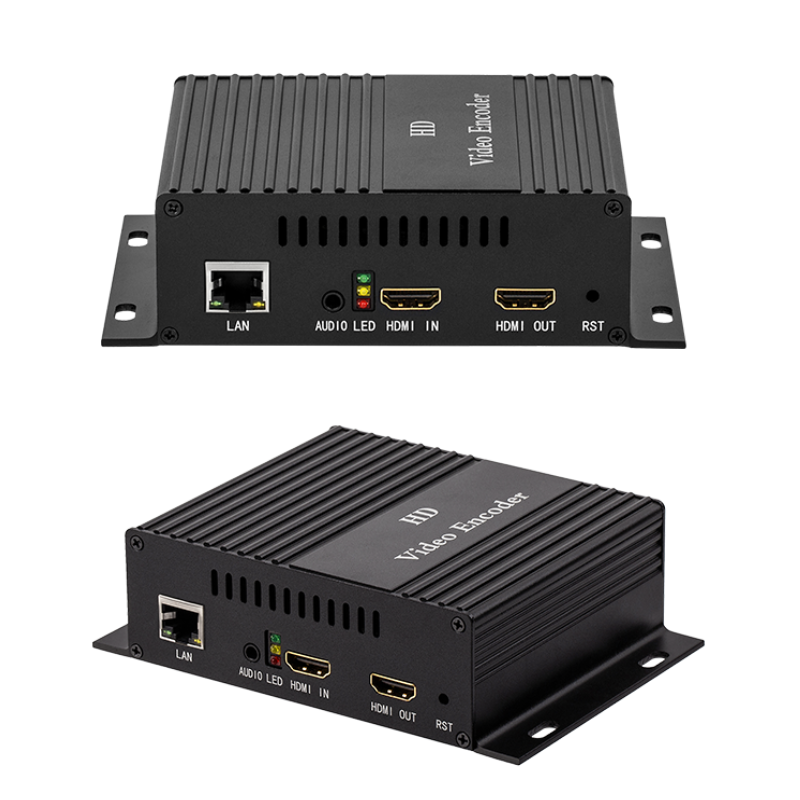

H.264 HDMI Video Encoder with Loop out 1080P

H.264 HDMI Video Encoder with Loop out 1080P

Model: EHL320



Products Description
This H.264 HD HDMI Encoder is a professional audio and video encoding products, which support 1 channel HDMI audio and

video capture function and 1 channel HDMI loop out. dual streaming H.264 encoded output format, audio MP3, AAC formats.

Can be freely adjusted according to the need. The device is highly integrated, cost-effective. Support HTTP / RTSP / RTP /

RTMP / UDP transport protocols. Support for external audio input. It is easy to install, plug-play, no need to disassemble the

machines, and there is no computer hardware compatibility issues and no need HD capture card.

Feature:
* The embedded hardware encoding,support HDMI Loop out

* Support 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i solutions (customized)

* Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE

* Support multiple devices display on a computer at the same time

* Support network directly connected, don’t need match HD collection card.

* Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S

* The network interface uses a 1000M full duplex mode

* 1 channel HDMII input, 1 channel 3.5MM independent audio interface input, support SDI / VGA /

CVBS convert to HDMI input

* Support up to 720P, 1080P HD video input

* Support RTSP/RTP/RTMP/HTTP/UDP unicast and multicast protocol

(RTMP support adding users and passwords changing) Support DHCP protocol, ONVIF protocol, support Blue-ray

* Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming

* Support Main TS stream and the sub TS stream  use in different network protocols for transmission (Multi-rate multi-protocol support)

* Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S

* Video packaging: A mode: FFMPEG, B mode: VLC

* Support streaming resolution output settings custom

* Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)

* Support streaming add watermark (OSD), XY axis, the font can be set;

* Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)

* Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance

* Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

* Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually

* Support coding without video signal; Complete the setting effect immediately, don’t need to restart

* Support one-key recovery of the default configuration

* Support set-top box decoder

* The low power consumption design

Specification:

Product model

H.264 HDMI Video encoder

Input

1 HDMI input, 3.5 1 channel audio input

Output

1 channel IP signal output,1channel HDMI loop out

Video

Input resolution

1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 And other conventional resolution

Coding standard

H.264

Coding level

    H.264 BASELINE PROFILE

H.264 MAIN PROFILE

H.264 HIGH PROFILE

Encoded size

640*360~1920*1080Can customize

Video bit rate

Rate control: CBR/VBR 16KBIT/S~12MBIT/S

Video frame rate

30/60

OSD

Character, images

Audio

Input selection

1 channel embedded audio hdmi, 1 channel 3.5MM independent audio  Support audio gain

Audio coding

AAC/MP3

Audio bit rate

64Kb/s~384Kb/s

Sampling rate

3200044100 48000etc

IP

output

1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol

System

Network protocol

Supports HTTP, RTSP, RTMP, UDP, multicast, unicast

Configuration management

Support IE configuration, remote upgrade

The common use

Power supply

12V~2A

power consumption

5W

Size

100mm * 118mm *40mm(length*width*height)

Operating temperature

-20+ 60

Working humidity

<90%Non-condensing

Weight

0.3KG
