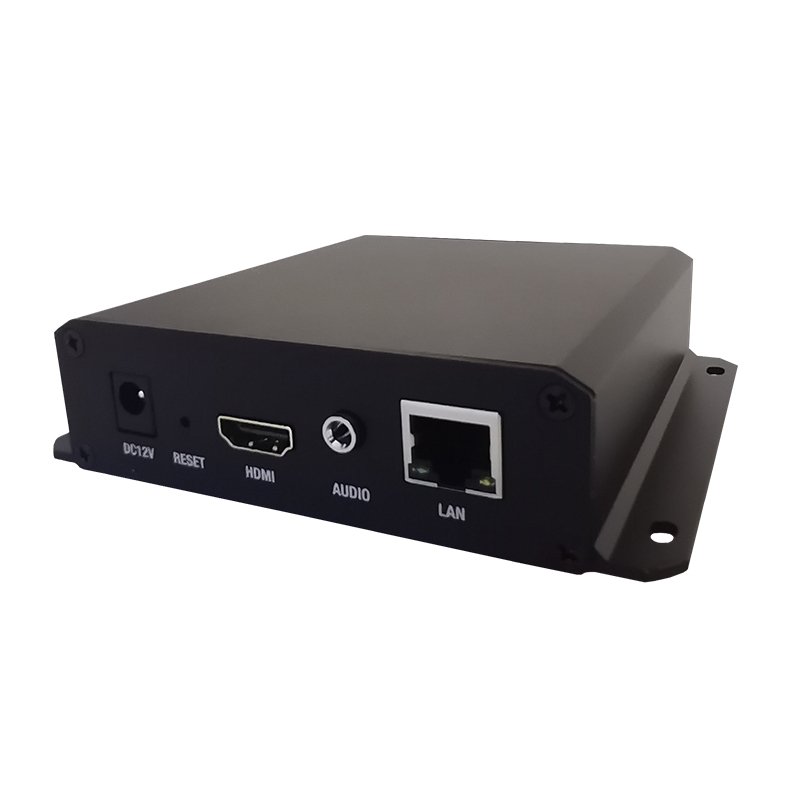

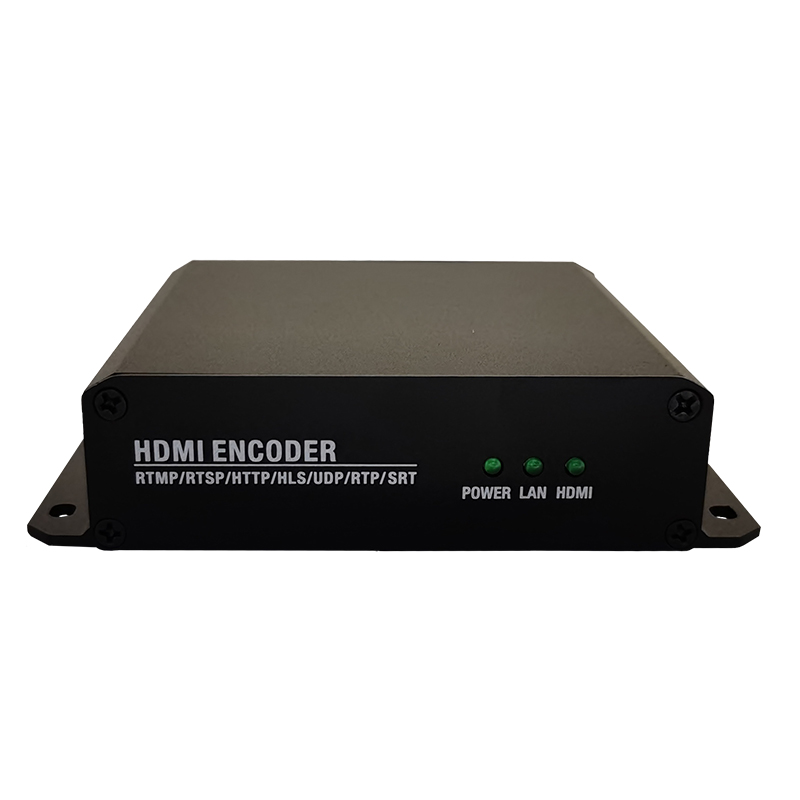

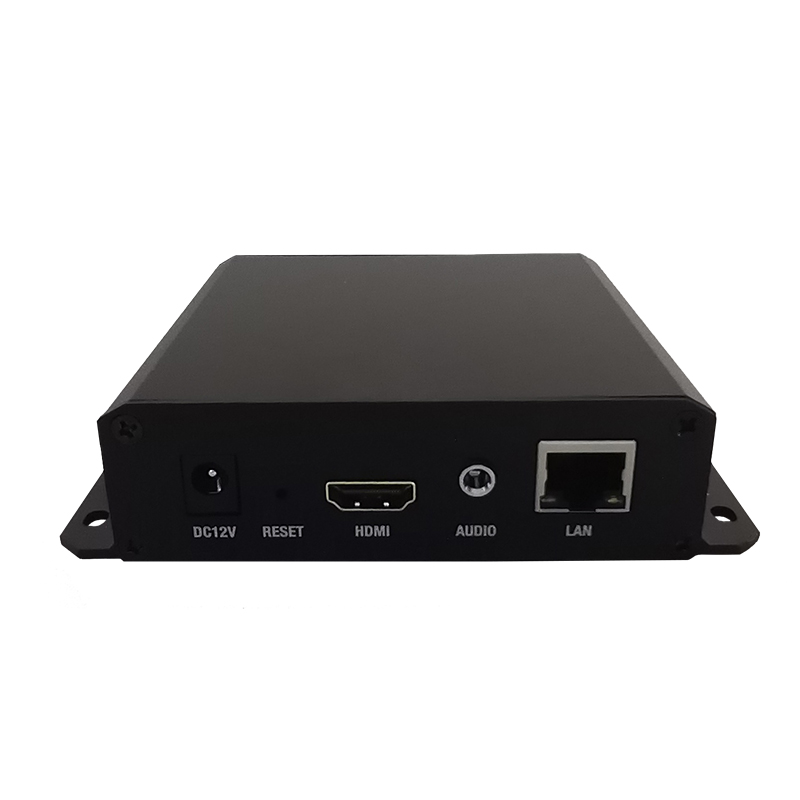

H.265/H.264 HDMI Video encoder 4K

H.265/H.264 HDMI Video encoder 4K

Model: EH240



Products Description

This 4K HDMI H.265 video encoder is equipped with 1 channel HDMI input 1 channel stereo audio(3.5mm) input supporting HEVC /H.265 or H.264 /AVC high profile /main profile /baseline profile video coding format and AAC or MP3 audio coding format and four video streamings output simultaneously, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, ONVIF, HLS, FLV. The resolution up to 3840*2160/30Hz. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.


Features:



1. Embedded HiLinux System, stable and effective.





2. Support H.264/265 /AVC baseline /main /high profile encoding





3. Support HDMI embedded audio or external audio optional from output video streaming





4. Support image, logo, text parameter settings on the output video streamings



5. Support English WEB operating interface and language customizable



6. Support output video streaming resolution setting



7.   Support SDK and API for secondary development



8.   Less than 200ms time delay for core chip processing



9.   Network interface full-duplex mode with 1000M speed

10. Support HDCP and HD blue-ray



11. A wide area network remote management (Web control panel)







12. A click to restore the default configuration

13. Stable and effective, support 7 x 24h working time

Specifications:

Specifications

Parameter

Audio and video input and output

Video input

1 channels HDMI

Video output

1 channel HDMI loop out

Audio input

1 channel HDMI built-in audio

Audio input

1 channel 3.5mm audio

Video coding

Coding type

H.265/H.264

Coded frame rate

5-60 Adjustable

Key frame interval (frame)

5-300 Adjustable

Bit rate (kbit)

32-32000 Adjustable

Input resolution

3840*2160/1920x1200/1920x1080/1680x1056/1280x720/1024x768/1024x576/850x480/720x576/
720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/
480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/
320x180/240x180/176x144

Coding resolution

3840*2160/1920x1200/1920x1080/1680x1056/1280x720/1024x768/1024x576/850x480/720x576/
720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/176x144

Code stream control

CBR/VBR Optional

Flow

Support one main stream and 3 channels sub stream

Flow protocol

RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/SRT /UDP Multicast/RTP Multicast



Audio coding

Audio input

Digital / analog / hybrid

Coded sample rate

44100/48000 Optional

Coding method

AAC/AAC+/AAC++/MP3/MP2/AC3 Optional

Coding bit rate

AAC:48000-256000 Adjustable/AAC+:24000-48000 Adjustable/

AAC++:12000-32000 Adjustable/MP3:64000-320000 Adjustable/

MP2: 64000-320000 Adjustable/ AC3:40000-640000 Adjustable

Digital volume

-50~50Adjustable

RTSP stream use G711A code

Disable/enable optional

OSD

transparency

0-128 Adjustable

Types

Text/picture/scroll text

region

4 areas available

X coordinate

0-1920

Y coordinate

0-1080

LOGO

Upload 4 LOGO options

font size

8-72

Background color

Transparent / white / black

font color

RGB color optional

Others

Network

1000 Mbit/s full-duplex

Configuration management

Configuration management through WEB

ONVIF

Support ONVIF to browsing videos

Power

12V/DC,2A

Power consumption

<3W

Operating temperature

-20℃+60℃

Working humidity

<90%,No condensation

Size

15.5X10X3.2mm

Weight

638g
