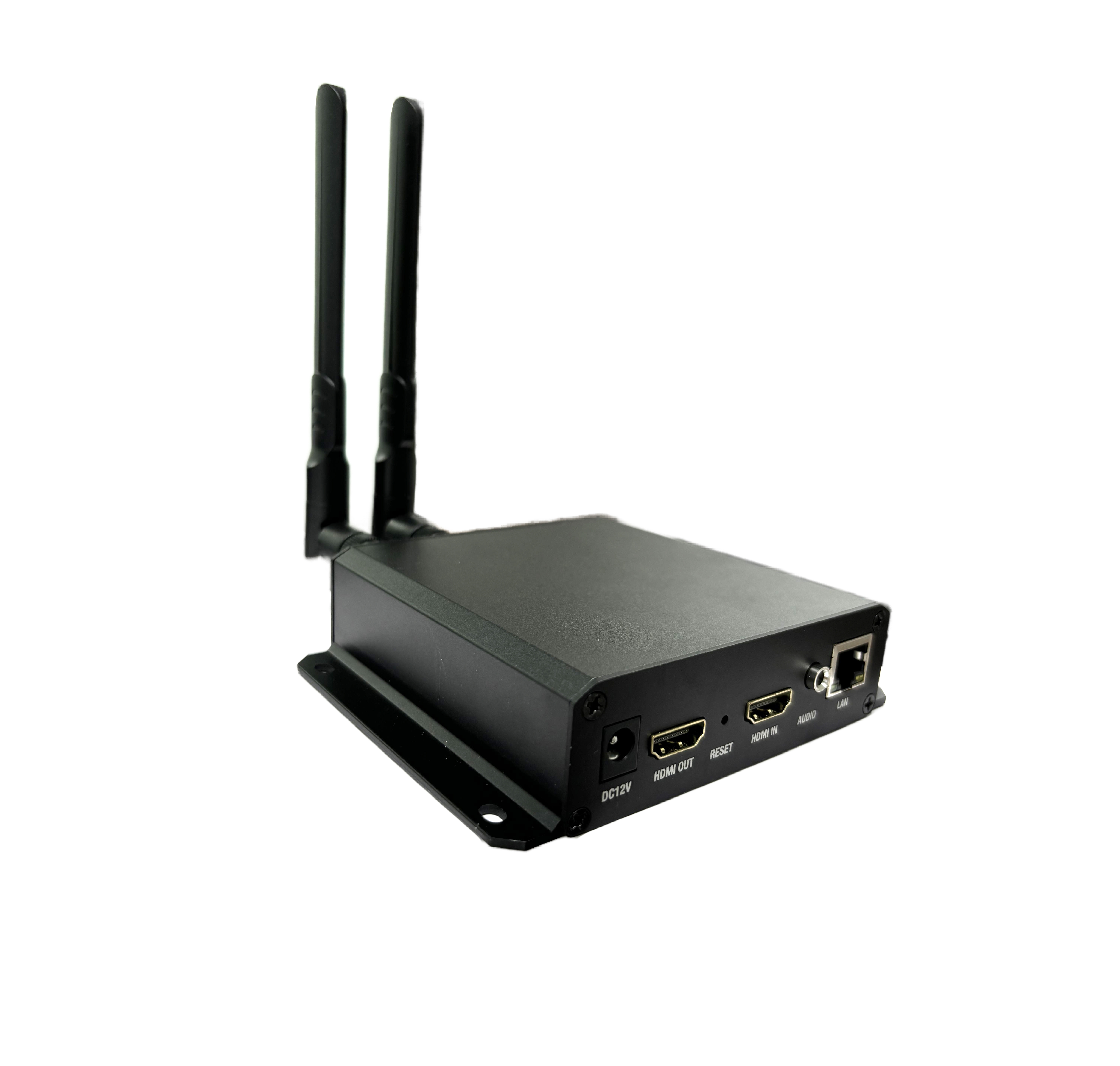

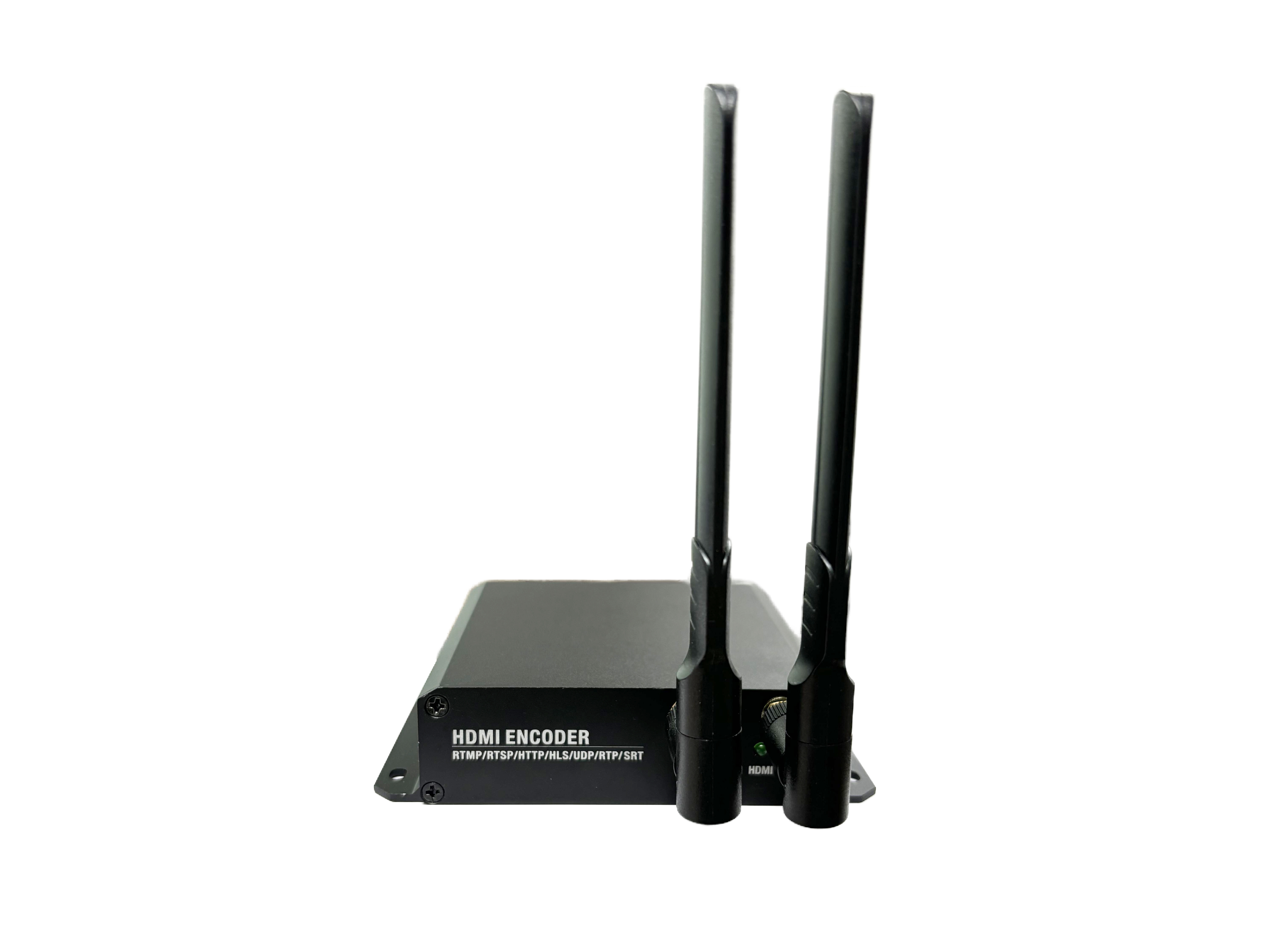

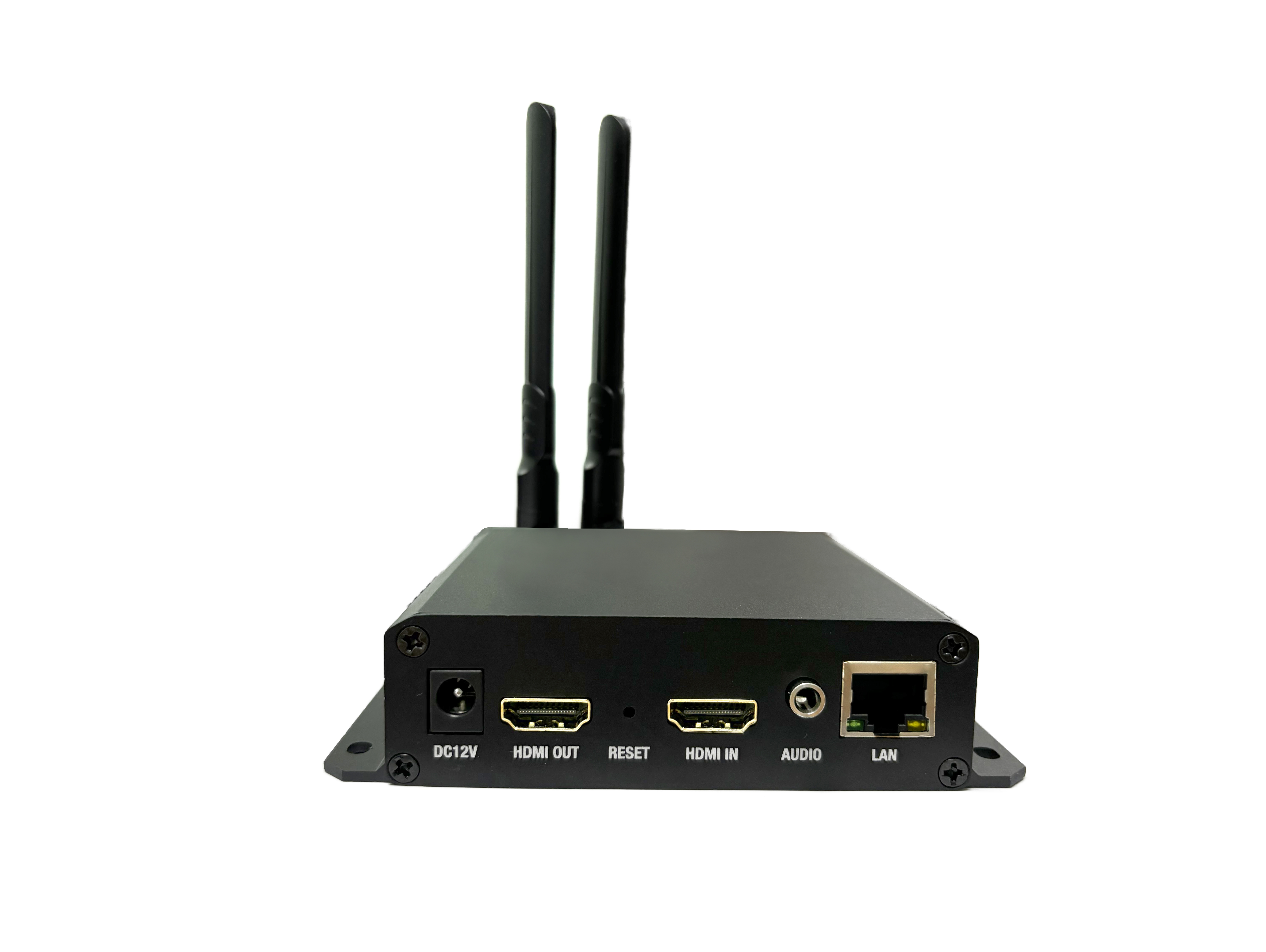

H.265/H.264 HDMI WiFi Video Encoder 1080P with HDMI Loop out

H.265/H.264 HDMI WiFi Video Encoder 1080P with HDMI Loop out

Model: EHL140W



Products Description

This HDMI WiFi H.265 video encoder is equipped with 1 channel HDMI and 1 channel stereo audio(3.5mm) input supporting HEVC /H.265 or H.264 /AVC high profile /main profile /baseline profile video coding format and AAC or MP3 audio coding format and four video streamings output simultaneously, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, ONVIF, HLS, FLV. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.

Features:



1. Embedded HiLinux System, stable and effective.





2. Support H.264/265 /AVC baseline /main /high profile encoding





3. Support HDMI embedded audio or external audio optional from output video streaming





4. Support image, logo, text parameter settings on the output video streamings



5. Support English WEB operating interface and language customizable



6. Support output video streaming resolution setting



7.     Support SDK and API for secondary development



8.    Less than 200ms time delay for core chip processing



9.    Network interface full-duplex mode with 1000M speed

10. Support HDCP and HD blue-ray



11. A wide area network remote management (Web control panel)







12. A click to restore the default configuration

13. Stable and effective, support 7 x 24h working time
