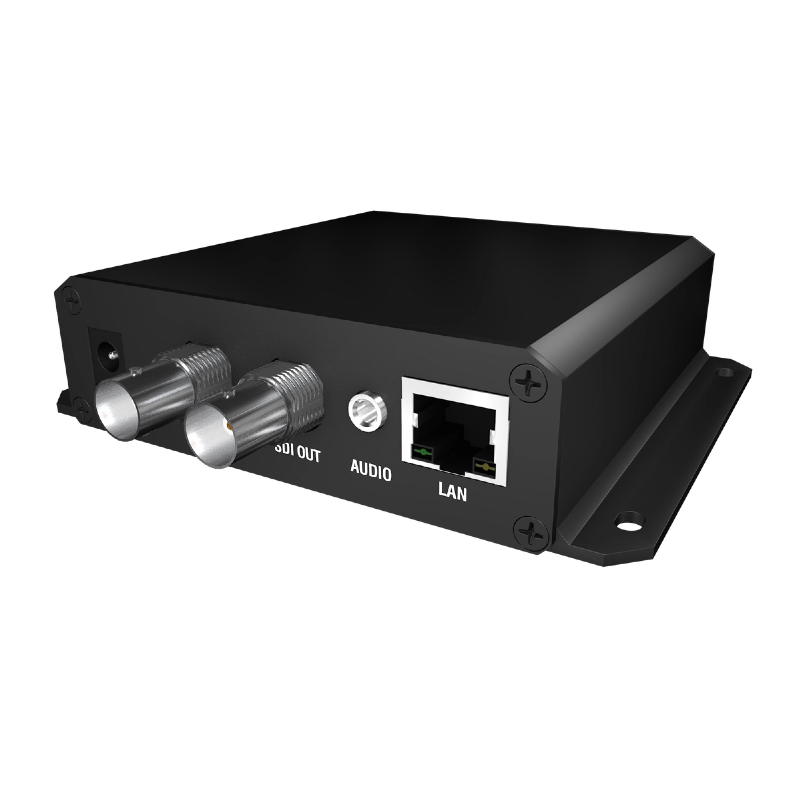

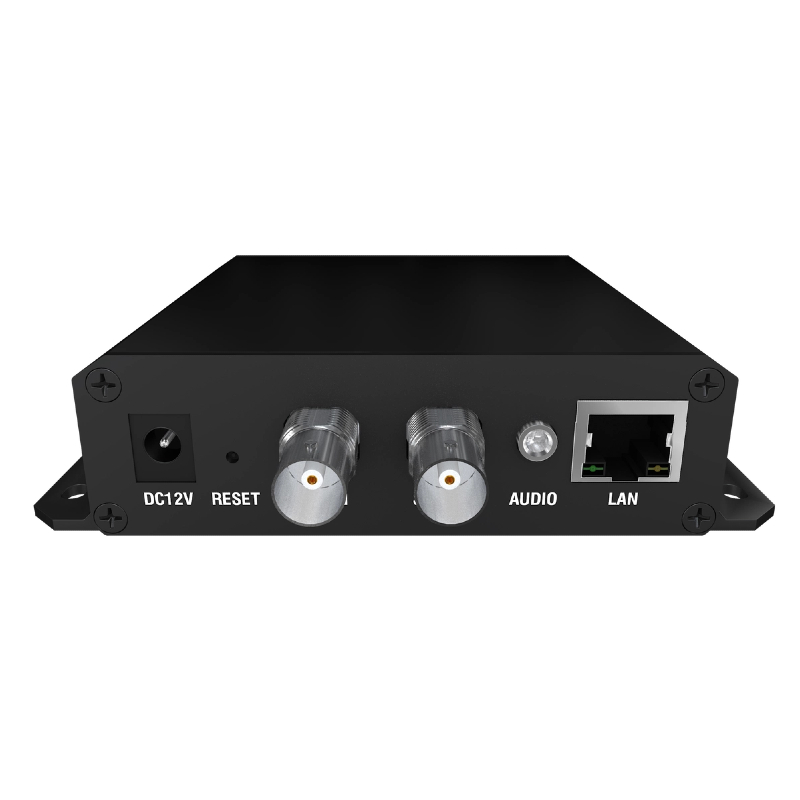

H.265/H.264 SDI Video encoder with Loop out 1080P
Products Description
H.265 SDI loop-out Encoder Specification
Specification | parameter | |
Audio and video in/out | Video in | 1 SDI |
Video out | 1 SDI | |
Audio in | 1 SDI Built in audio | |
1 3.5mm analog audio | ||
Video Encoder | Encoding type | H.265/H.264/MJPEG |
FPS | 5-60 | |
GOP | 5-300 | |
Bitrate(kbit) | 32-32000 | |
Encoded size: | 1920x1080/1680x1200/1680x900/1280x1024/1280x720/1024x768/1024x576/960x540/ | |
Bitrate control | CVR/ VBR/ STRONG CBR | |
stream | SRT /RTMP/ RTSP / HTTP TS/ HTTP FLV/HLS/ UDP/ Multicast | |
Video quality | high/Higher/Middle/Lower/Low | |
Number of code streams | 1 Main code stream，3 Sub-code stream | |
Audio encode | Sample rate | 44100/48000 |
Audio input | Digital audio/analog audio | |
Encoder | AAC/AAC+/AAC++/MP3/MP2/AC3/Opu | |
Bitrate： | AAC:48000-256000 /AAC+:24000-48000/ AAC++:12000-32000/MP3:64000-320000 / MP2: 64000-320000 / AC3:40000-640000 /Opus:8000-25600 | |
G711A Over RTSP | Disable/Enable | |
OSD | Alpha | 0-128 |
Text | Disable/Enable | |
Font size | 8-72 | |
X | 0-1920 | |
Y | 0-1080 | |
LOGO | Upload four Logo | |
common | Network | Set IP，RJ45 |
configuration | WEB，upload，reset | |
Power Supply | 12V/DC,2A | |
Power | <5W | |
Temperature | -20℃+60℃ | |
humidity | <90%, non-condensed | |
Size | 125.5cm x 100.5cm x 3cm | |
Weight | 198g | |
