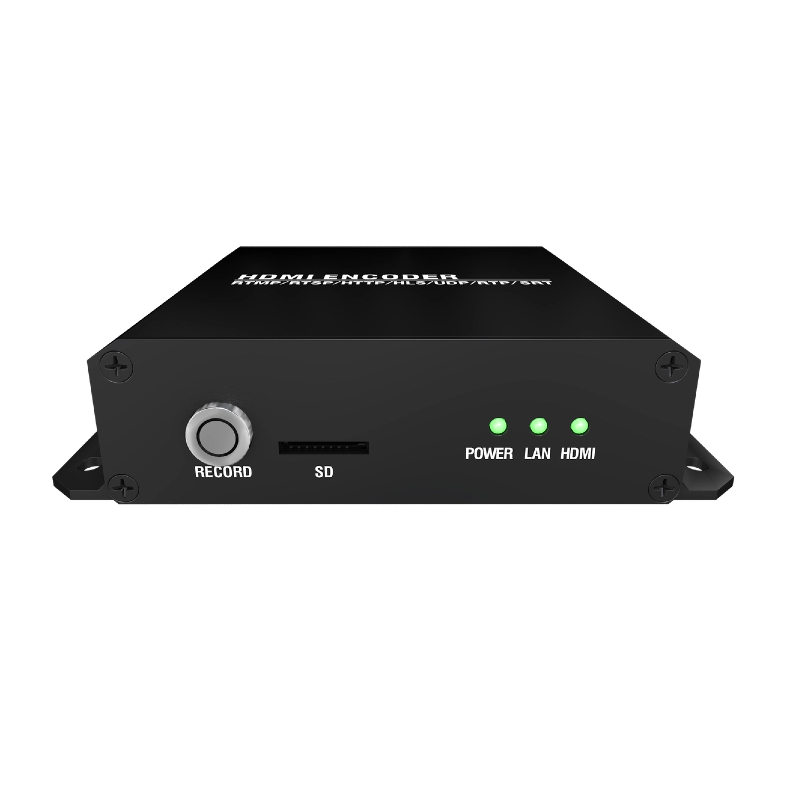

H.265/H.264 HDMI Encoder with Recorder 1080P

H.265/H.264 HDMI Encoder with Recorder 1080P

Model: EHL140R



Products Description

Features:

1. Video recorder support NTFS/EXFAT/FAT32 format SD card

2. Support H.264/265 /AVC baseline /main /high profile encoding

3. Support HDMI embedded audio or external audio optional from output video streaming

4. Support image, logo, text parameter settings on the output video streamings

5. Support English WEB operating interface and language customizable

6. Support output video streaming resolution setting

7. Support SDK and API for secondary development

8. Less than 200ms time delay for core chip processing

9. Network interface full-duplex mode with 1000M speed

10.Support HDCP and HD blue-ray

11. A wide area network remote management (Web control panel)

12. A click to restore the default configuration

13. Stable and effective, support 7 x 24h working time

Specification

Specification

parameter

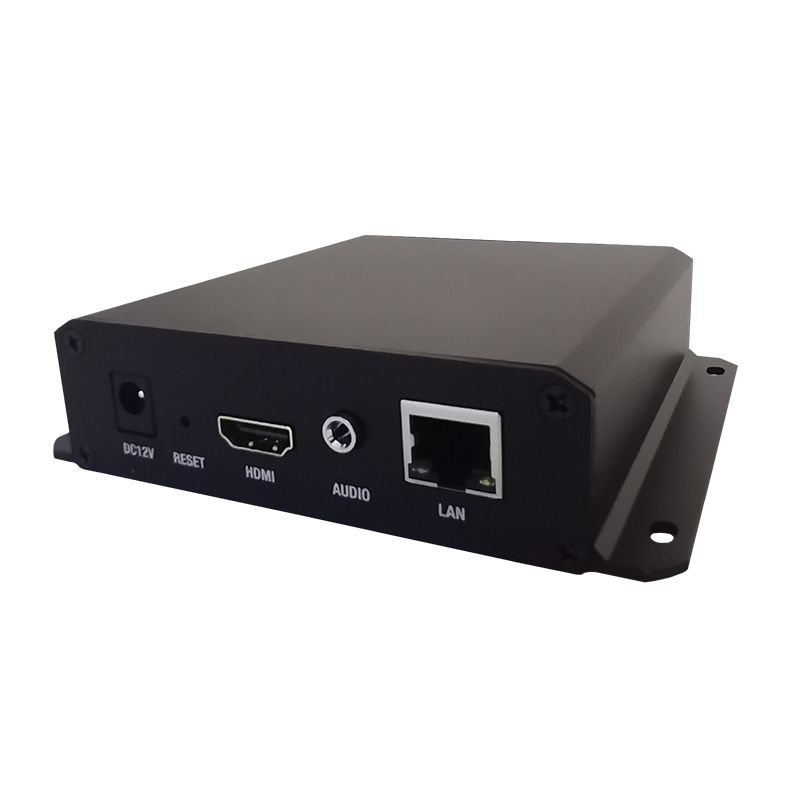

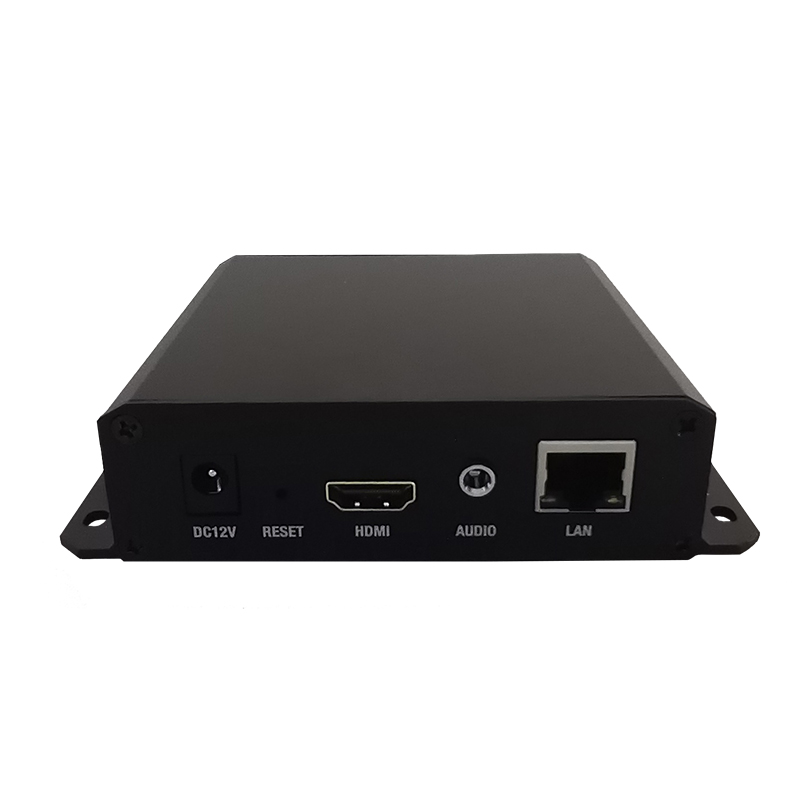

Audio and video in/out

Video in

1  HDMI

Video out

1  HDMI

Audio in

1  HDMI Built in audio

1 3.5mm analog audio

Video Encoder

Encoding type

H.265/H.264/MJPEG

FPS

5-60

GOP

5-300

Bitrate(kbit)

32-32000

Encoded size:

1920x1080/1680x1200/1680x900/1280x1024/1280x720/1024x768/1024x576/960x540
/850x480/800x600/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272
/ Same as input resolution

Bitrate control

CVR/ VBR/ STRONG CBR

stream

SRT /RTMP/ RTSP / HTTP TS/ HTTP FLV/HLS/ UDP/ Multicast

Video quality

high/Higher/Middle/Lower/Low

Number of code streams

1 Main code stream3 Sub-code stream

Audio encode

Sample rate

44100/48000

Audio input

Digital audio/analog audio

Encoder

AAC/AAC+/AAC++/MP3/MP2/AC3/Opu

Bitrate

AAC:48000-256000 /AAC+:24000-48000/

AAC++:12000-32000/MP3:64000-320000 /

MP2: 64000-320000 / AC3:40000-640000 /Opus:8000-25600

G711A Over RTSP

Disable/Enable

OSD

Alpha

0-128

Text

Disable/Enable

Font size

8-72

X

0-1920

Y

0-1080

LOGO

Upload four Logo

video record

storage

NTFS/EXFAT/FAT32 format SD card

Samba address

\\192.168.1.168\encoder\

format

TS / MP4

common

Network

Set IPRJ45

configuration

WEBuploadreset

Power Supply

12V/DC,2A

Power

<5W

Packaging content:

1. H.265 HDMI encoder 1080P  x1

2. User Manual     x1

3. Power Adapter   x1
