H.264 200M IP HDMI KVM Extender over Cat5e Cat6

H.264 200M IP HDMI KVM Extender over Cat5e Cat6

Model: HEX02-KVM



Products Description
Introduction:

 HDMI 200M Extender over IP is based on TCP/IP standard. It transmits your HD display with the high resolution up to 200 meters away from your DVD or computer source by using one CAT5e/6 cable.

 At the same time, it’s convenient to transmit HDMI audio and video source by point-to-point mode, multipoint-to-multipoint and cascade connection mode .

Features

* Support point-to-point mode, multipoint-to-multipoint mode;

 and cascade connection mode;

* 802.3 Ethernet standard;

* Support IR remote control;

* Support USB mouse and keyboard extension;

* Support software management during multiple-to-multiple transfers.

Specifications

Resolutions........................................................................................... 480p,720p,1080p

Audio......................................................... Sample rate:32kHz,44.1kHz and 48kHz code

IR remote control..................................................................................... 38 KHz(NEC)

Power adapter.................................................................................................. DC:5V/1A

The Max Power consumption............................ HDMI sender:2.5W HDMI receiver:2W

Size(L-W-H)................................................................................................ 163*87*24mm

Weight................................................................................................................. 474g x 2

Operating Temperature/Humidity...................... 0℃-45℃/10%-80%RH(no condensation)

Storage Temperature/Humidity........................ -10℃-70℃/5%-90%RH(no condensation)

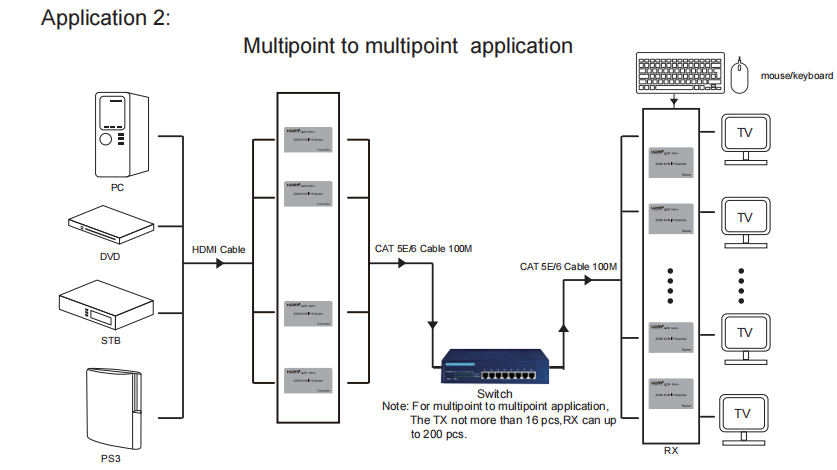

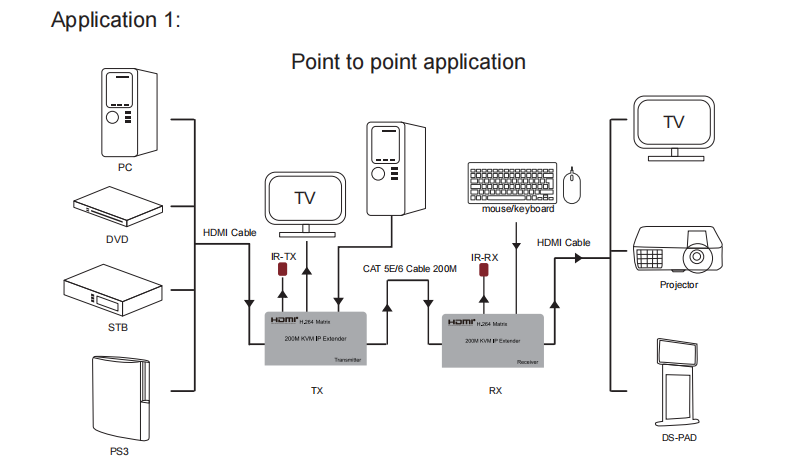

Application diagrams
