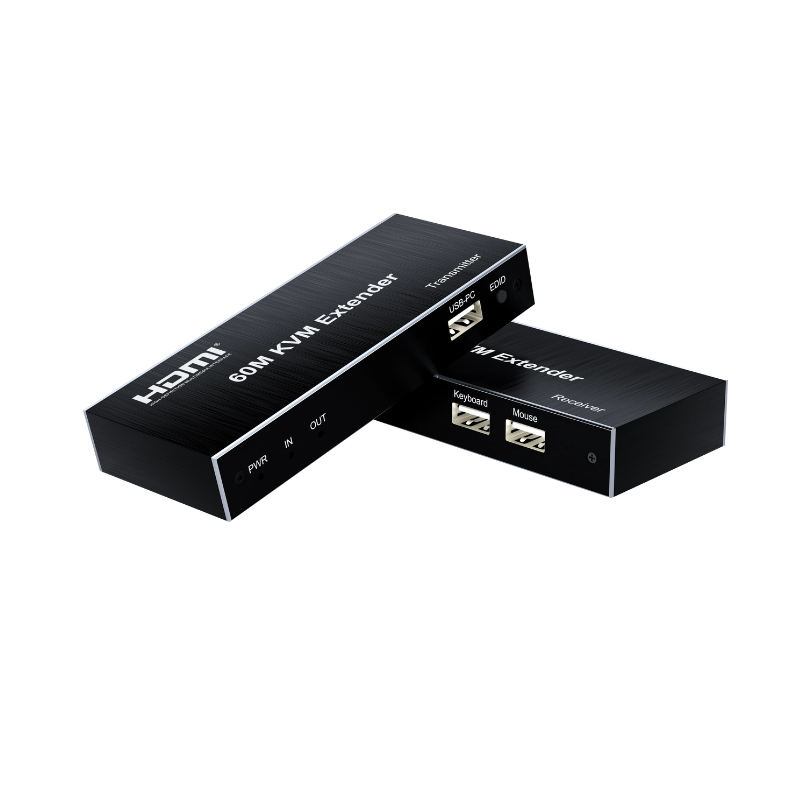

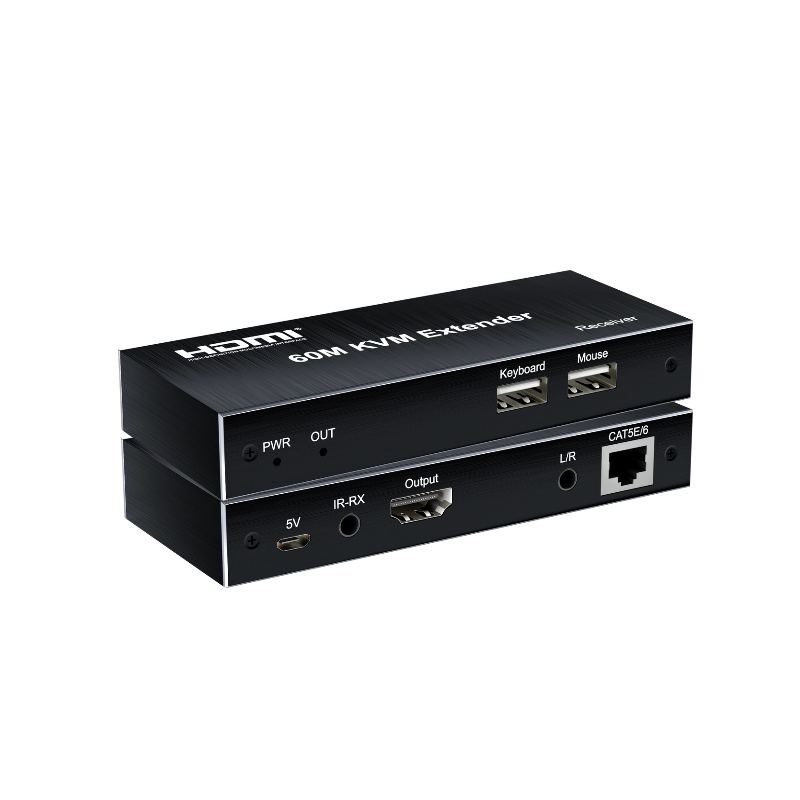

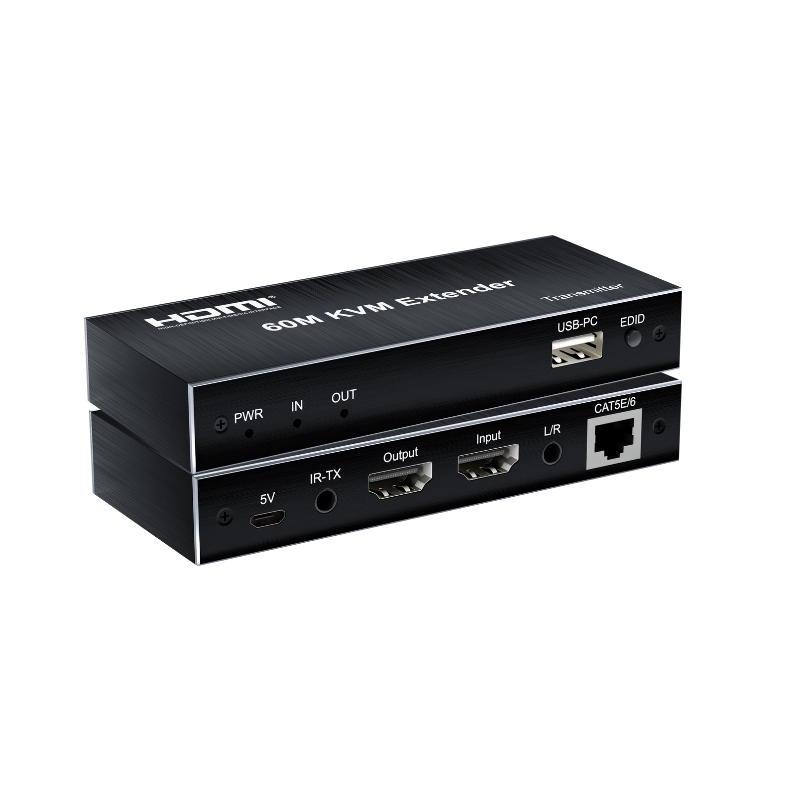

HDMI 60M KVM Extender over Cat5e Cat6 IR 1080P

HDMI 60M KVM Extender over Cat5e Cat6 IR 1080P

Model: HEX24



Products Description
Introduction:

The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.

Features

* Support 1080P/60Hz;

* Support local loop-out ;

* Support 60m long distance transmission:

* Low power consumption, low temperature and high safety;

* Both the TX and RX support 3.5MM left and right audio output;

* Support IR control;

* Support mouse and keyboard extension;

Specification

Length of CAT-6/CAT-5E cable between Rx and TX ……………............… Up to 60 meters

HDMI Input …..…………………...………............... 1080p/1080i/720p/576p/576i/480p/480i

HDMI Output …..…………….…...………............... 1080p/1080i/720p/576p/576i/480p/480i

Max bandwidth ……………………………………………………………………..…… 150MHz

Max baud rate ...…………….…….………………….………….……………………… 4.5Gbps

Input video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p

Output DDC signal ………………………………………………………..…… 5Volts p-p (TTL)

Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable

Output HDMI cable distance ....................................... ≤15m AWG26 HDMI standard cable

TX Max working current ………………………………………...………….……………. 450mA

RX Max working current …………………………………………...…………………..… 350mA

Power adapter format ...……...…… Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range ……..…………….………………….………...… (-15 to +45℃)

Operating Humidity range ………………………….….….… 5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….……………………..… 122x50x19 (mm)

TX Weight …..……………………………………………..………………………........…… 108g

RX Weight .................................................................................................................... 108g
