Introduction:

 300M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to 300 meters away from your DVD or computer source by using one CAT5e/6 cable. At the same time, it’s convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint, multipoint-to-multipoint mode and cascade connection mode .

Features:

* Support HDCP1.4.

* Decoding mode MJPEG.

* Support point-to-point mode, one point-to-multi point mode

 and cascade connection mode.

* 802.3 Ethernet standard.

* Support IR remote control.

* Support USB mouse and keyboard extension.

* The design of pure hardware, plug and play, no need for additional software.

Specifications:

Resolutions ...................................................................................... 480P/720P/1080P

Audio .............................................................. Sample rate:32kHz,44.1kHz and 48kHz

Power adapter format ..........…. Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A

The max working current ..……………...……………...……... TX 450mA，RX 450mA

Size(L-W-H) .............................................................................................. 90*91*19mm

Weight ............................................................................................................. 121g x 2

Operating Temperature/Humidity ................. 0℃-45℃/10%-80%RH(no condensation)

Storage Temperature/Humidity .................. -10℃-70℃/5%-90%RH(no condensation)

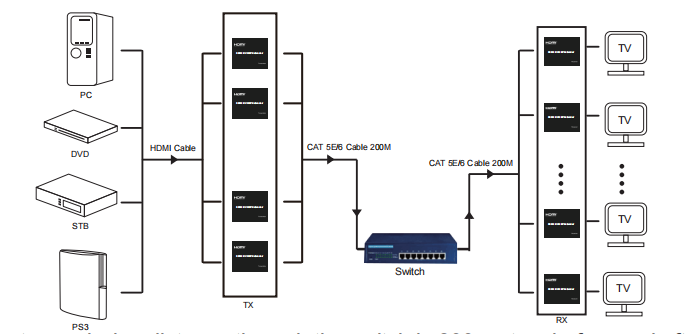

Application diagrams
