Introduction:

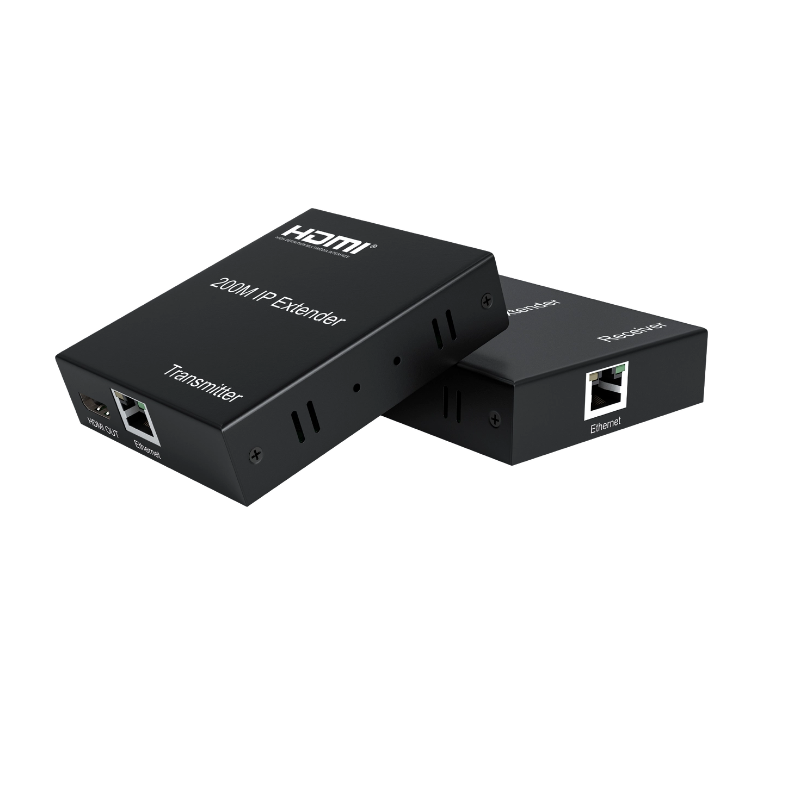

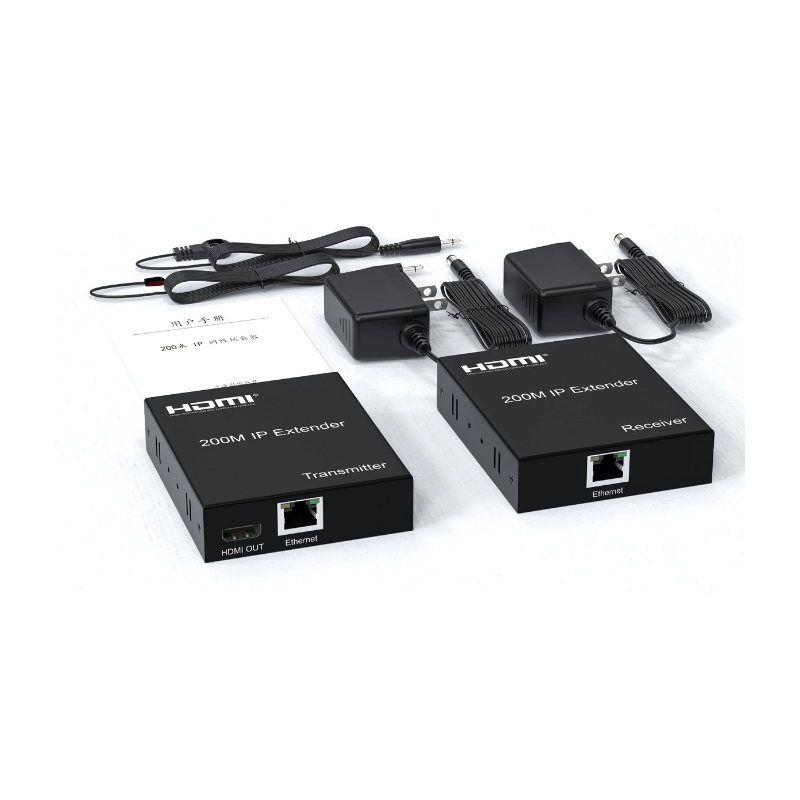

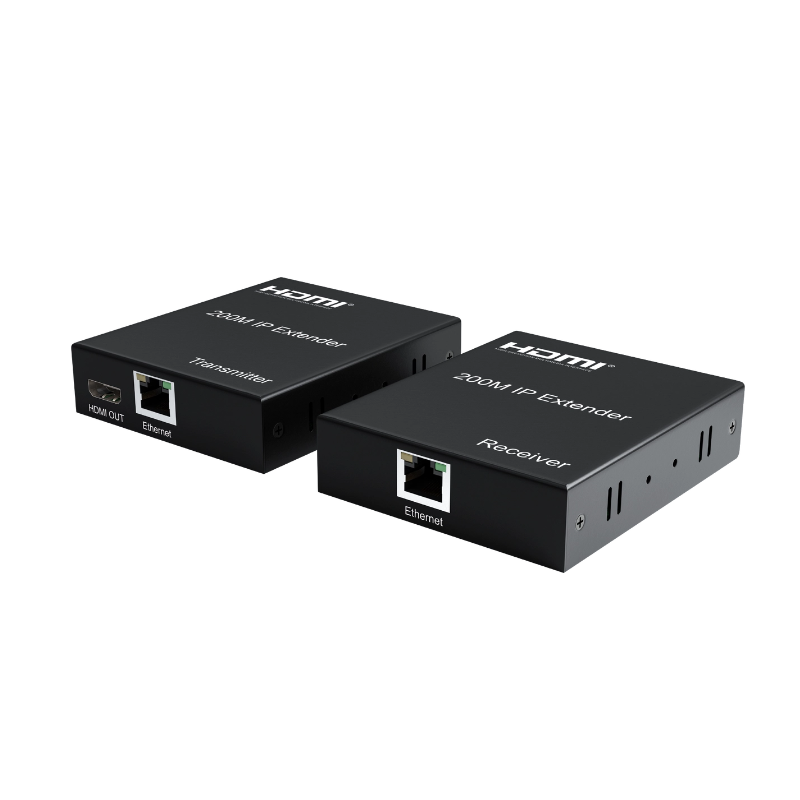

 200M HDMI IP Extender is based on TCP/IP standard. It transmits your HD

display with the high resolution up to 200 meters away from your DVD or computer

source by using one CAT5e/6 cable. At the same time, it’s convenient to transmit

HDMI audio and video source by point-to-point mode, point-to-multipoint, multipoint-to

-multipoint mode and cascade connection mode .

Features

* Support HDCP1.4

* Decoding Mode MJPEG

* Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode

 and cascade connection mode；

* 802.3 Ethernet standard；

* The design of pure hardware, plug and play, no need for additional software.

Specifications

Resolutions ...................................................................................... 480P/720P/1080P

Audio .............................................................. Sample rate:32kHz,44.1kHz and 48kHz

Power adapter format ..........…. Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A

The max working current ..……………...……………...……... TX 500mA，RX 500mA

Size(L-W-H) .............................................................................................. 93*79*21mm

Weight ............................................................................................................. 228g x 2

Operating Temperature/Humidity ................. 0℃-45℃/10%-80%RH(no condensation)

Storage Temperature/Humidity .................. -10℃-70℃/5%-90%RH(no condensation)

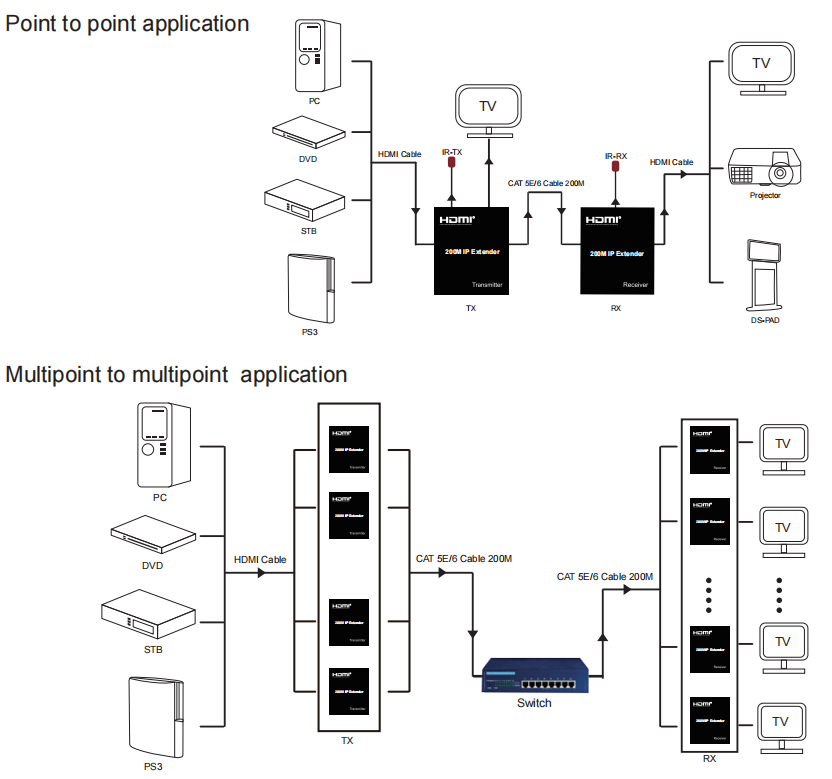

Application diagrams
