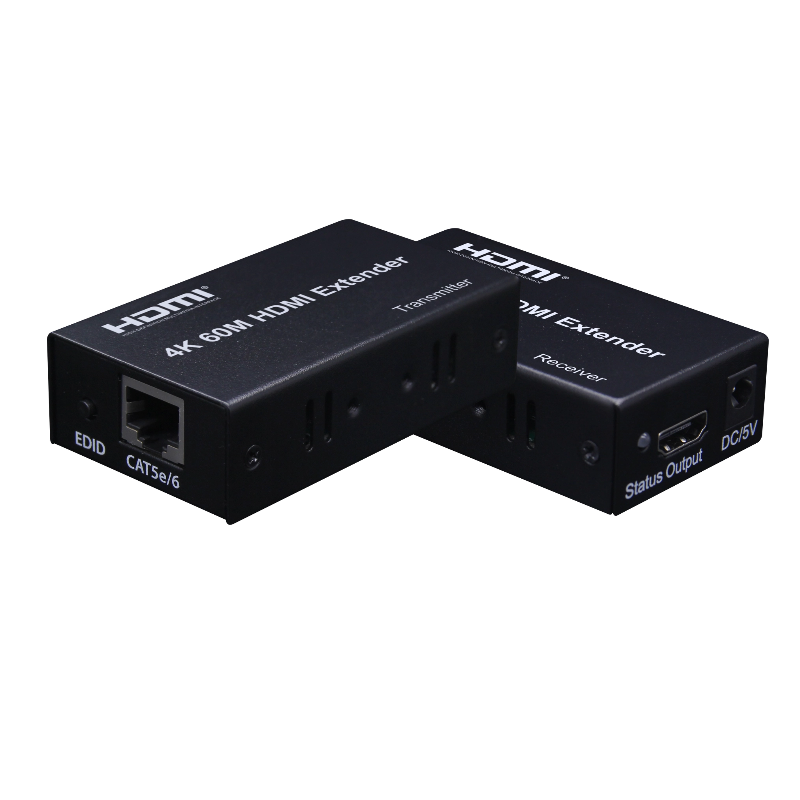

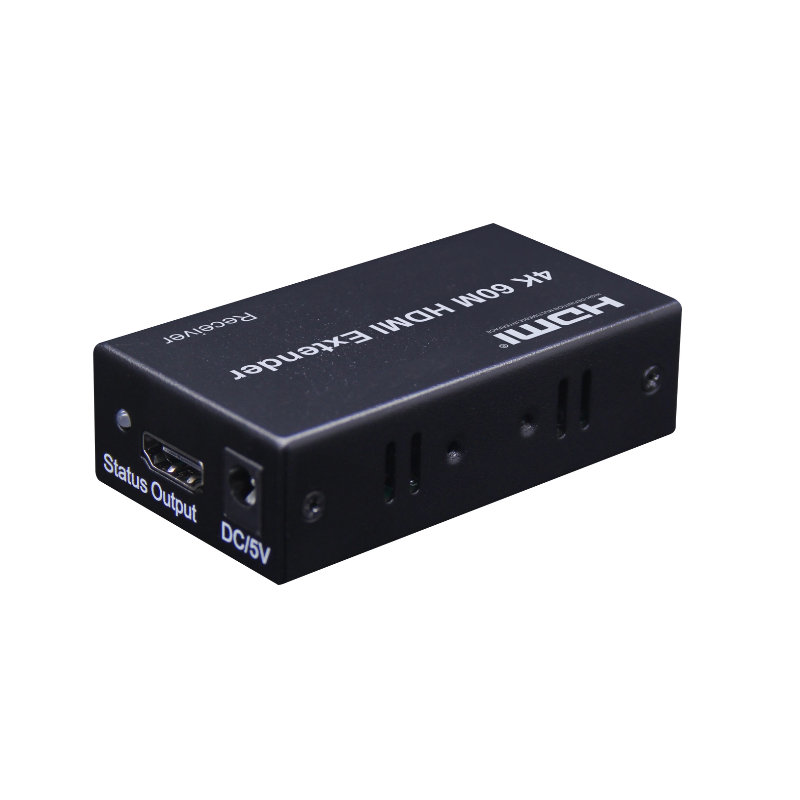

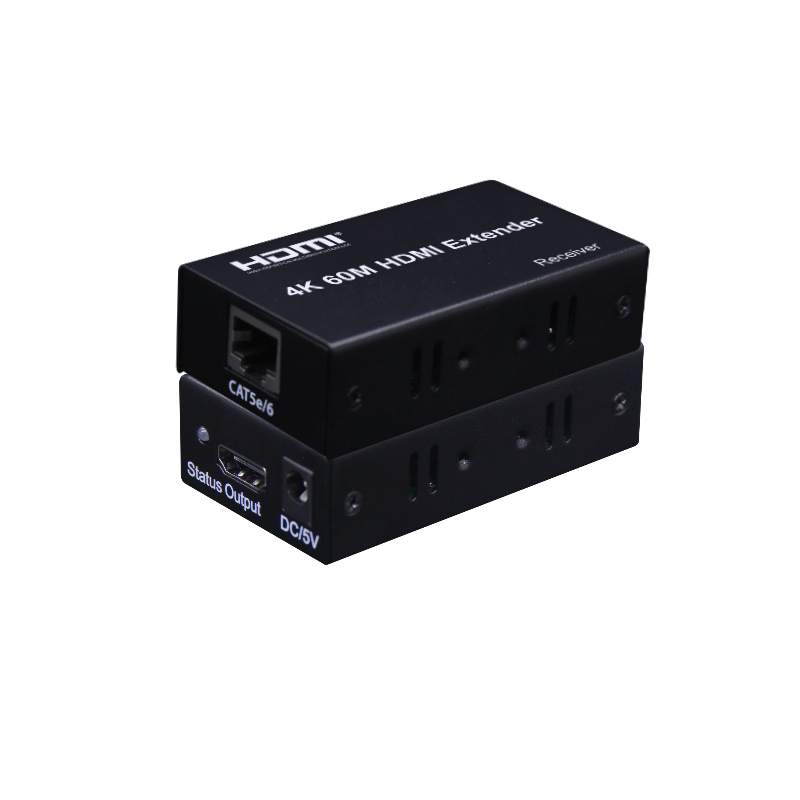

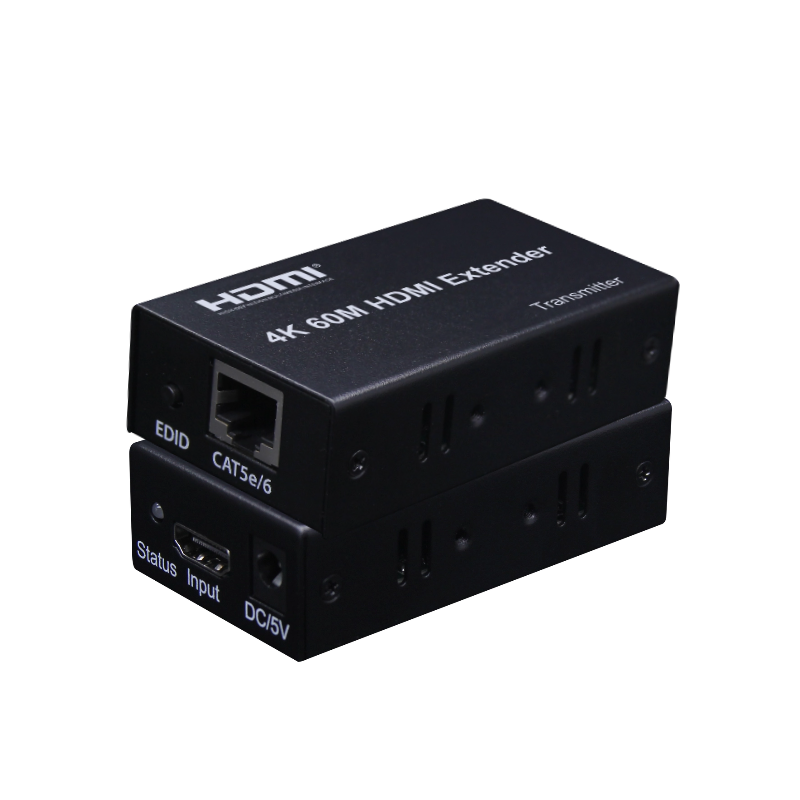

4K 60m HDMI Extender over Cat5e Cat6

4K 60m HDMI Extender over Cat5e Cat6

Model: HEX60



Products Description

Introduction:

The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to

transmit high definition signal up to 60 meters, cutting down the cost. The Extender is

designed to supply for long distance transmission of high definition signal.


Features:

1: Support HDMI1.4b, DVI1.0, HDCP1.4

2. Support highest video resolution 1080p/60Hz;

3: 60M long distance transmission:

4: Low power consumption, low temperature and high safety.

5: Support HDMI out Downscaling

Specification:

Length of CAT-6/CAT-5E cable between Rx and TX ……………............… Up to 60 meters

HDMI Input …..…………………...………............... 4K/1080p/1080i/720p/576p/576i/480p/480i

HDMI Output …..…………….…...………............... 4K/1080p/1080i/720p/576p/576i/480p/480i

Max bandwidth ……………………………………………………………………..…… 340MHz

Max baud rate ...…………….…….………………….………….……………………… 3x3.4Gbps

Input video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p

Output DDC signal ………………………………………………………..…… 5Volts p-p (TTL)

Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable

Output HDMI cable distance ....................................... ≤10m AWG26 HDMI standard cable

TX Max working current ………………………………………...………….……………. 350mA

RX Max working current …………………………………………...…………………..… 200mA

Power adapter format ...……...…… Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range ……..…………….………………….………...… (-15 to +45℃)

Operating Humidity range ………………………….….….… 5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….………………………… 81x47x22 (mm)

TX Weight …..……………………………………………..………………………........…..… 102g

RX Weight ...................................................................................................................... 103g
