Introduction

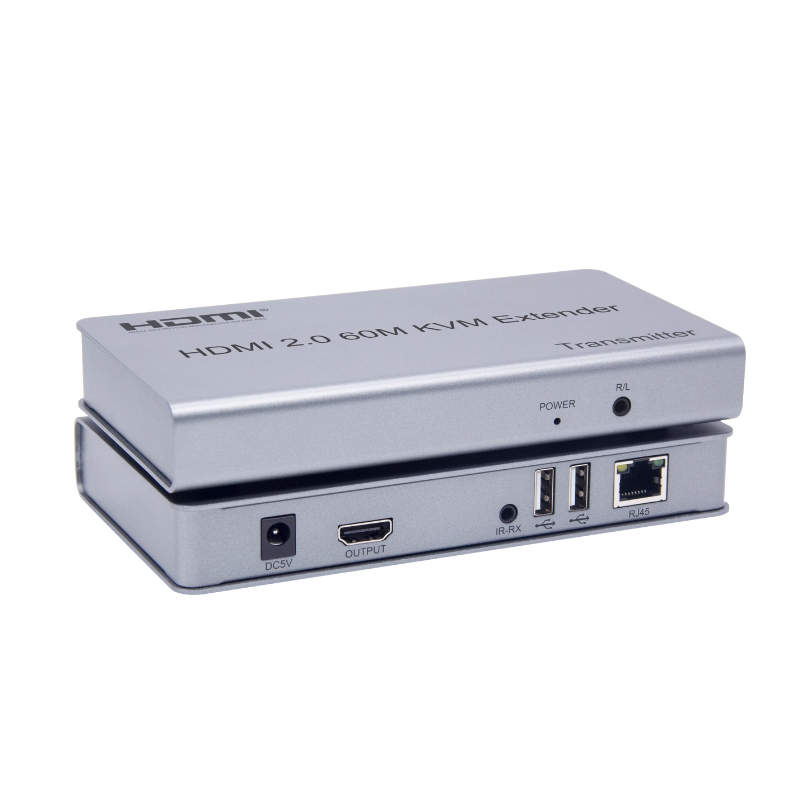

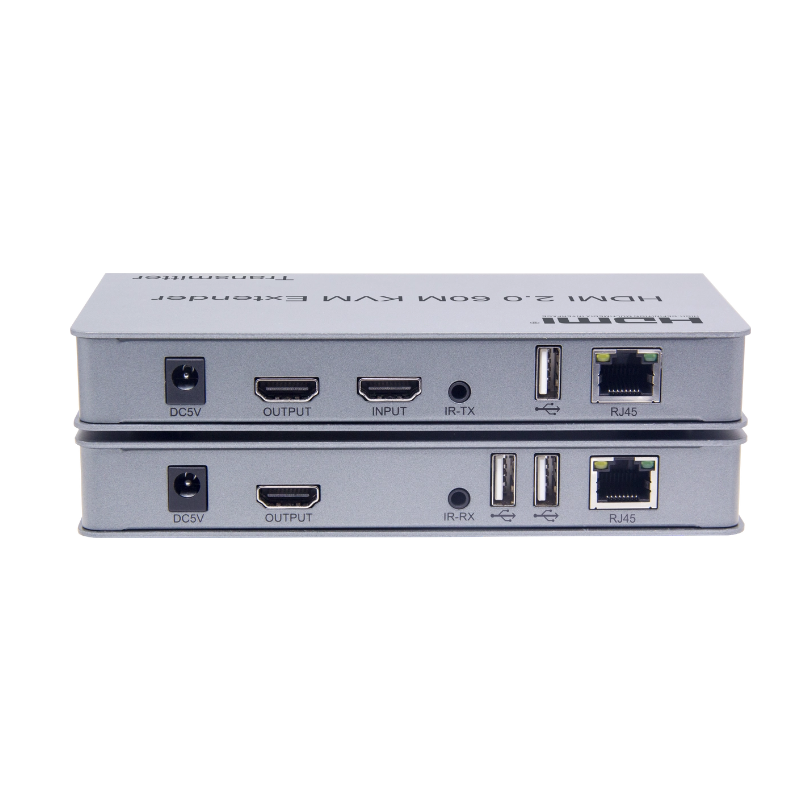

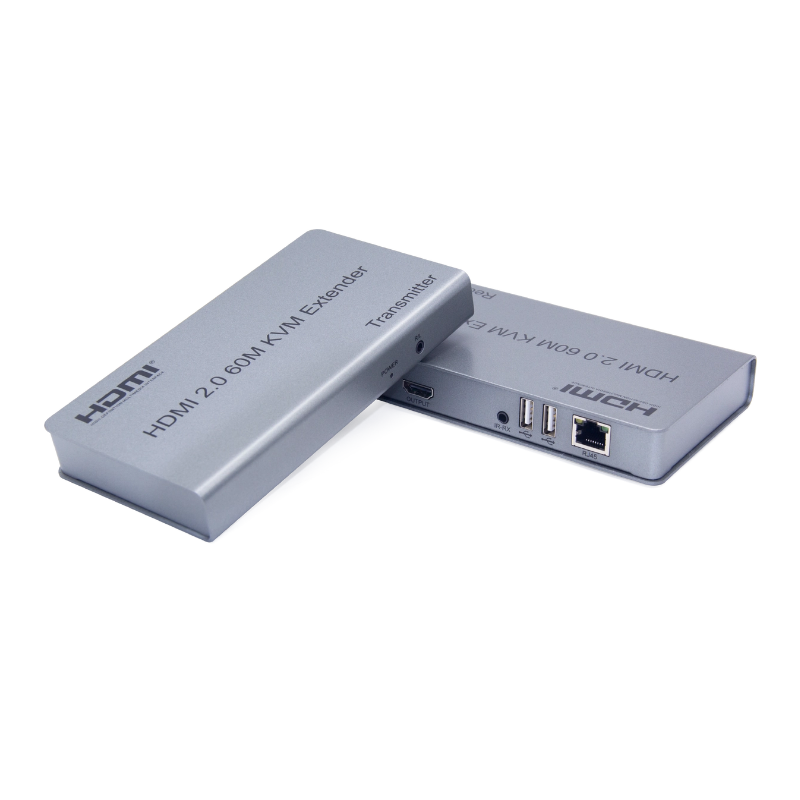

The 4K60Hz 60m HDMI Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable totransmit high definition signal up to 60 meters. The Extender is designed to supply for long

distance transmission of high definition signal.

Features

* Support HDMI 2.0/HDCP2.2;

* Support local loop-out ;

* Support 60m long distance transmission：

* Low power consumption, low temperature and high safety；

* Both the TX and RX support 3.5MM left and right audio output；

* Support IR control；

* Support mouse and keyboard extension;

* Support touch screen function

Specifications:

Length of CAT5e/CAT6 cable between Rx and TX ……………............................ 60 meters

HDMI Input …..…………………...……............ 4k@60Hz/1080p/720p/576p/576i/480p/480i

HDMI Output …..……………...….................... 4k@60Hz/1080p/720p/576p/576i/480p/480i

Max bandwidth ………………………………………………………………………….. 600MHz

Max baud rate ……………….…….………………….………….…………...………... 3x6Gbps

Input video signal ………….…………………………………………….…...... 0.5~1.5Volts p-p

Output DDC signal …………………………………………………................. 5Volts p-p (TTL)

Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable

Output HDMI cable distance ....................................... ≤10m AWG26 HDMI standard cable

TX Max working current ………………………………………...………….……………. 350mA

RX Max working current …………………………………………...…………………….. 200mA

Power adapter format ………...…... Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range ……..…………….………………………....…… (-15 to +55℃)

Operating Humidity range ………………………….….…… 5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….……………......…...… 163x87x24 (mm)

TX Weight …..……………………………………………..………………………........…… 499g

RX Weight .................................................................................................................... 494g
