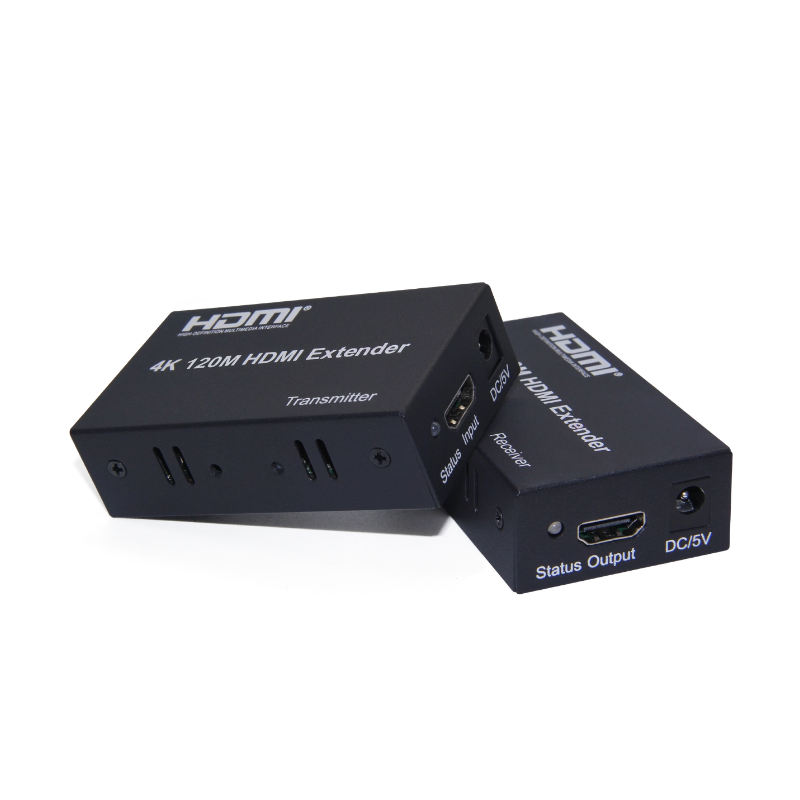

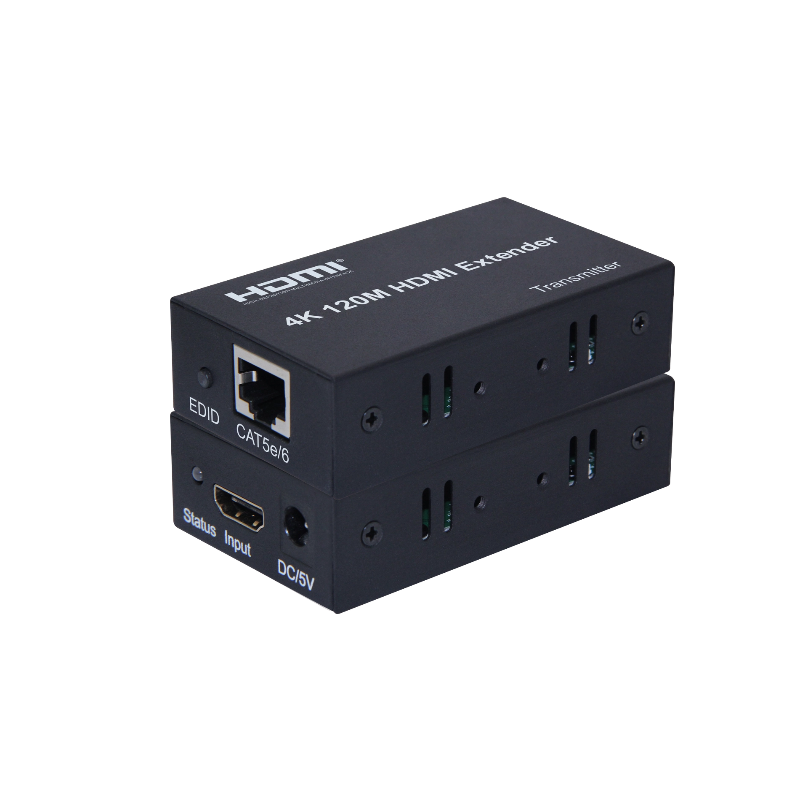

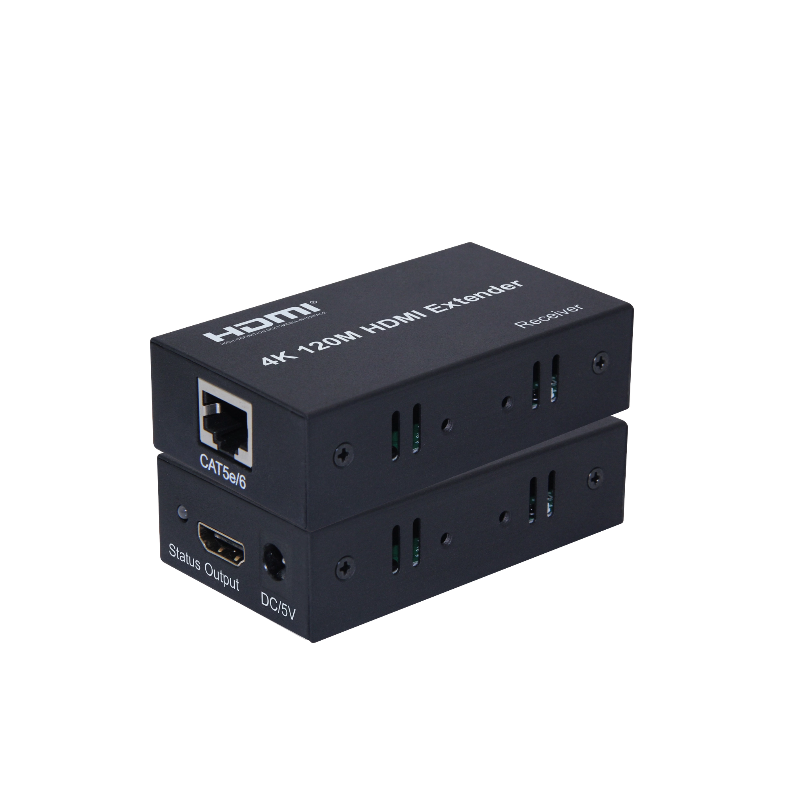

Introduction

The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to

transmit high definition signal up to 120 meters, The Extender is designed to supply for

long distance transmission of high definition signal.

Features：

* Support 120m long distance transmission：

CAT 5E/6 Cable(120M)

* Low power consumption, low temperature and high safety；

Specifications:

Length of CAT5e/CAT6 cable between Rx and TX …………….......................... 120 meters

HDMI Input …..…………………...………..................... 4k/1080p/720p/576p/576i/480p/480i

HDMI Output …..…………….….................................. 4k/1080p/720p/576p/576i/480p/480i

Max bandwidth ………………………………………………………………………….. 340MHz

Max baud rate ……………….…….………………….………….…………………... 3x3.4Gbps

Input video signal ………….…………………………………………….…...... 0.5~1.5Volts p-p

Output DDC signal …………………………………………………................. 5Volts p-p (TTL)

Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable

Output HDMI cable distance ....................................... ≤10m AWG26 HDMI standard cable

TX Max working current ………………………………………...………….……………. 350mA

RX Max working current …………………………………………...…………………….. 200mA

Power adapter format ………...…... Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range ……..…………….……………………….......…… (0 to +45℃)

Operating Humidity range ………………………….…..…… 5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….……………........……… 84x47x22(mm)

TX Weight …..……………………………………………..………………………........…… 101g

RX Weight .................................................................................................................... 101g
