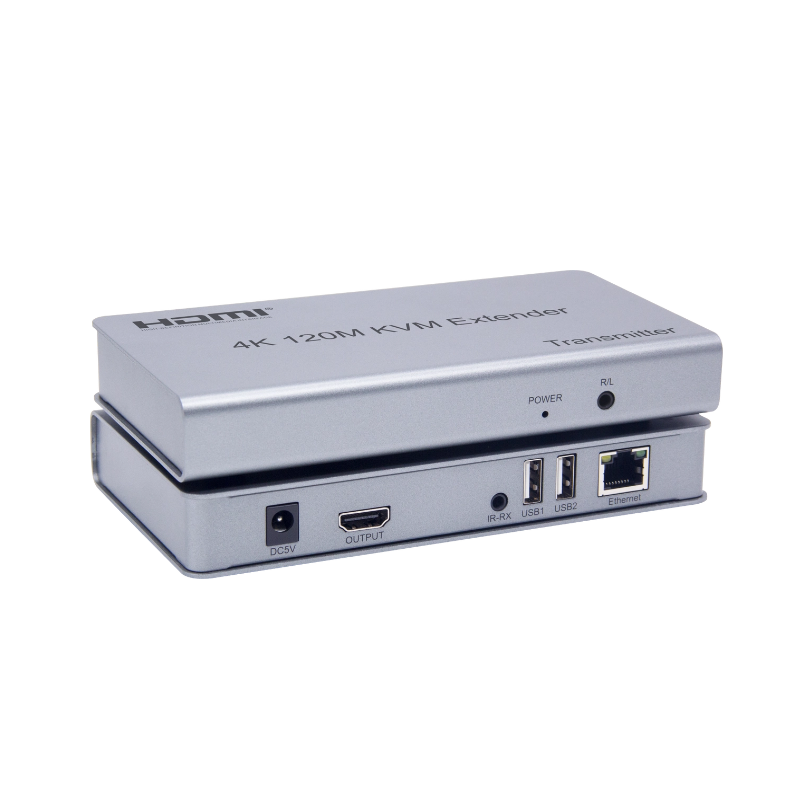

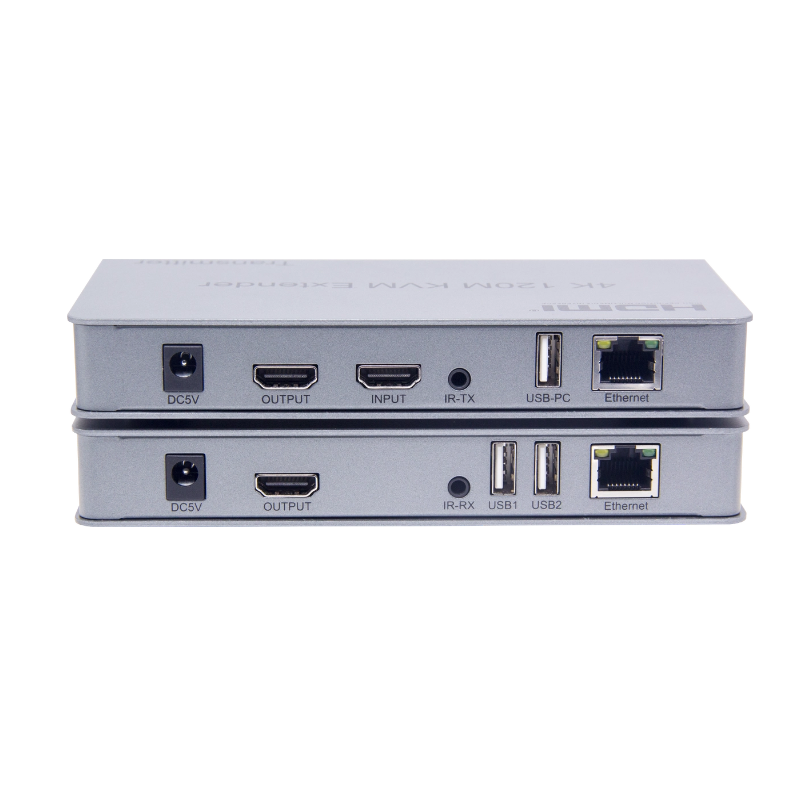

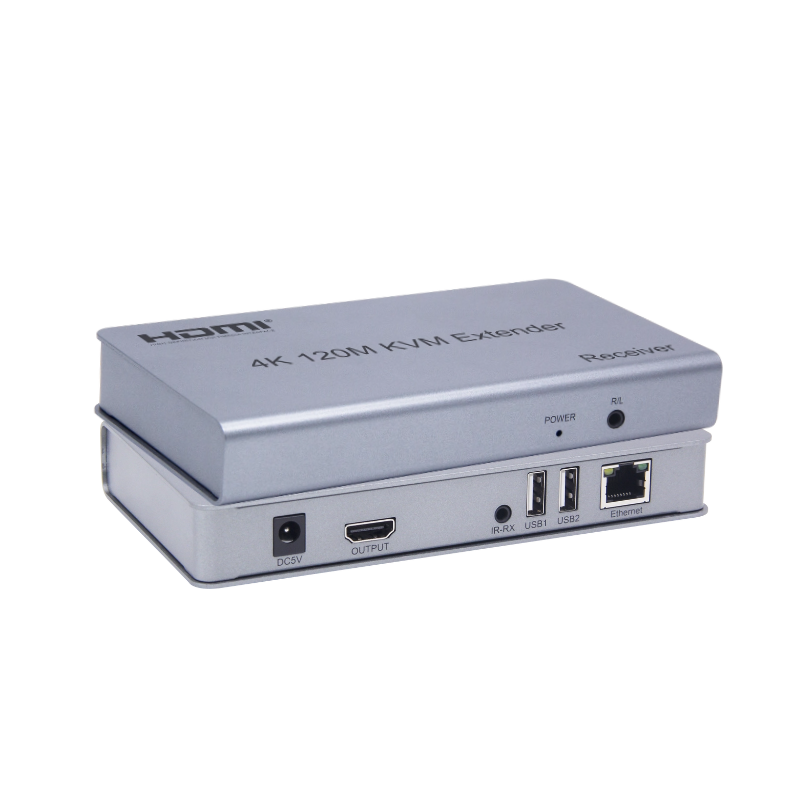

4K 120M HDMI KVM Extender

4K 120M HDMI KVM Extender

Model: HEX120-KVM





Products Description

Introduction

The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable totransmit high definition signal up to 120 meters, cutting down the cost. The Extender is

designed to supply for long distance transmission of high definition signal.

Features:

* Support HDMI 1.4/HDCP1.4;

* Support local loop-out ;

* Support 120m long distance transmission:

* Low power consumption, low temperature and high safety;

* Both the TX and RX support 3.5MM left and right audio output;

* Support IR control;

* Support USB mouse and keyboard extension;

* Support USB port touch screen function

Specifications:

Length of CAT5e/CAT6 cable between Rx and TX …………….......................... 120 meters

HDMI Input …..…………………...……….................... 4k/1080p/720p/576p/576i/480p/480i

HDMI Output …..…………….….................................. 4k/1080p/720p/576p/576i/480p/480i

Max bandwidth ………………………………………………………………………….. 340MHz

Max baud rate ……………….…….………………….………….…………………... 3x3.4Gbps

Input video signal ………….…………………………………………….…...... 0.5~1.5Volts p-p

Output DDC signal …………………………………………………................. 5Volts p-p (TTL)

Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable

Output HDMI cable distance ....................................... ≤10m AWG26 HDMI standard cable

TX Max working current ………………………………………...………….……………. 350mA

RX Max working current …………………………………………...…………………….. 200mA

Power adapter format ………...…... Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range ……..…………….………………………....…… (-15 to +55℃)

Operating Humidity range ………………………….….…… 5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….………….....….…...… 163x87x24 (mm)

TX Weight …..……………………………………………..………………………........…… 499g

RX Weight .................................................................................................................... 494g
