H.264 HDMI 150M IP Extender over cat5e cat6 1080P

H.264 HDMI 150M IP Extender over cat5e cat6 1080P

Model: HEX150





Products Description
Introduction

150M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to 150 meters away from your DVD or computer source by using one CAT5e/6 cable.

At the same time, it’s convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-multi point mode and cascade connection mode .


Feature

* H.264 code transmission, transmission rate 16Mbps;

* Support point-to-point mode, one point-to-multi point mode and cascade connection mode;

* 802.3 Ethernet standard;

* Support IR remote control;

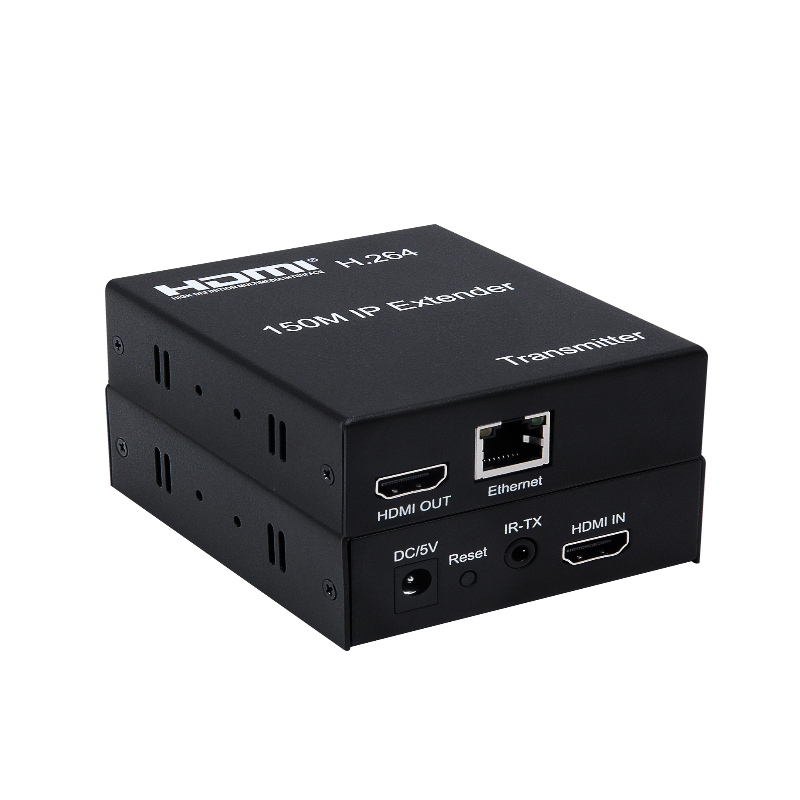

* The transmitter support HDMI loop-out function;

* The design of pure hardware, plug and play, no need for additional software.


Specification

HDTV Resolutions................................................................................ 480p,720p,1080p

Audio......................................................... Sample rate:32kHz,44.1kHz and 48kHz code

IR remote control...................................................................................... 38 KHz(NEC)

Power adapter.................................................................................................. DC:5V/1A

The Max Power consumption............................HDMI sender:2.5W HDMI receiver:2W

Size(L-W-H)...................................................................................................93*79*27mm

Weight..................................................................................................................228g x 2

Operating Temperature/Humidity.......................0℃-45℃/10%-80%RH(no condensation)

Storage Temperature/Humidity.........................-10℃-70℃/5%-90%RH(no condensation)

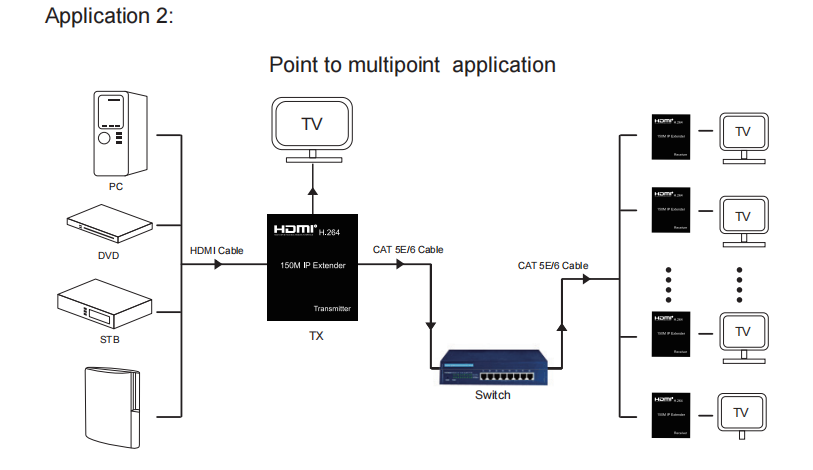

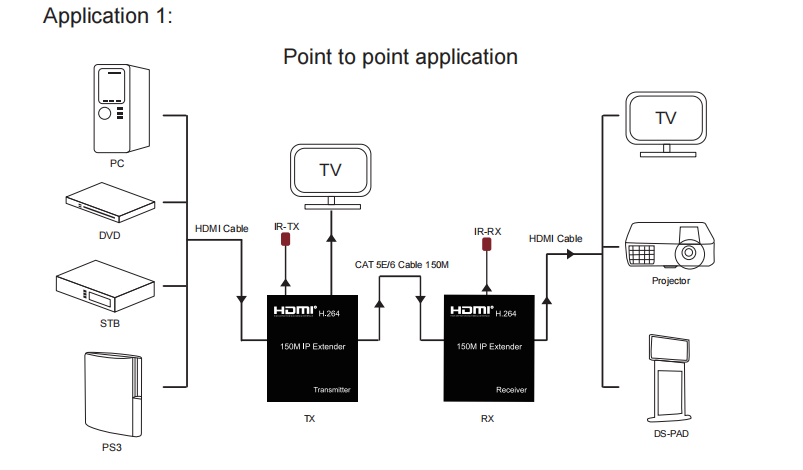

Application diagrams
