4K 150M HDMI KVM Extender over IP

4K 150M HDMI KVM Extender over IP

Model: HEX150-KVM





Products Description

Introduction

The 150m 4K HDMI IP extender can transmit 4K HDMI high-definition video from  your DVD, player, PC and other devices by CAT5E / 6 cable, the max distance up to
150 meters and support 4Kx2K@30Hz.

It's convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-many point and cascade connection mode . It can be used in conference

rooms, squares, stations and so on.


Features

* Support point-to-point mode, one point-to-multi point mode and cascade connection mode;

* Support mouse and keyboard ;

* Support unidirectional IR extension;

* Support the max resolution 3840×2160/30Hz;

* Lossless video compression, support HD display;

* Video latency time <100us;

* Pure hardware design, plug and play, no need to install additional software.


Specifications

HDMI Resolution………………………………..…………….……….…..Up to 3840x2160/30Hz

Support video format ……………………………………..……....……...…8/10/12 bit deep color

Audio format……………………………………………………........……… LPCN, Dlby, DTS, etc

The max working current……………… …………………………...……...…TX 420mA,RX 480mA

Dimension(L-W-H)…..……………………………………………....………………...122×84×19(mm)

Weight………………………………………………………………………………...…...TX: 173g,RX:176g

Power adapter format.........……......…..Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A

Working temperature / humidity……........0℃ ~ 45℃ / 10% - 80%RH(No condensation)

Storage temperature / humidity……..…-10℃ ~ 70℃ / 5% - 90%RH(No comdensation)

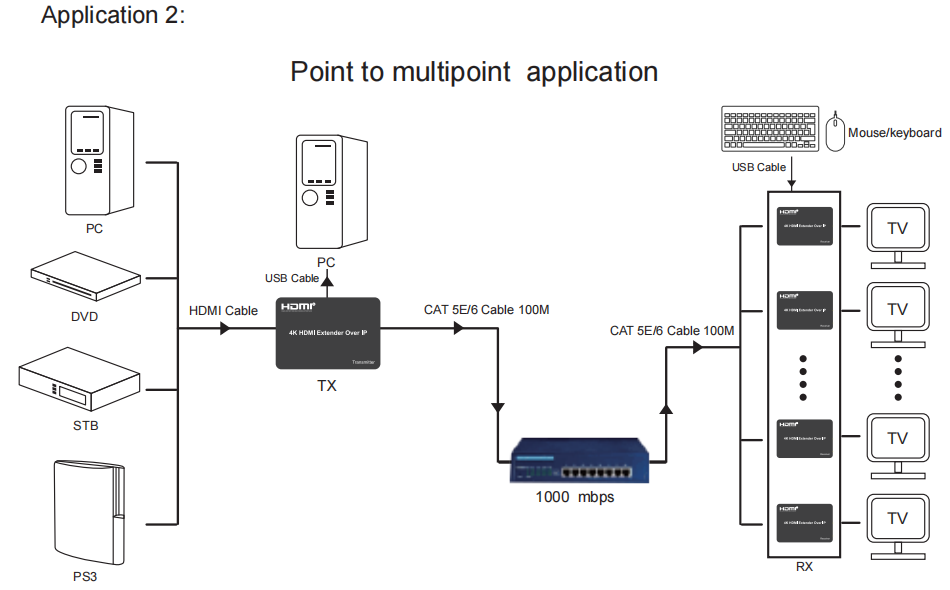

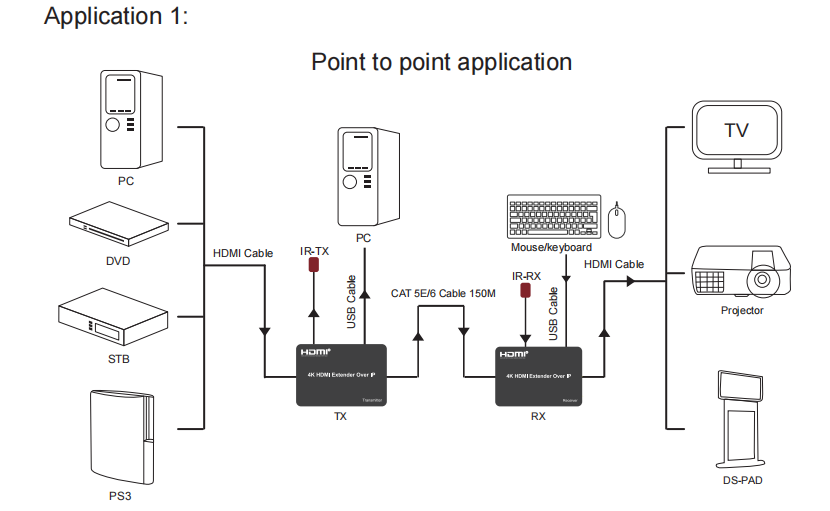

Application diagrams
