Introduction

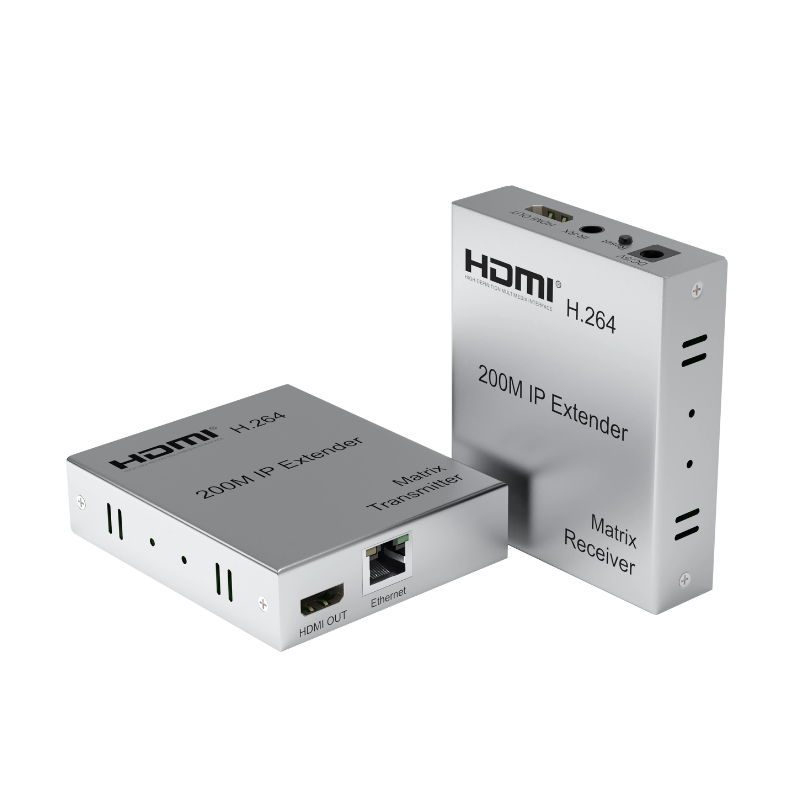

 200M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display

with the high resolution up to 200 meters away from your DVD or computer source by

using one CAT5e/6 cable.

At the same time, it’s convenient to transmit HDMI audio and video source by

point-to-point mode, multipoint-to-multipoint mode and cascade connection mode .

Features

* H.264 codetransmission, transmission rate 8.1Mbps；

* Support point-to-point mode, multipoint-to-multipoint mode and cascadeconnection mode；

* 802.3 Ethernet standard；

* Support IR remote control；

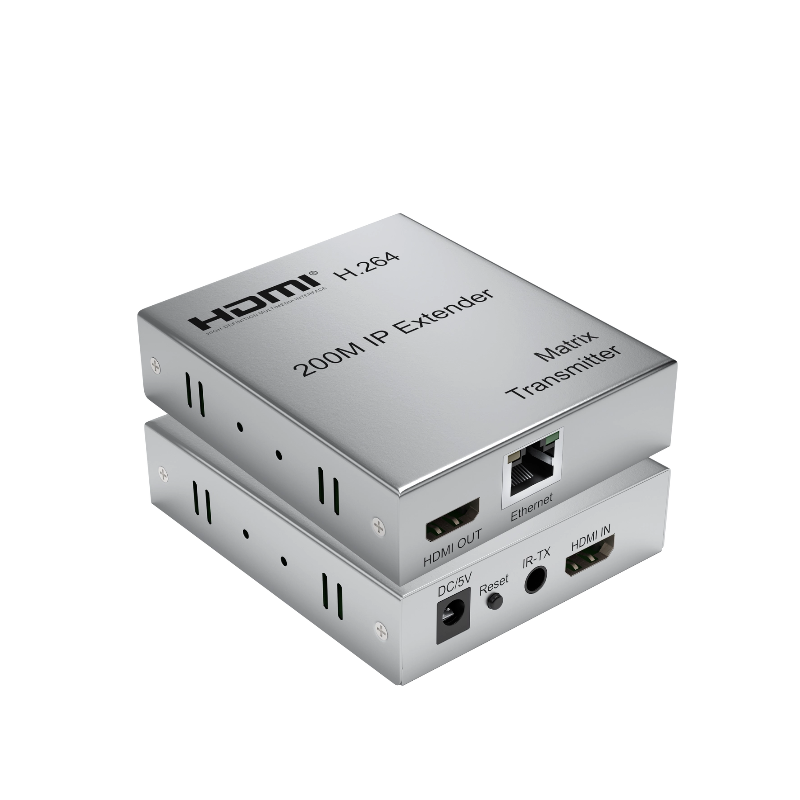

* The transmitter support HDMI loop-out function；

* Support software management during multiple-to-multiple transfers.

Specifications

HDTV Resolutions................................................................................ 480p,720p,1080p

Audio......................................................... Sample rate:32kHz,44.1kHz and 48kHz code

IR remote control.......................................................................................... 38 KHz;NEC

Power adapter................................................................................................... DC:5V/1A

The Max Power consumption................................HDMI sender:3W HDMI receiver:3W

Size(L-W-H)...................................................................................................93*79*27mm

Weight..................................................................................................................228g x 2

Operating Temperature/Humidity.......................0℃-45℃/10%-80%RH(no condensation)

Storage Temperature/Humidity.........................-10℃-70℃/5%-90%RH(no condensation)

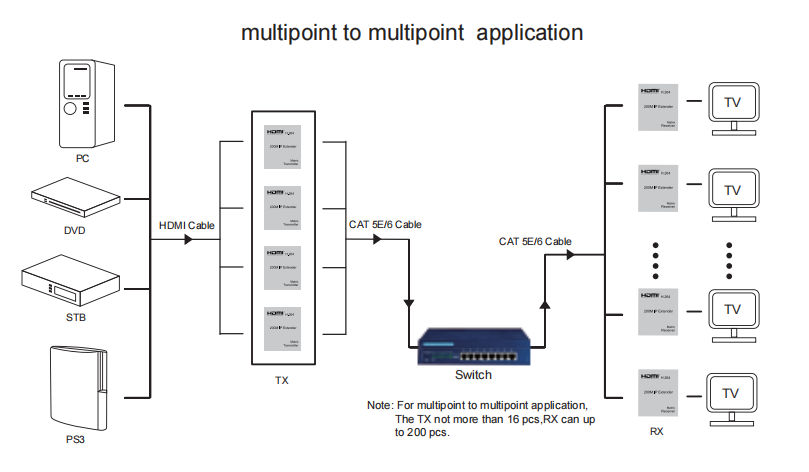

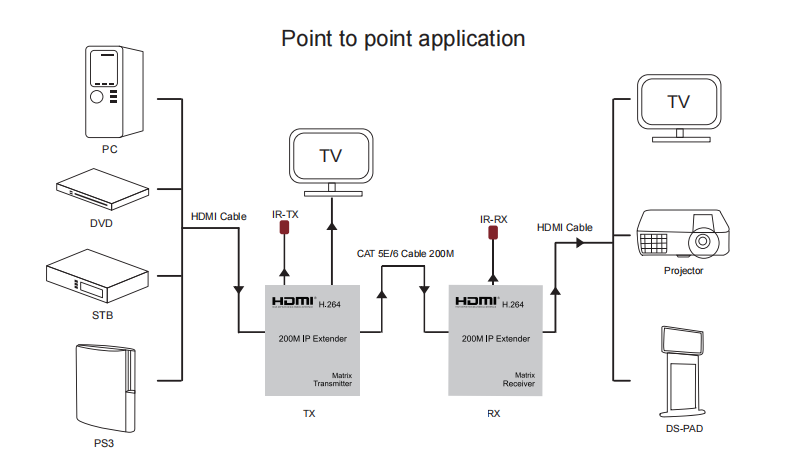

Application diagrams
