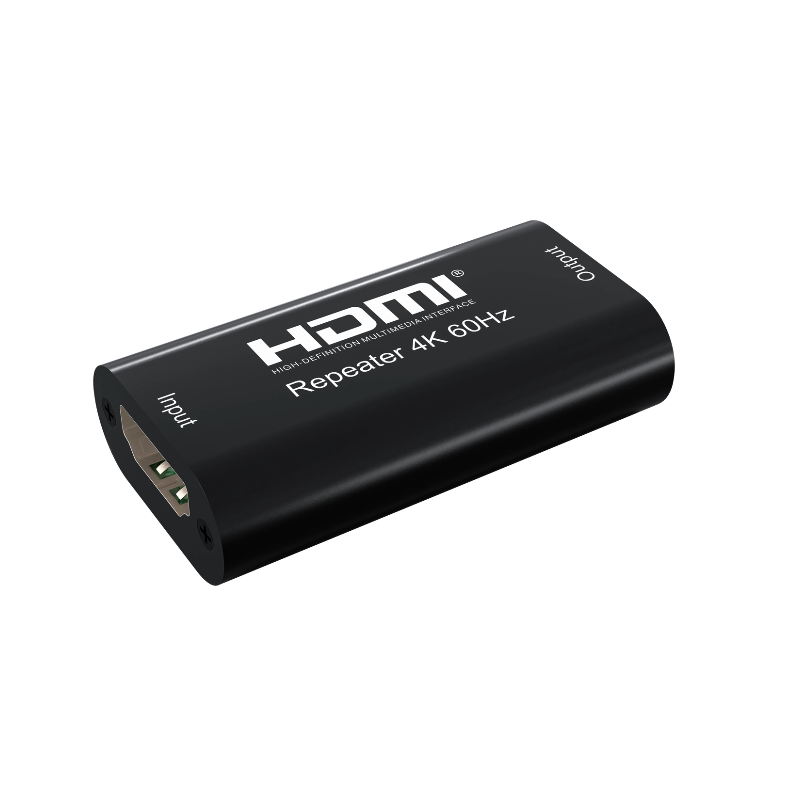

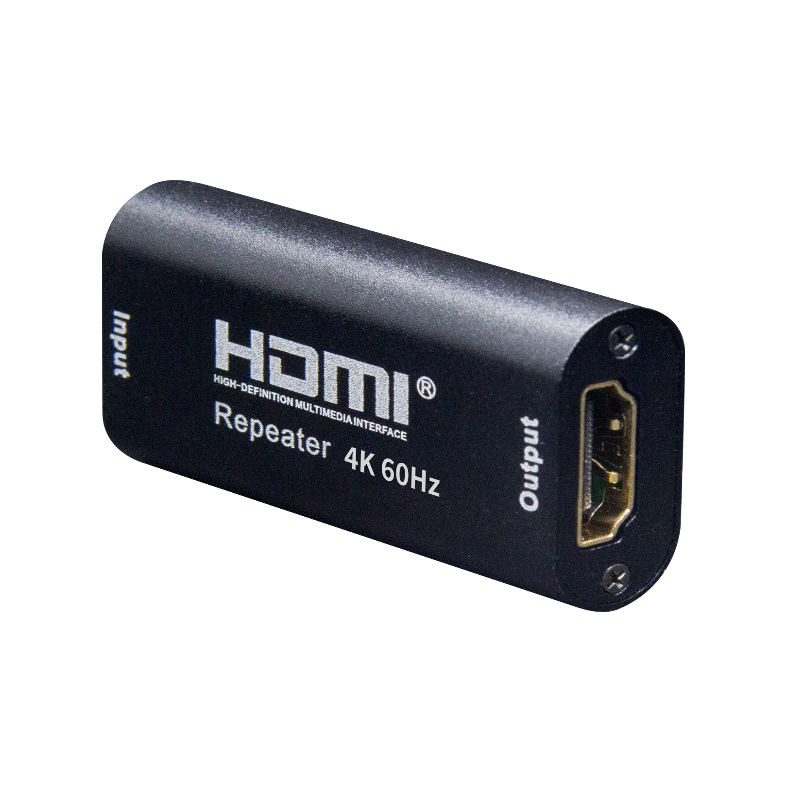

HDMI Repeater 4K 60Hz

HDMI Repeater 4K 60Hz

Model: HRE01



Products Description

Introduction:

This HDMI repeater can realize signal enhancement by signal equalization and reorganization,

so that the signal transmission can reach a longer distance. This HDMI repeater can support

the required resolution up to 3840x2160 / 60Hz.


Features:

* Support HDMI 4k 60Hz.

* Support 3D video format

* Support high resolution up to: 3840x2160/60Hz

* Support highest rate of 18G and TMDS clock can be up to 600 MHz

* Support 8/10/12/16 bit deep color

* When the standard AWG26 cable is used, the input transmission distance can reach 40m (3840 * 2160 / 30Hz)


Specifications:

HDMI resolution ……….......………..……….…………………..……….……up to 3840*2160/60Hz

Support video format ………….…….………….………………………8/10/12/16 bit Deep color

Support audio format…...……….….…….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………..…………………………..…………………….600MHz

Max baud rate……………….……….…….…….…….…….…….….………….…….……….... 3X6Gbps

Input cable distance.……….…….…….………………… Input 5m, output 5m (4k60hz), input

Max working current…………………….…….…….…….……………………...……….……....300mA

Operating Temperature range………………....….…….…….……..….....……(-15℃ to +55℃)

Operating Humidity range....................….…….…......5%to 90%RH (No Condensation)

Dimension (L x W x H)…………….......…….…….…….…….…...............………….51x28x13 (mm)

Weight…….…..……………………..........……….…….…….…….…….……..…….……………………25g
