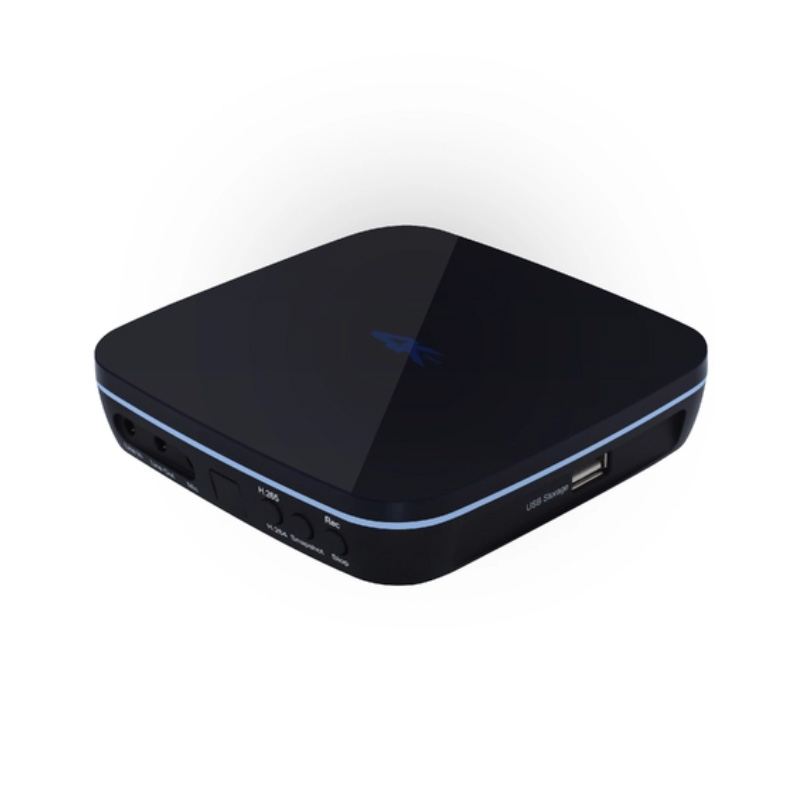

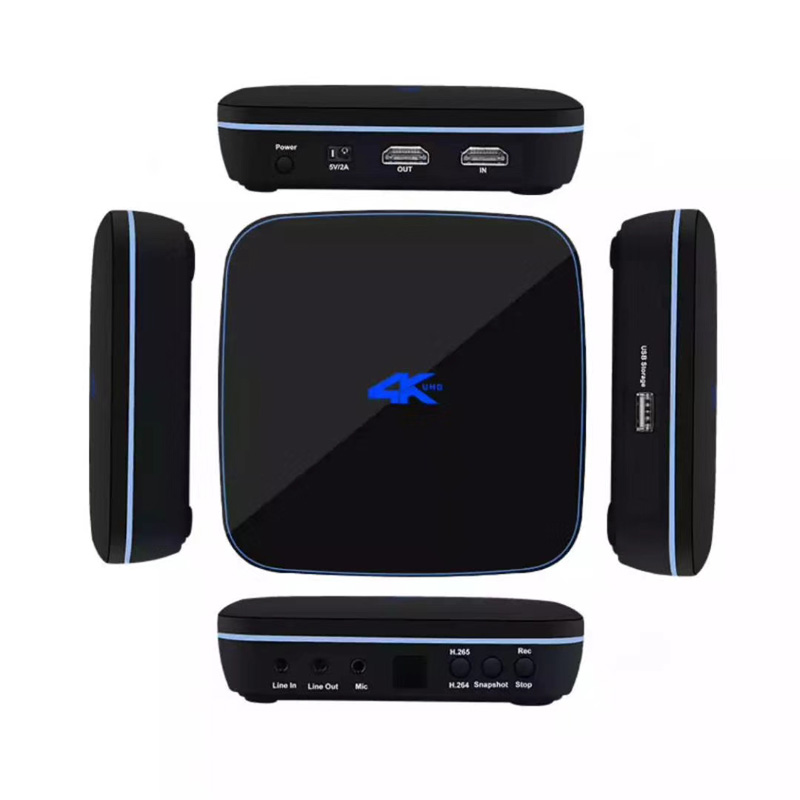

4K H.264 H.265 Video Recorder Box support Pre-recording and Playback
Products Description
Product Specification:
| Input | 3840x2160(60Hz,30Hz, 24Hz), 640x480,720x480, 720x576, 800x600, 1027x768, 1280x720, 1280x1024, 600x1200, 1920x1080 |
| Output | 3840x2160(30Hz, 25Hz), 640x480,720x480, 720x576, 800x600, 1027x768, 1280x720, 1280x1024, 600x1200, 1920x1080 |
| Recording | Up to 3840x2160(30fps) |
| Output format | H.264, H.265 |
| Video strandard (Input) | HDMI 2.0 standard |
| Input signal | HDMI, Line in, Mic |
| Output signal | HDMI (Pass through), USB, Line out |
| Max transmission | 480 megabytes |
| Bitrate | Max: 20Mbps |
| Weight and Dimensions | 8.5oz (4.6x4.6x1.1 inches |
File system limitations:
FAT: The single file can be 2GB at most. The maximum capacity of the partition is 2GB.
FAT32: The single file can be 4GB at most. The maximum capacity of the partition is 128GB.
NTFS: The single file can be 2TB at most. The maximum capacity of the partition is 2TB.
exFAT: Theoretically, there’s no limitation on the single file’s size and maximum capacity of the partition.
Resolution support:
| Input resolution | Output resolution | Recorded resolution |
| 3840x2160(60Hz) | 1920 x1080(60Hz) | 1920 x1080(60Hz) |
3840x2160(50Hz) | 1920 x1080(50Hz) | 1920 x1080(50Hz) |
3840x2160(30Hz) | 3840x2160(30Hz) | 3840x2160(30Hz) |
3840x2160(24Hz) | 3840x2160(25Hz) | 3840x2160(24Hz) |
| 1920 x1080(60Hz) | 1920 x1080(60Hz) | 1920 x1080(60Hz) |
| 1920 x1080(50Hz) | 1920 x1080(50Hz) | 1920 x1080(50Hz) |
| 1080i60 | 1080i60 | 1080p30.1080i50 |
| 1080i50 | 1080p25 720p60 | 720p60 |
576p50 | 576p50 | 576p50 480p60 |
