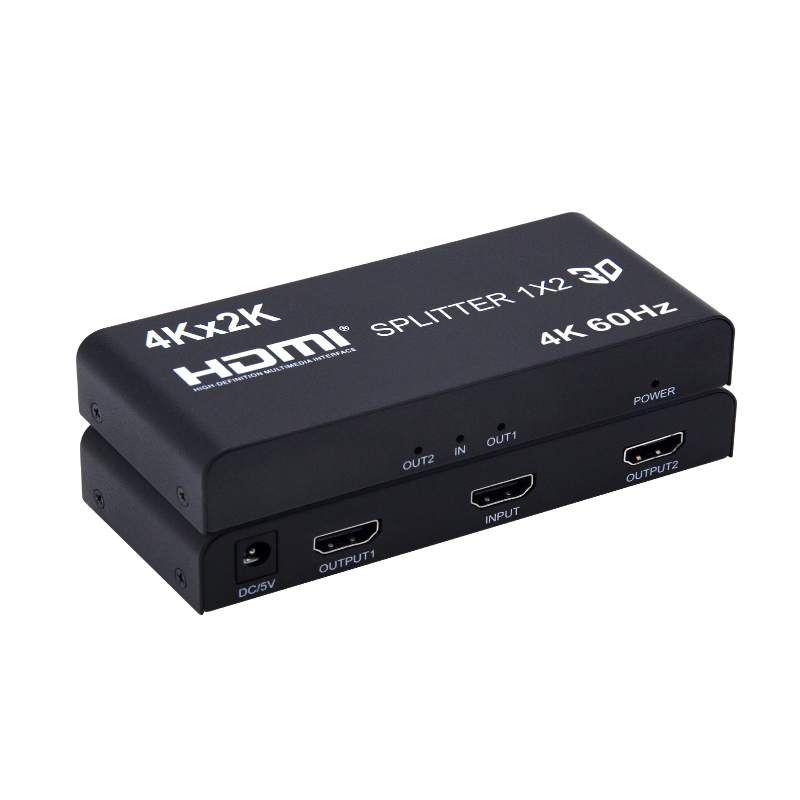

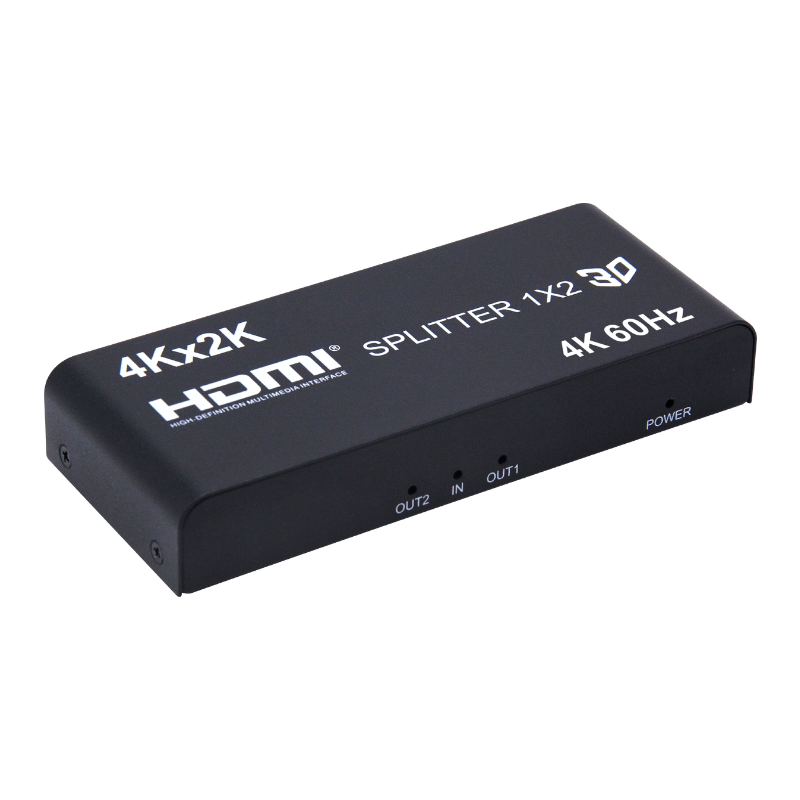

HDMI 2.0 Splitter 1x2 4K60Hz

HDMI 2.0 Splitter 1x2 4K60Hz

Model: HSP102-V2.0



Products Description

The 1x2 HDMI Splitters uses a single HDMI source,accessing to multiple HDMI sinks.It allows one HDMI device to be split easily

to 2 HDMI compatible monitors or projectors.In addition,it can be placed at the end of a long HDMI cable to regenerate the

HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160/60Hz.


Features:

* Support HDMI 2.0b

* Support Full 3D

* Support HDMI resolution up to 3840x2160/60Hz

* Support the max baud rate of 6G and max bandwidth of 600Mhz

* Support deep color 8/10/12bit

* When you use AWG26 HDMI standard cable , support input up to 15 metres ,output up to 20 metres(1080p and 4K/30Hz resolution)

When you use AWG26 HDMI standard cable, support input up to 5 metres, output up to 5 metres(4k/60hz)

* Displaying single source, multi-output high-definition signal source from DVD player A/V receiver, set-top box

* 5V/1A power adapter


Specifications:

HDMI version ……………………………………..…………………………. HDMI 2.0b

HDMI resolution ………………………..………….……….……up to 3840x2160/60Hz

Support video format ……………………………...……..………8/10/12bit Deep color

Support audio format…………….…….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth……………………….…………………………………………….600MHz

Max baud rate……………….…….…………....………..….……………………..6Gbps

Input cable distance.…………….(1080p,4K/30Hz resolution)≤15m,(4k 60hz resolution)≤5m AWG26 HDMI standard cable

Output cable distance……………(1080p,4K/30Hz resolution)≤20m,(4k 60hz resolution)≤5m AWG26 HDMI standard cable

HDMI input……………………………………....…………………………………1 HDMI

HDMI output…………………………………..……………………………………2 HDMI

Max working current……………………………………..………………………....450mA

Power adapter….input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1A

Operating Temperature range……………………….….……………(-15℃to +55℃)

Operating Humidity range…………………….……….5 to 90%RH (No Condensation)

Dimension (L x W x H)……………….............………….....……….128x53x23.5 (mm)

Weight…….…..……………………………………………..…….……………………139g
