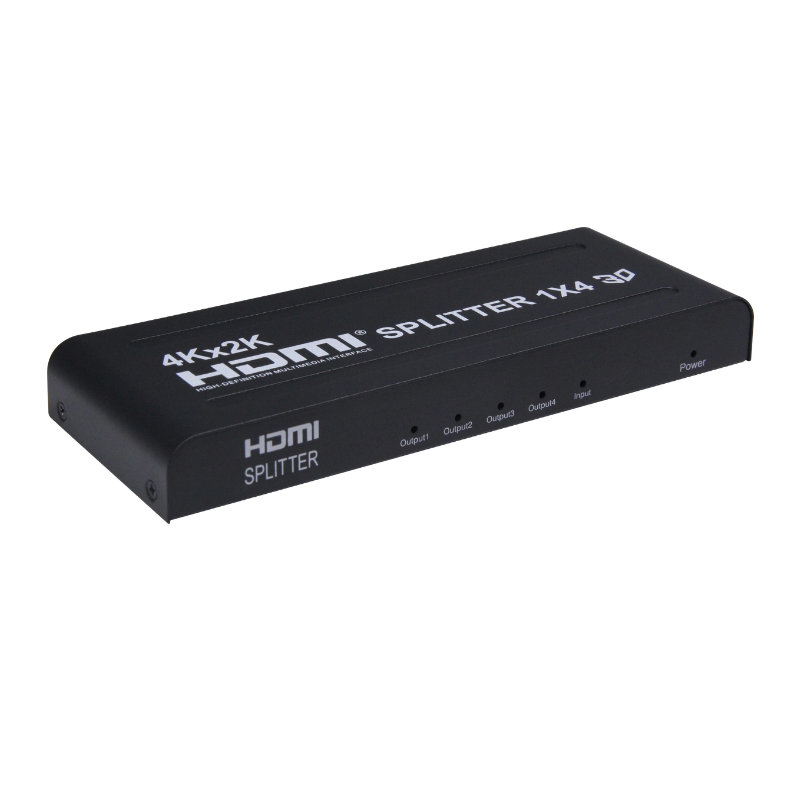

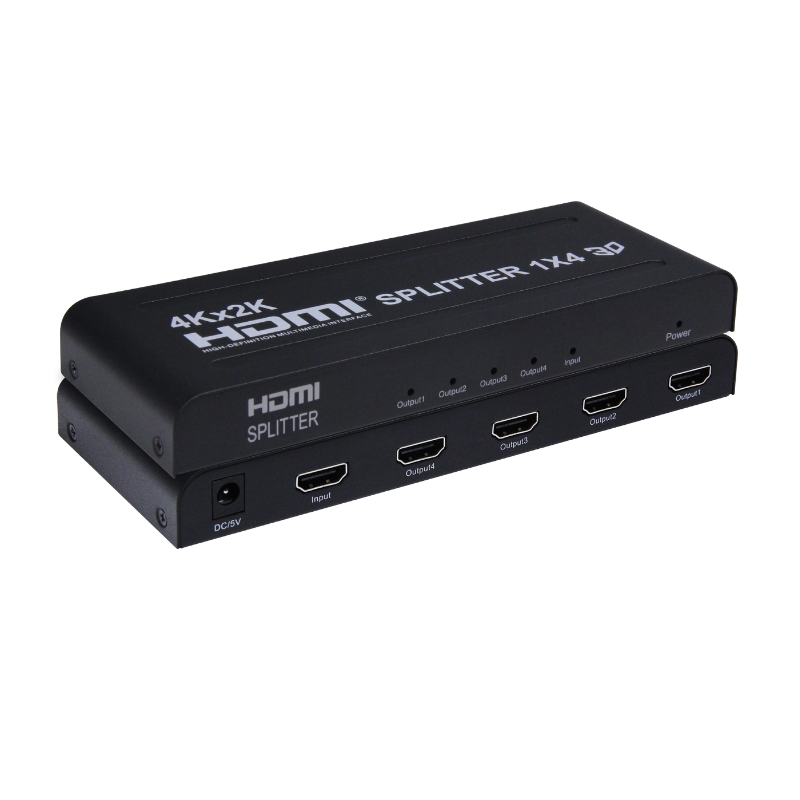

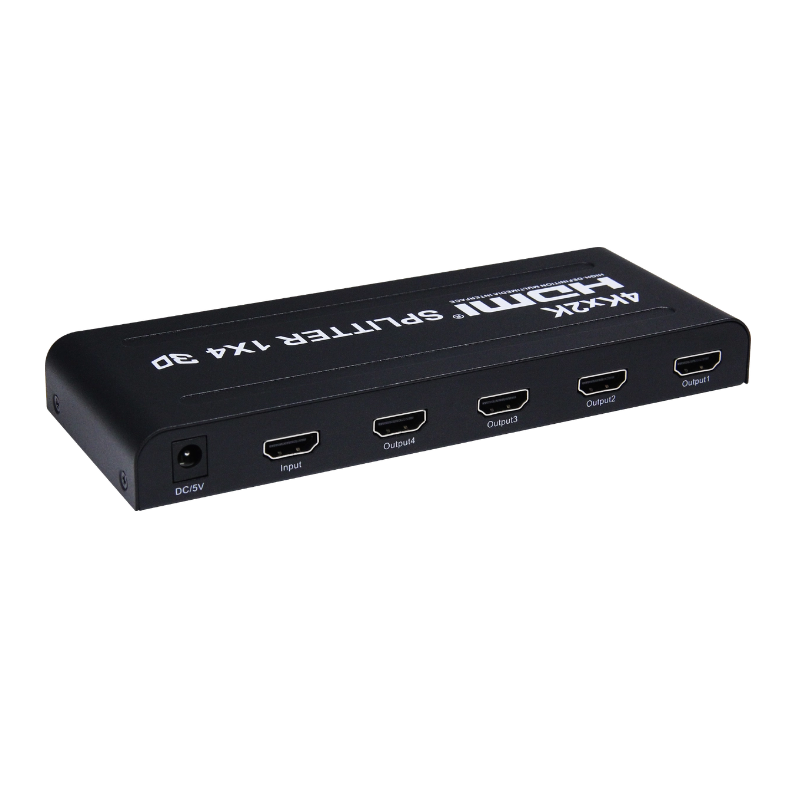

4K HDMI Splitter 1x4

4K HDMI Splitter 1x4

Model: HSP104



Products Description

Introduction

This hdmi 4K 1x4 splitter use a single HDMI source,accessing to multiple HDMI sinks .It

allows one HDMI device to be split easily to four HDMI compatible monitors or projectors.

In addition,It can also be placed at the end of a long HDMI cable to regenerate the HDMI

signal. The resolution of this hdmi splitter can be up to 3840X2160/30Hz.


Features

* Support HDMI 1.4b version

* Support 3D video format

* Support high resolution up to 3840x2160/30Hz

* Support highest rate of 3.4 G and TMDS clock can be up to 340 MHz

* Support 8/10/12 bit deep color

* Support AWG26 HDMI standard cable: input up to 20 meters,output up to 20

 meters.(when the resolution is 4K, input up to 15 meters, output up to 15 meters.)

* Support one single HDMI source,accessing to multiple HDMI sinks, the source

 can be DVD player, A/V receiver, set top box and etc.

* 5V/1A power adapter


Specifications

HDMI version .......…………………………………………………………………….. HDMI 1.4b

HDMI resolution ………………………………..………..…….....…..… up to 3840*2160/30Hz

Support video format ………………………………..………………...... 8/10/12 bit deep color

Support audio format ….…………..……….… DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth ………………………………………………………………..…………. 340MHz

Max baud rate ...…………….…….………………….………………………………….. 3.4Gbps

Input cable distance .…………………… (1080p resolution) ≤20m,

 (4K resolution)≤15m AWG26 HDMI standard cable

Output cable distance ………………… (1080p resolution) ≤20m,

 (4K resolution)≤15m AWG26 HDMI standard cable

Max working current ……………………………………………………………………… 500mA

Power adapter format .………...…… input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A

Operating Temperature range ………………………..…………….…………… (-15 to +55℃)

Dimension (L x W x H) ………………...............……………………..….……178x67x23 (mm)

Weight …….…..………………………………………………………..…….………….....… 230g
