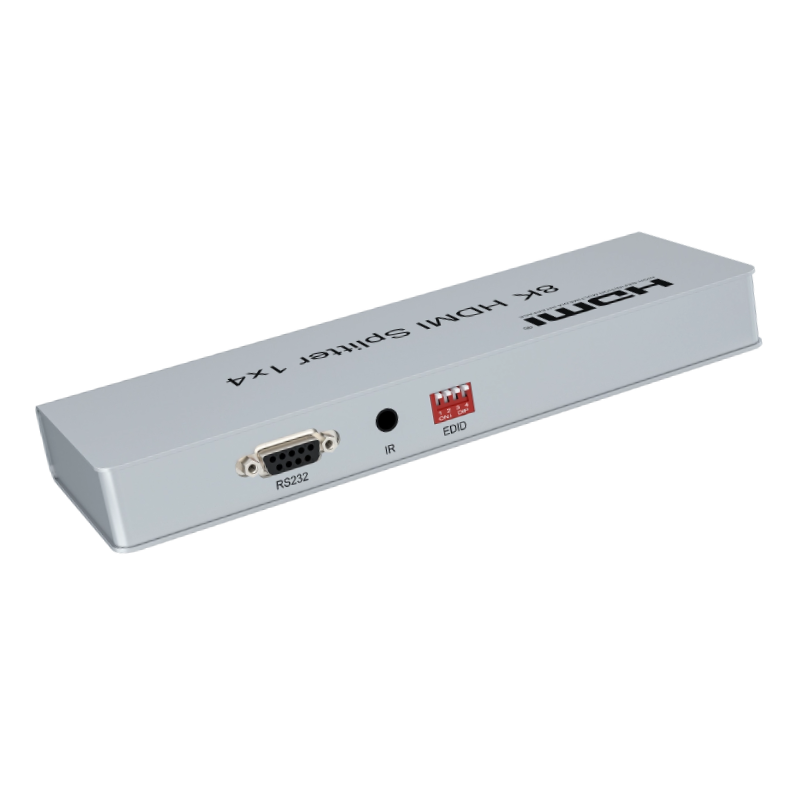

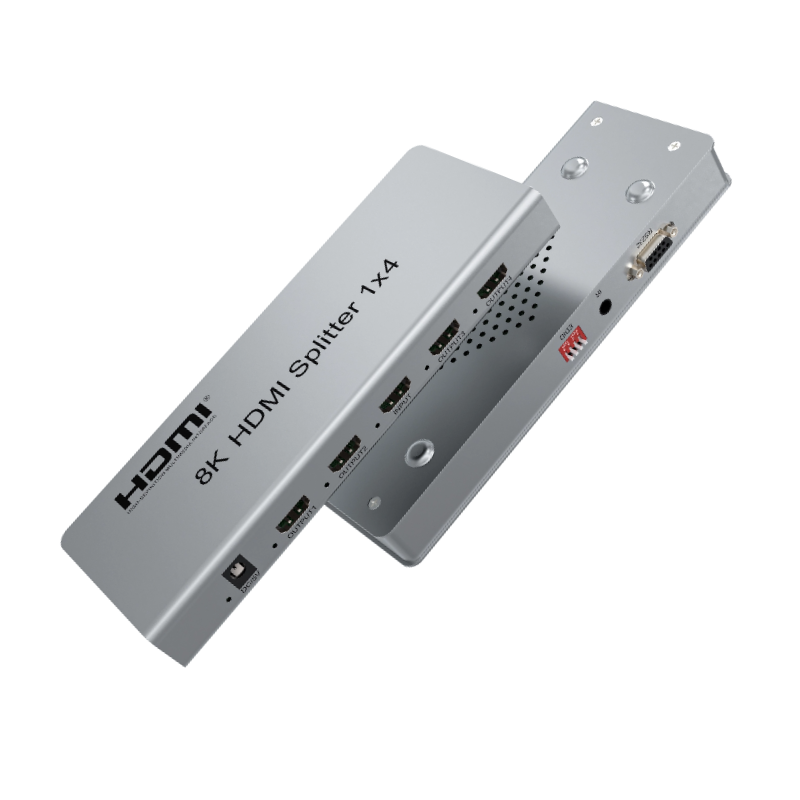

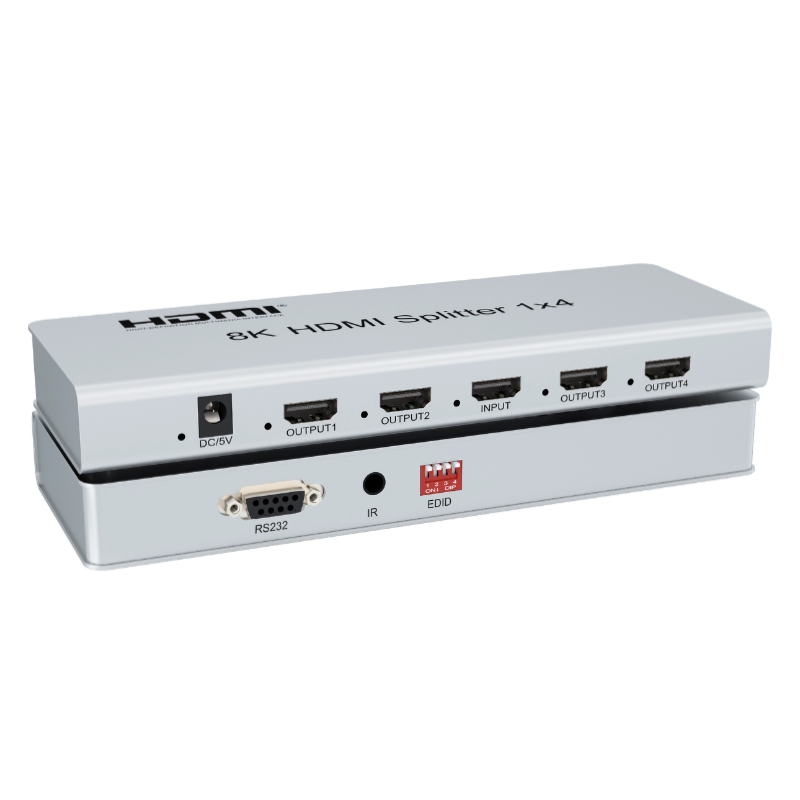

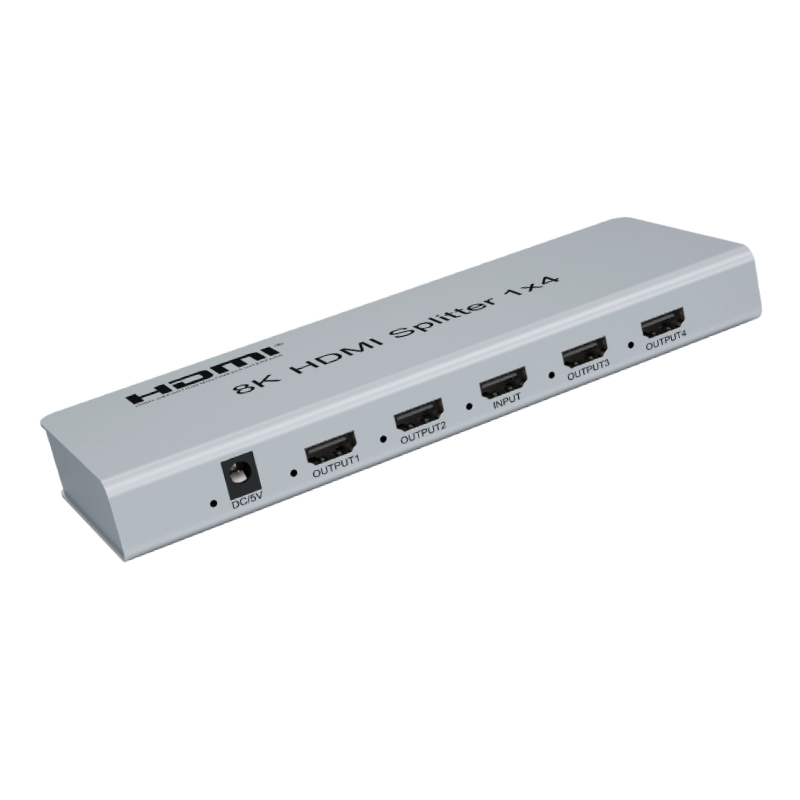

8K HDMI Splitter 1x4 8K60Hz

8K HDMI Splitter 1x4 8K60Hz

Model: HSP104-8K



Products Description
Introduction

 The 1x4 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks.It

allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors. In

addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal.

The resolutionof this hdmi splitter can be up to 7680X4320/60Hz.This product can support

EDID management function, comes with eight kinds of EDID mode, the users can choose

according to their own needs. In addition, it is with built-in IR extension function, it can

work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to control

the source.


Features

* Support HDR;

* Support 3D video format;

* Support CEC (only output1);

* Support high resolution up to 7680X4320/60Hz;

* Support the max baud rate of 40Gbps;

* Support 8/10/12 bit deep color;

* Built-in IR extension function. ( it can work with our hdmi 2.0 repeater which has IR-RX

 to receive the IR command to remote control the source);

* Support EDID management;

* Support IR-TX(only output2/3/4)


Specifications

HDMI resolution ………...……………………….………..…................ up to 7680*4320/60Hz

Support video format ………………………………..…….................… 8/10/12bit Deep color

Support audio format ……………….............. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max baud rate ……………….…….………………….………........................……….. 40Gbps

Input cable distance .………………...... (8K/60Hz resolution)≤5m HDMI 2.1 standard cable

Output cable distance …………….…… (8K/60Hz resolution)≤5m HDMI 2.1 standard cable

Max working current ………………………….................……………………….………… 0.7A

Power adapter format …………........ input AC (50Hz, 60Hz) 100V-240V; output: DC5V/2A

Operating Temperature range ……………...........……………….………….. (-15℃ to +55℃)

Dimension (L x W x H) ………………...............……....................……...…. 211x78x27 (mm)

Weight …….…..…………………………………..…….……….............................……… 504g
