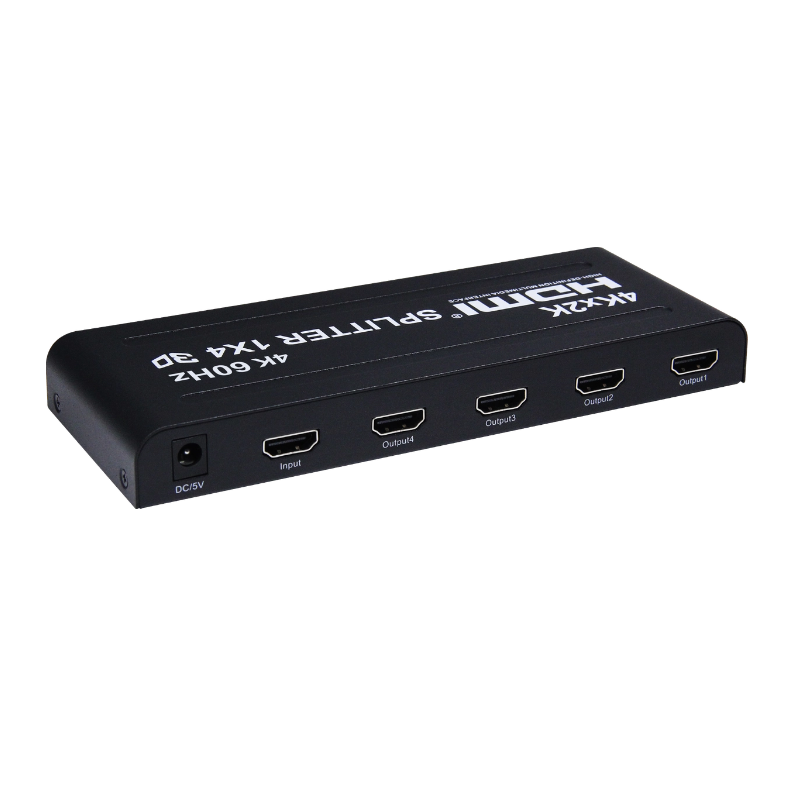

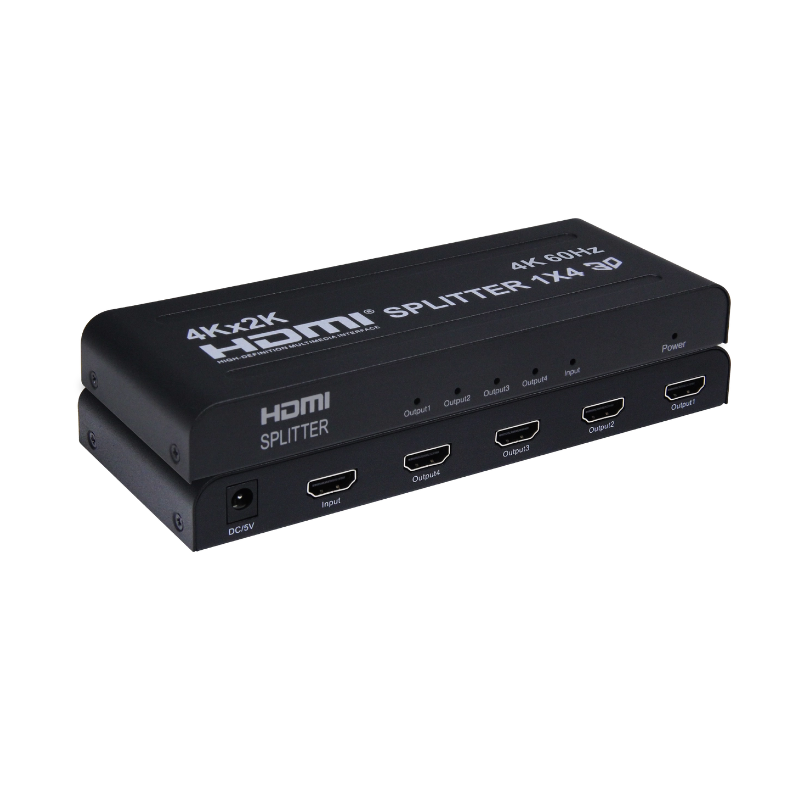

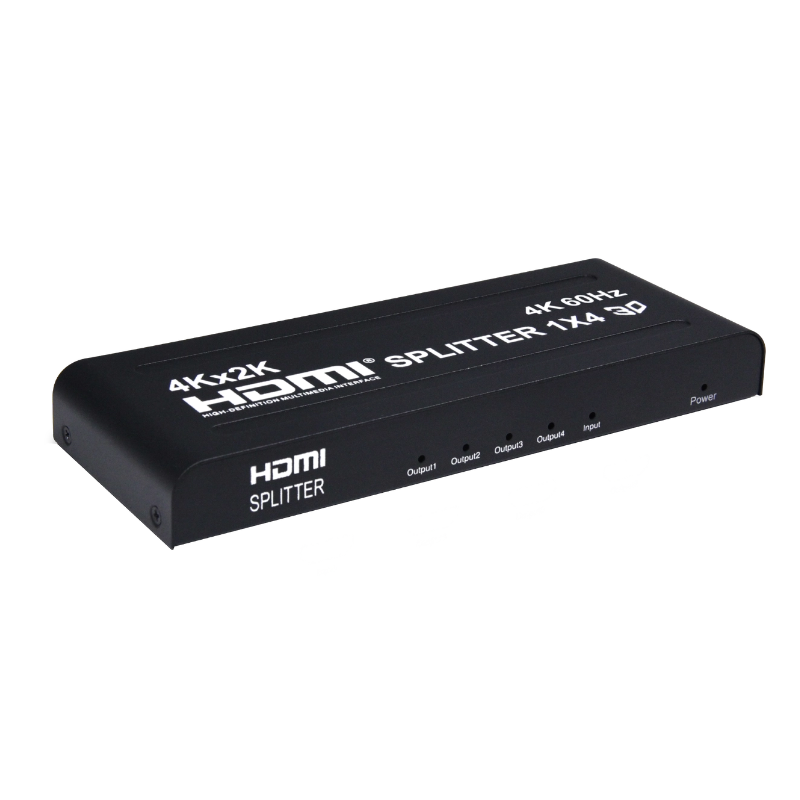

Products Description
This 1x4 hdmi splitter use a single HDMI source,accessing to multiple HDMI sinks .It
allows one HDMI device to be split easily to four HDMI compatible monitors or projectors.In
addition,It can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
The resolution of this hdmi splitter can be up to 3840X2160/60HZ.
Features :
* Support HDMI 2.0b version
* Support 3D video format
* Support high resolution up to 3840X2160/60HZ
* Support highest rate of 6G and TMDS clock can be up to 600 MHz
* Support 8/10/12 bit deep color
* Support AWG26 HDMI standard cable: input up to 15 meters,output up to 20
meters.(resolution 1080P)
* Support AWG26 HDMI standard cable: input up to 10 meters,output up to 15
meters(resolution 4K/30HZ)
* Support one single HDMI source,accessing to multiple HDMI sinks, the source can be
DVD player, A/V receiver, set top box and ect
* 5V/1A power adapter
Specifications
HDMI version...................................................................................................................HDMI2.0b
HDMI resolution............................................................................................up to 3840*2160/60Hz
Support video format.....................................................................................8/10/12 bit deep color
Support audio format................................................DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth....................................................................................................................600MHZ
Max baud rate........................................................................................................................6Gbps
Input cable distance............................................................................(1080p resolution)≤15m, (4K
resolution)≤10m AWG26 HDMI standard cable
Output cable distance.........................................................................(1080p resolution)≤20m, (4K
resolution)≤15m AWG26 HDMI standard cable
Max working current..............................................................................................................650mA
Power adapter format..................................................input AC(50Hz, 60Hz)100V-240V; DC5V/1A
Operating temperature range.....................................................................................(-15 to +55℃)
Dimension (L x W x H).............................................................................................178x67x23(mm)
Weight.......................................................................................................................................230g
