Introduction:

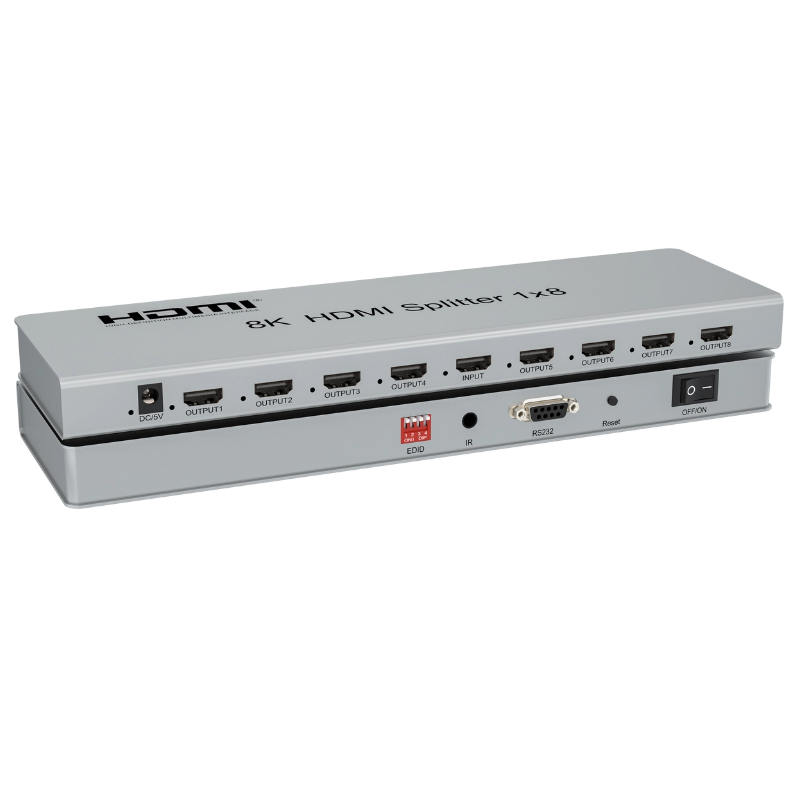

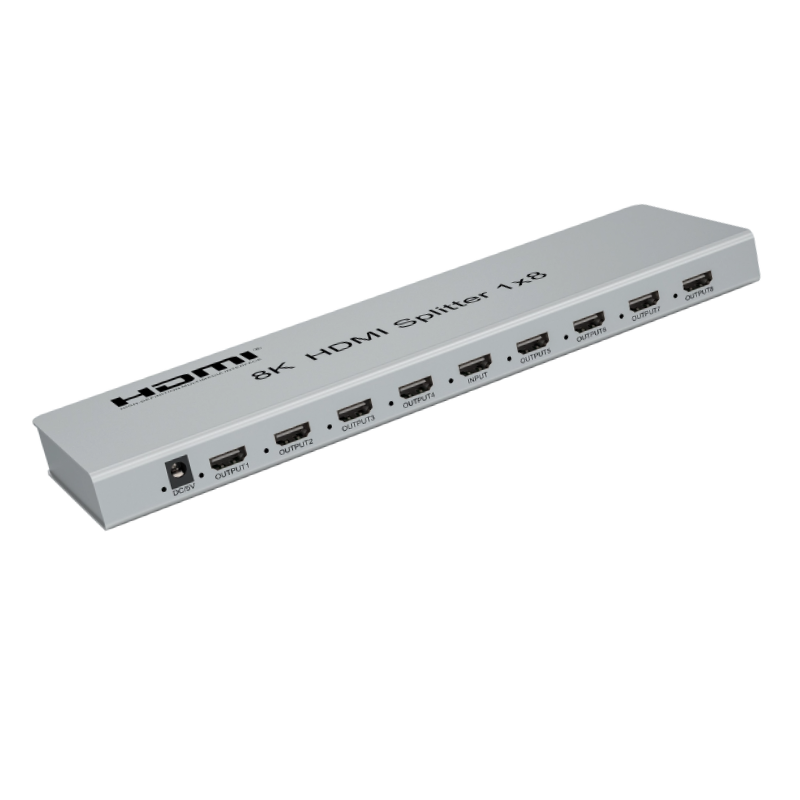

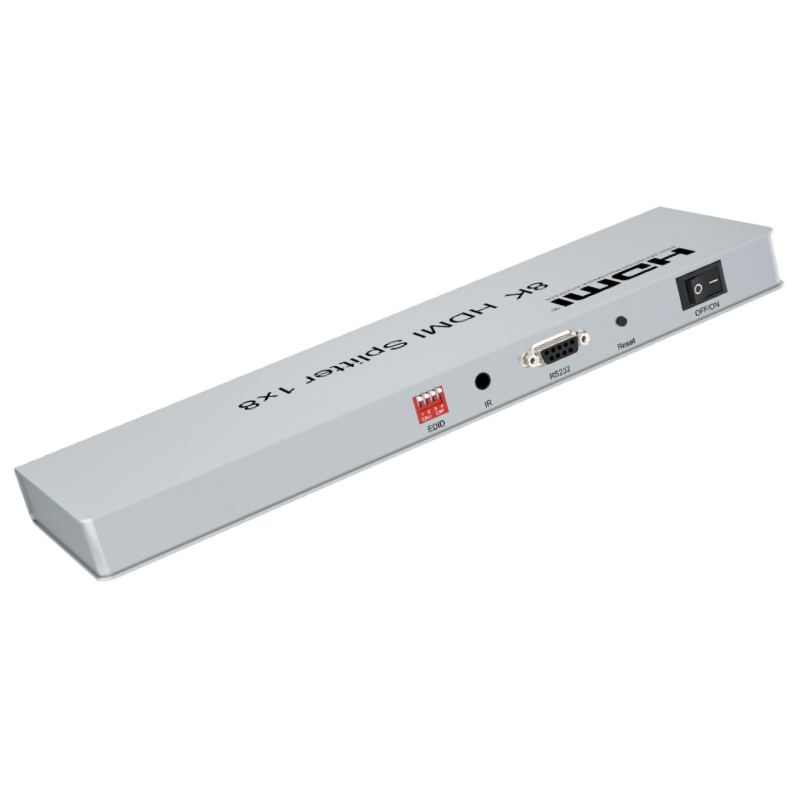

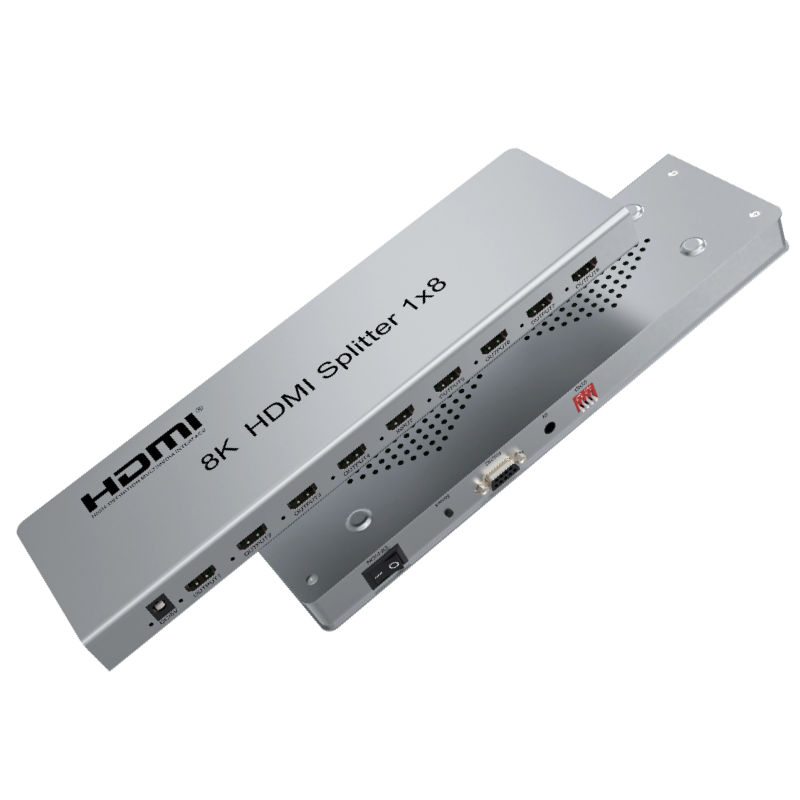

 The 1x8 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks.

It allows one HDMI device to be split easily to 8 HDMI compatible monitors or projectors.

In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI

signal. The resolution of this hdmi splitter can be up to 8K/60Hz.

 This splitter supports EDID management function, comes with eight kinds of EDID

mode, the users can choose according to their own needs. In addition, this product is

also built-in IR extension function, it can work with our HDMI 2.0V repeater which has

IR-RX to receive the IR command to control the source.

Features:

* Support HDR;

* Support 3D video format;

* Support CEC（only output1);

* Support high resolution up to 8K/60Hz;

* Remote control the source （via the IR-RX of HDMI repeater which splitter works

 with to receive the IR command);

* Support EDID management;

* Support output downscaling.

Specifications:

HDMI resolution ………………………………...………..……....................... up to 8K/60Hz

Support video format ……………………….................………..….... 8/10/12bit Deep color

Support audio format …………….............. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max baud rate …………….…….………………........................….………………... 40Gbps

Input cable distance ………………….......... (8K resolution)≤5m HDMI2.1 standard cable

Output cable distance ………………........... (8K resolution)≤5m HDMI2.1 standard cable

Max working current ……………....................……………………………………..…... 2.2 A

Power adapter format ………......... input AC (50Hz, 60Hz) 100V-240V; output: DC5V/3A

Operating temperature range …...........……………………….…………… (-15℃to +55℃)

Dimension (L x W x H) ……………...............…...................……….…… 310x90x24 (mm)

Weight ….…..…………………………………..……...........................……………....... 864g
