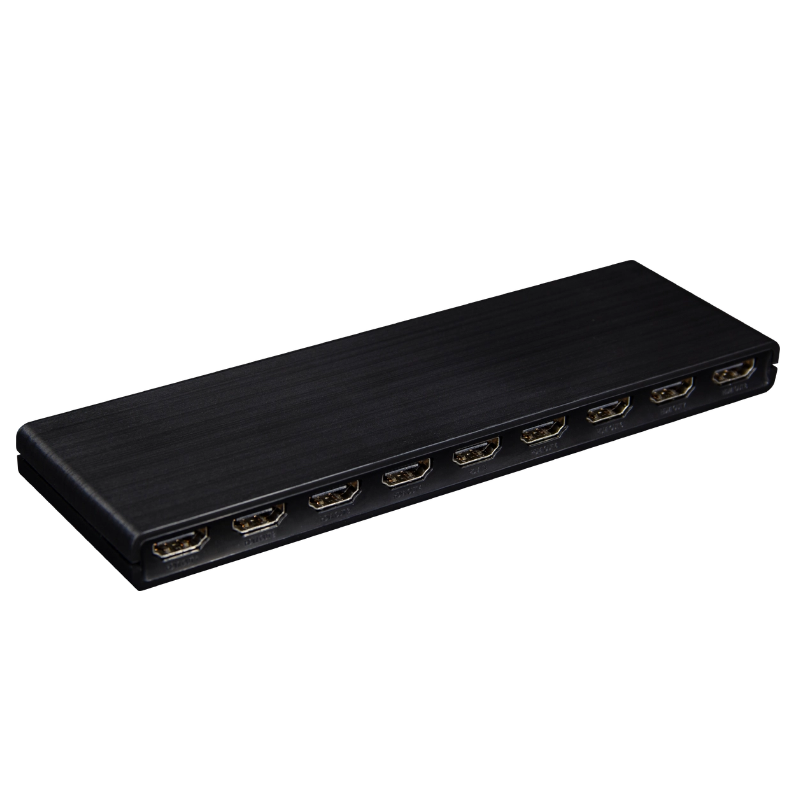

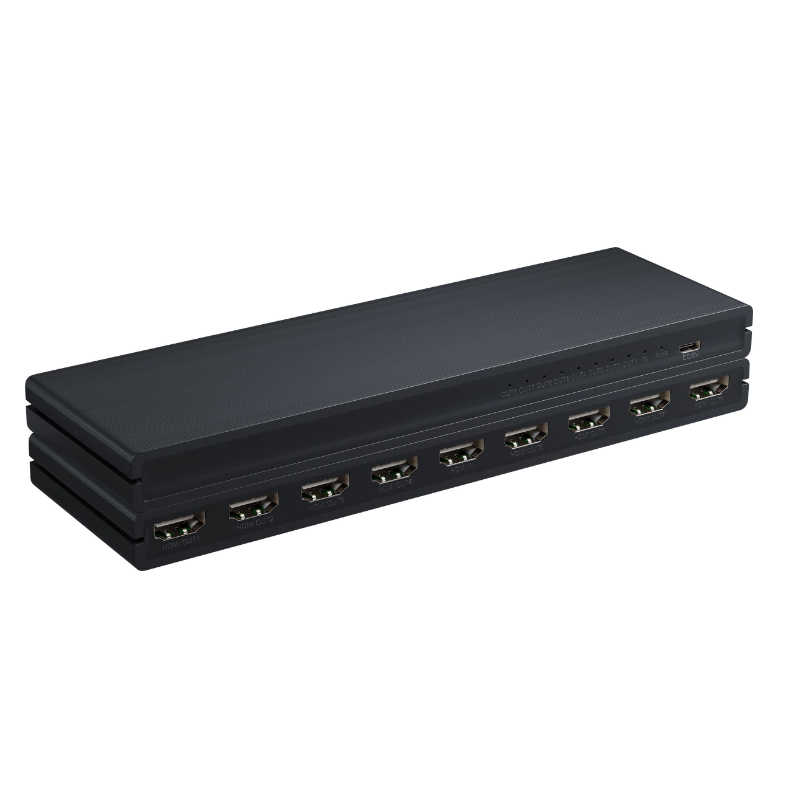

Mini 4K HDMI Splitter 1x8

Mini 4K HDMI Splitter 1x8

Model: HSP108-P





Products Description

The Mini 1x8 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI

sinks. It allows one HDMI device to be split easily to eight HDMI compatible

monitors or projectors. In addition,it can be placed at the end of a long HDMI

cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up

to 3840X2160/30Hz.


Features:

* Support 3D video format

* Support high resolution up to 3840X2160/30HZ

* Support highest rate of 3.4 G and TMDS clock can be up to 340 MHz

* Support 8/10/12 bit deep color

* Support AWG26 HDMI standard cable:

 1)when the resolution is 1080p and below, input up to 15 meters,output up to 15

 meters.

 2)when the resolution is 4K, input up to 8 meters, output up to 8 meters.

* Support one single HDMI source,accessing to multiple HDMI sinks, the source

 can be DVD player, A/V receiver, set top box and etc.

* 5V power adapter


Specifications:

HDMI resolution ……………………….................……….……............... up to 3840*2160/30Hz

Support video format ………………………...............………..…...…… 8/10/12bit deep color

Support audio format ……...…...............…… DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth ………………………………...................................………………… 340MHz

Max baud rate …………….…….……………….......….…...............………………… 3.4Gbps

Input cable distance …………………………..................………… (1080p resolution) ≤15m,

 (4K resolution)≤8m AWG26 HDMI standard cable

Output cable distance ………...............…………............………… (1080p resolution) ≤15m,

 (4K resolution)≤8m AWG26 HDMI standard cable

Max working current ………................………………………...………………………... 600mA

Power adapter format ……................…. input AC (50HZ, 60HZ) 100V-240V; output: DC5V

Operating Temperature range ………………….........……................……… (-15℃to +55℃)

Dimension (L x W x H) ………………...............……...............……………. 201x62x16 (mm)

Weight …….…..……………………………………………..................…………………… 128g
