Introduction

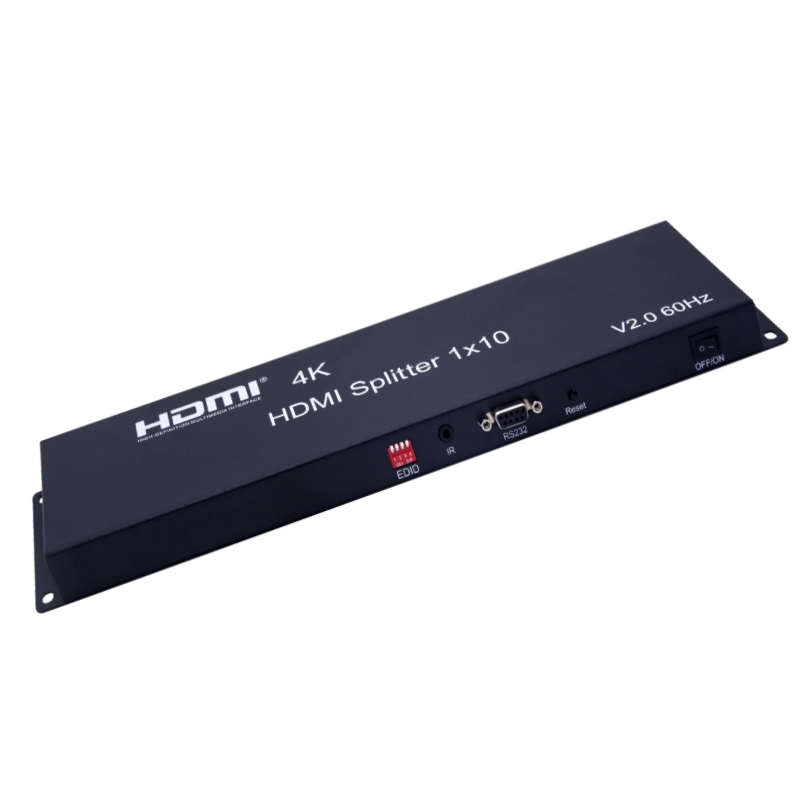

The 1x10 HDMI Splitter uses a single HDMI source accessing to multiple HDMI sinks. It

allows one HDMI device to be split easily to ten HDMI compatible monitors or projectors.

In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI

signal. The resolution of this hdmi splitter can be up to 3840x2160/60Hz.

Features

* Support 3D video format;

* Support CEC (only output1);

* Support high resolution up to 3840x2160/60Hz;

* Support highest rate of 3x6G and TMDS clock can be up to 600 MHz;

* Support 8/10/12 bit deep color;

* Support AWG26 HDMI standard cable, input up to 5 meters, output up to 10 meters

* Support one single HDMI source，accessing to multiple HDMI sinks, the source can

 be DVD player, A/V receiver, set top box and etc;

* Built-in IR extension function ( via the IR-RX of HDMI repeater to control the HDMI

 sources);

* Support serial port online upgrade;

* Support EDID management.

Specifications

HDMI resolution ………………………………..………..………….….. up to 3840x2160/60Hz

Support video format ………………………………..…………………… 8/10/12bit deep color

Support audio format ………………..………. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth …………………………………………………………………..……… 600MHz

Max baud rate ……………….…….……………………….…………………………... 3x6Gbps

Input cable distance .…................................................. ≤5m AWG26 HDMI standard cable

Output cable distance .…............................................ ≤10m AWG26 HDMI standard cable

Max working current …………………………………………………………………..….… 1.4A

Power adapter format ……..…...… input AC (50HZ, 60HZ) 100V-240V; output: DC12V/2A

Operating Temperature range ……………………………..…………........…… (-15 to +55℃)

Dimension (L x W x H) ………………...............………………………..…... 375x89x22 (mm)

Weight …….…..…………………………………………………………..…….…...……… 780g
