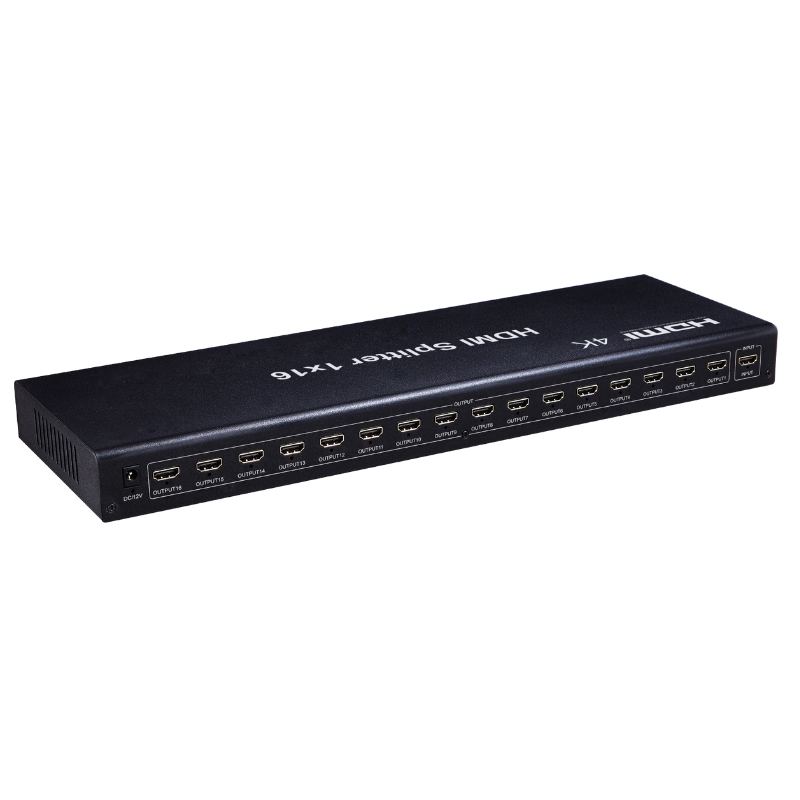

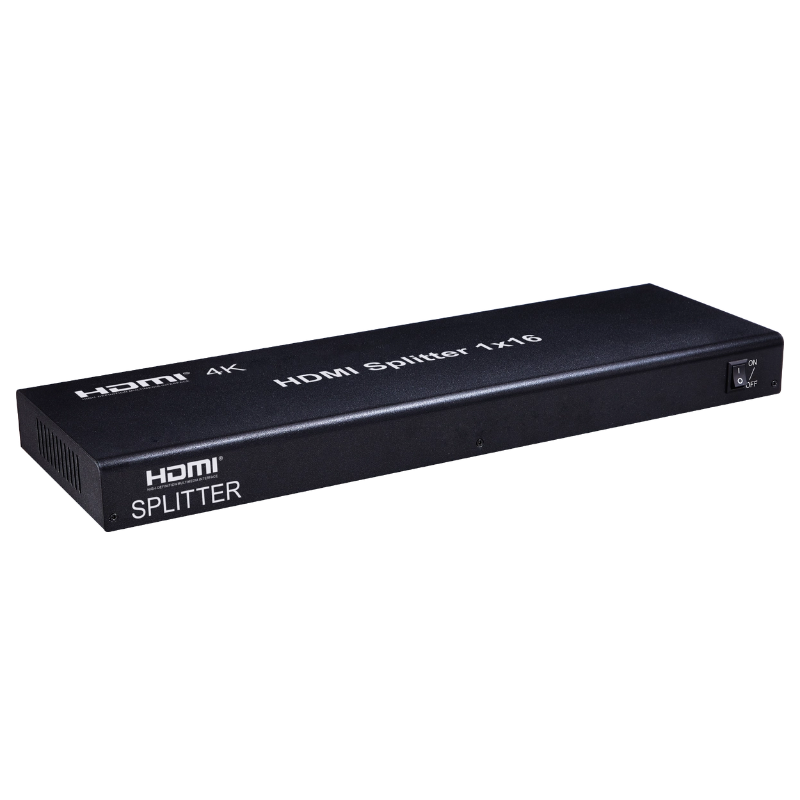

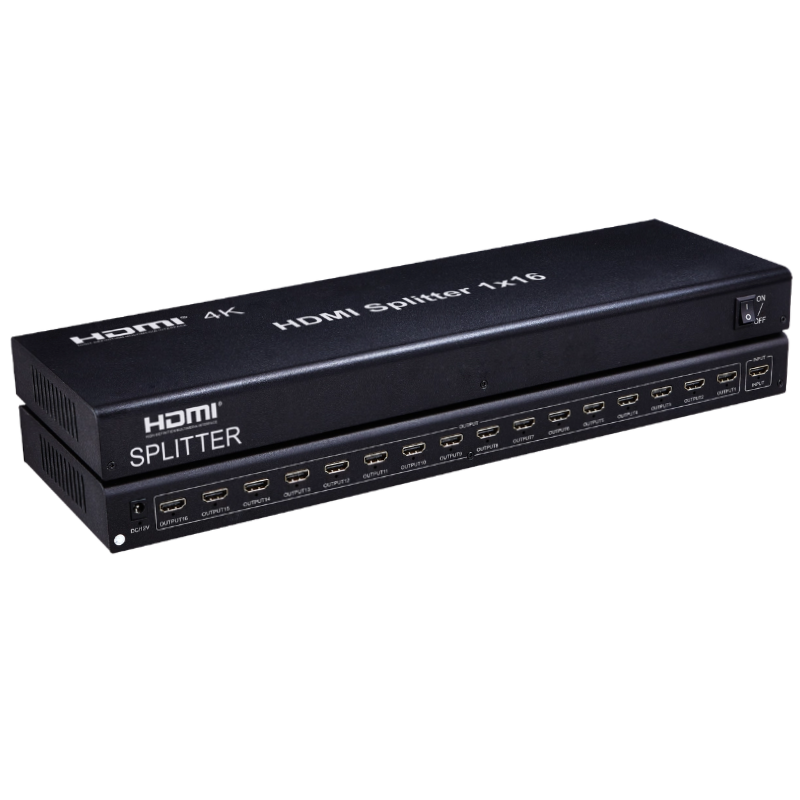

4K HDMI Splitter 1x16

4K HDMI Splitter 1x16

Model: HSP116



Products Description

The HDMI 4K 1x16 Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It

allows one HDMI device to be split easily to sixteen HDMI compatible monitors or projectors.

The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Resolution up to 3840X2160/30Hz.


Features:

* Support 3D video format

* Resolution up to 3840x2160/30Hz

* Support 3.4Gbps data rate for TMDS clock up to 340MHz

* Support deep color 8/10/12bit

* Support AWG26 HDMI standard cable:

 1)when the resolution is 1080p and below, input up to 10 meters,output up to 15 meters.

 2)when the resolution is 4K, input up to 5 meters, output up to 10 meters.

* Support displaying single source, multi-output high-definition signal source from DVD

 player A / V receiver, set-top box


Specifications:

HDMI resolution …………......…………..……………………………………up to 3840x2160/30Hz

Support video color format ………….….....………………………….……… deep color 8/10/12bit

Support audio format………..…......……………… DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth…………………..……....………………..……………………………………340MHz

Max transmission bandwidth…….…..……………………..…………………………………3.4Gbps

Input cable distance.………………………...............................…….(1080p resolution) ≤10m,(4K

 resolution)≤5m AWG26 HDMI standard cable

Output cable distance……………………..................................……(1080p resolution) ≤15m,(4K

 resolution)≤10m AWG26 HDMI standard cable

HDMI input ………….………..………............….……..………………………………………………1

HDMI output………………………...............…………..…………………………………………… 16

Max working current……………….................…………......………………….………….……. 0.7A

Power adapter format …………….……Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A

Operating Temperature range……..……......………………………………………… (-15 to +55℃)

Operating Humidity range………………........……………………5 to 90%RH (No Condensation)

Dimension (L x W x H)…………..........……………………………………………460x150x40 (mm)

Weight…..……………………………....…………………….……………………………………1620g
