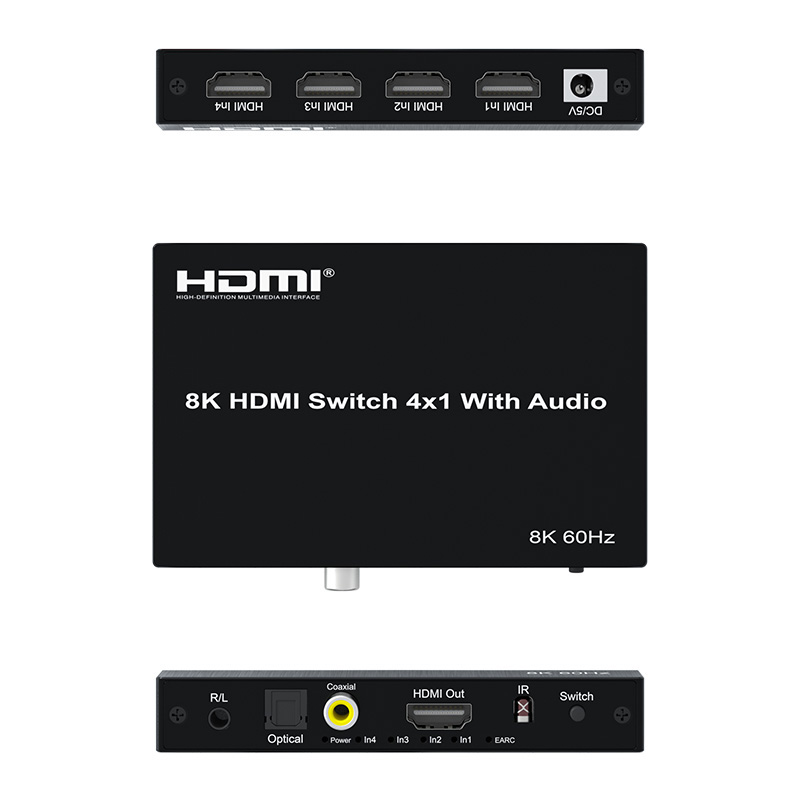

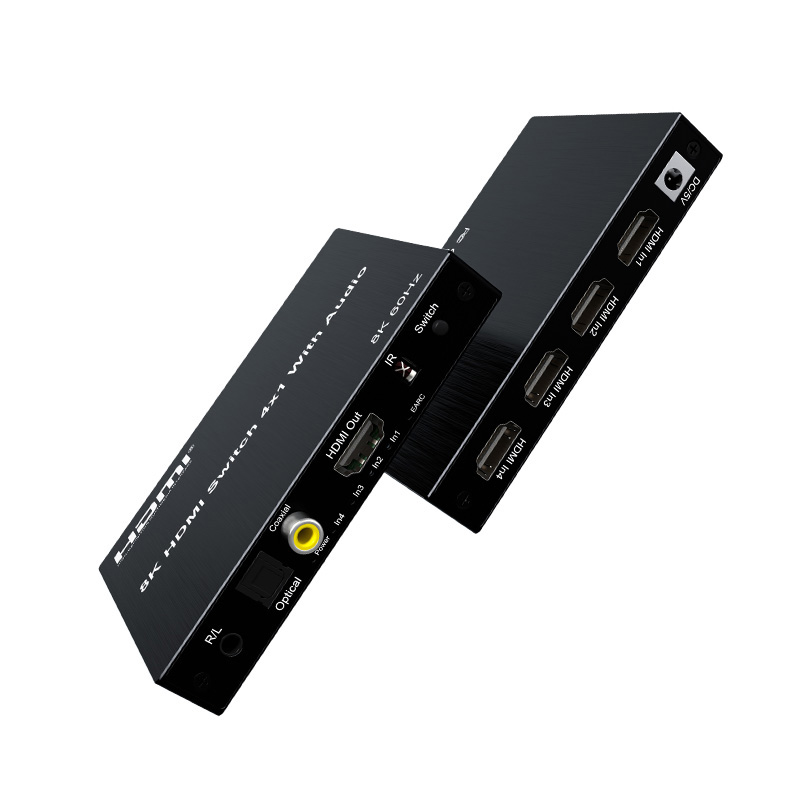

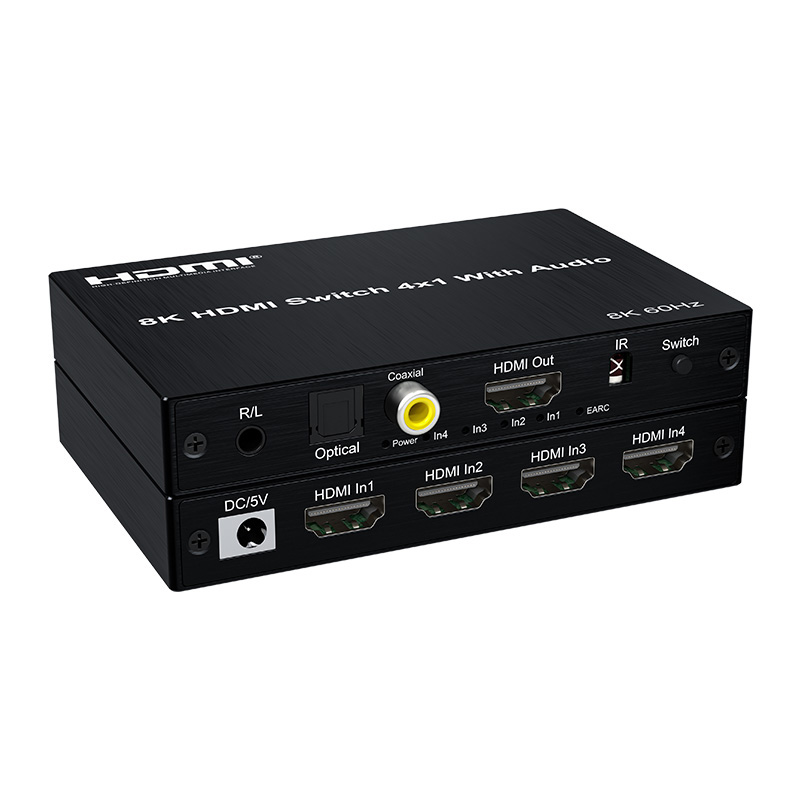

8K HDMI Switch 4x1 with Audio Extractor 8K60Hz

8K HDMI Switch 4x1 with Audio Extractor 8K60Hz

Model: HSW401-8K



Products Description

Introduction :

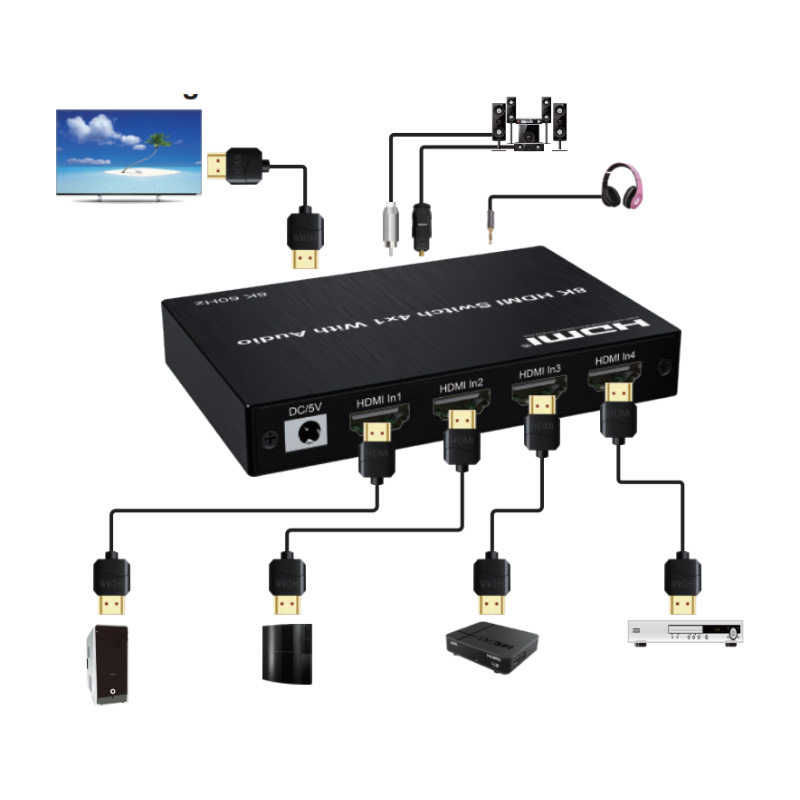

 The 4x1 HDMI switch allows 4 HDMI ports to be switched to a single display

terminal via remote control or buttons on unit. This product comes with two digital audio

outputs (optical fiber and coaxial) and one 3.5 mm headphone output all the way.


Features :

* Support 8K@60Hz;

* Support 3D video format;

* Support EARC/ARC;

* Support for HDMI audio extraction, 3.5mm headphone、optical fiber and coaxial digital

 audio output;

* 4 HDMI signal input switch to 1 HDMI display device;

* Support HDR;


Specifications :

HDMI resolution ……. 8K@60Hz/8K@30Hz/4K@120Hz/4K@60Hz/4K@30Hz/1080P@60

Support video format ……………....................................................... 8/10/12 bit deep color

Support audio format …………….................. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max baud rate ……………….…….……..………….…....….…...…………….…..…... 48Gbps

Input cable distance ..…...…......................…. 8K/60Hz ≤3M AWG26 HDMI standard cable

Output cable distance …..................…........... 8K/60Hz ≤3M AWG26 HDMI standard cable

Max working current ...………………………………….…..…..………………..…….… 500mA

Power adapter format .................... Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range ……...........….…...……..………………………. (-15 to +55℃)

Operating Humidity range ……....….....……...……..….….. 5 to 90%RH (No Condensation)

Dimension (L x W x H) ...……………...……….……....……..…………...…. 121x87x19 (mm)

Weight …..………………………..………………..…....……….…............….…....….…... 173g
