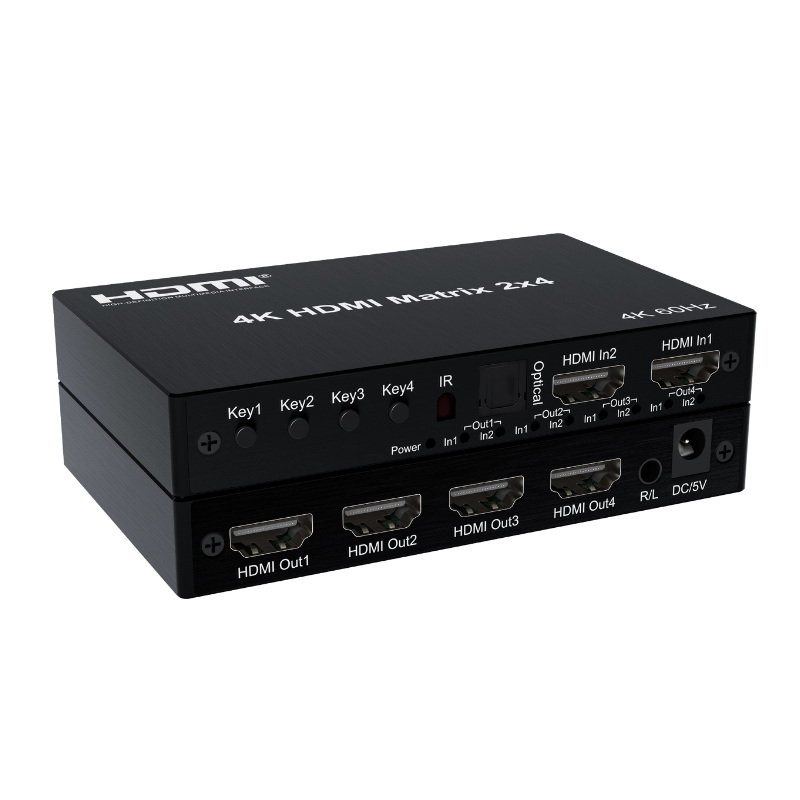

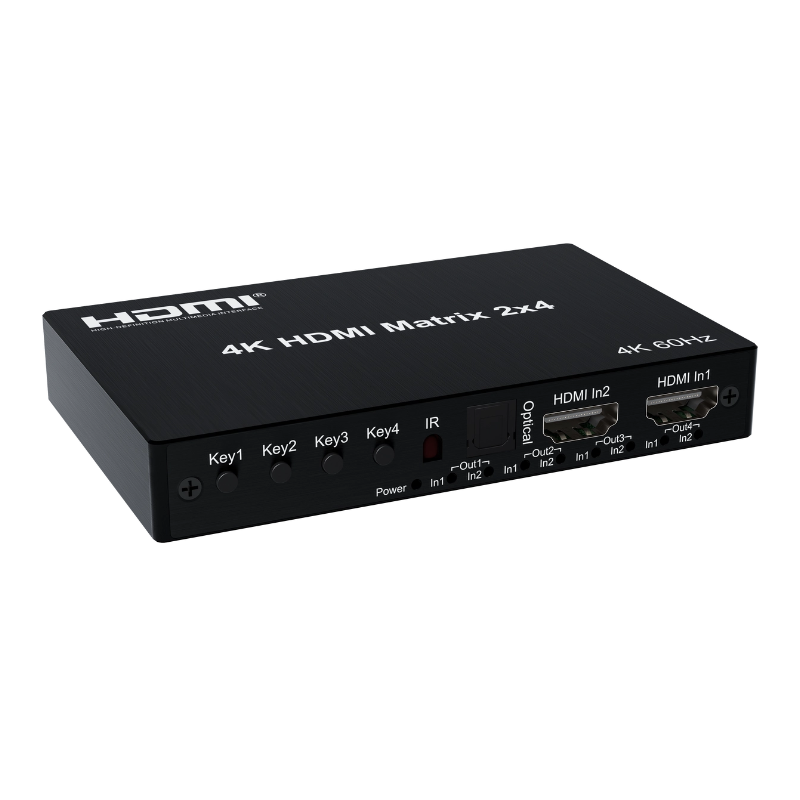

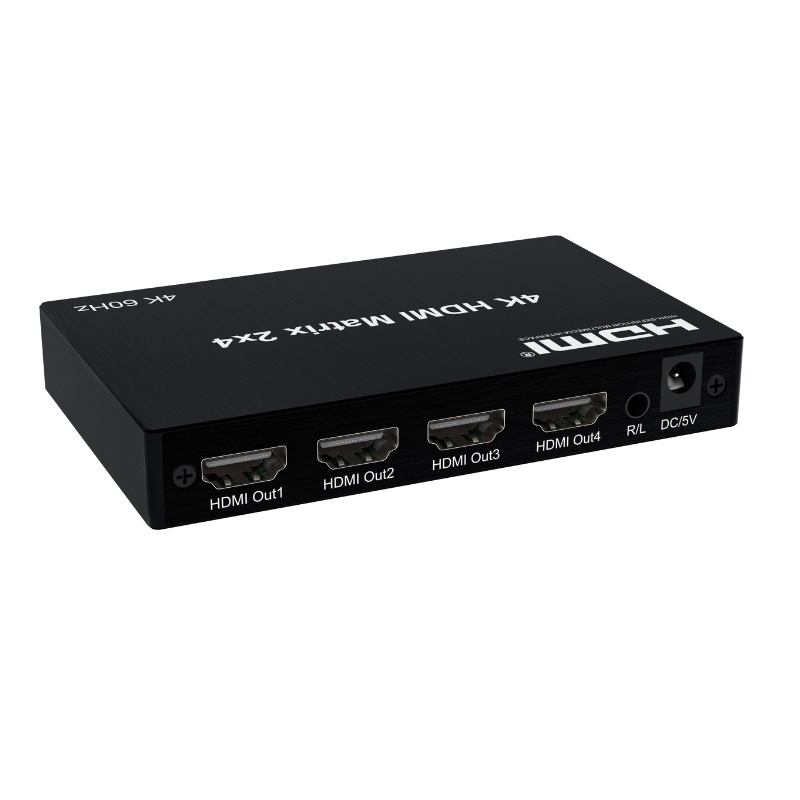

4K HDMI Matrix 2x4 4K60Hz HDMI2.0

4K HDMI Matrix 2x4 4K60Hz HDMI2.0

Model: HMX204-M



Products Description

Introduction :

 The HDMI matrix 2x4 can connect 2 HD signal sources to 4 HD display terminals

with optical fiber and stereo headphone output at the same time via HDMI out 1 port. The

matrix allows two HDMI devices to be switched or split easily to four HDMI compatible

monitors or projectors.

 Our devices offer solutions for noise, space and security concerns, data center

control, information distribution, conference room presentation, school and corporate

training environments.


Features :

* Support 3D video format;

* Via HDMI out1, support 3.5mm earphone jack and optical output at same time;

* 2 HDMI inputs switch and split to 4 HDMI displays;

* Support LPCM/Dolby/DTS 5.1 channel;


Specifications :

HDMI resolution …………………….…....….…....…...................…... up to 3840*2160/60Hz

Support video format ……………................................................…... 8/10/12 bit deep color

Support audio format ……………...............................................….. LPCM/DTS/Dolby-AC3

Max bandwidth …………………………………………………..........….…….…....…. 600MHz

Max baud rate ……………….…….……..………….…..….…...…………….…..…... 3x6Gbps

Input cable distance ..…...….....................… 4K/30Hz ≤15M AWG26 HDMI standard cable

 4K/60Hz ≤5M HDMI 2.0 standard cable

Output cable distance …..................…......... 4K/30Hz ≤15M AWG26 HDMI standard cable

 4K/60Hz ≤5M HDMI 2.0 standard cable

Max working current ...………………………………….…..…..………………..…….… 750mA

Power adapter format .................... Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range ……...........….…...……..………………………. (-15 to +45℃)

Operating Humidity range ……....….....……...……..….….. 5 to 90%RH (No Condensation)

Dimension (L x W x H) ...……………...……….……....……..…………...…. 122x80x19 (mm)

Weight …..………………………..………………..…....……….…............….…....….…... 176g
