Introduction :

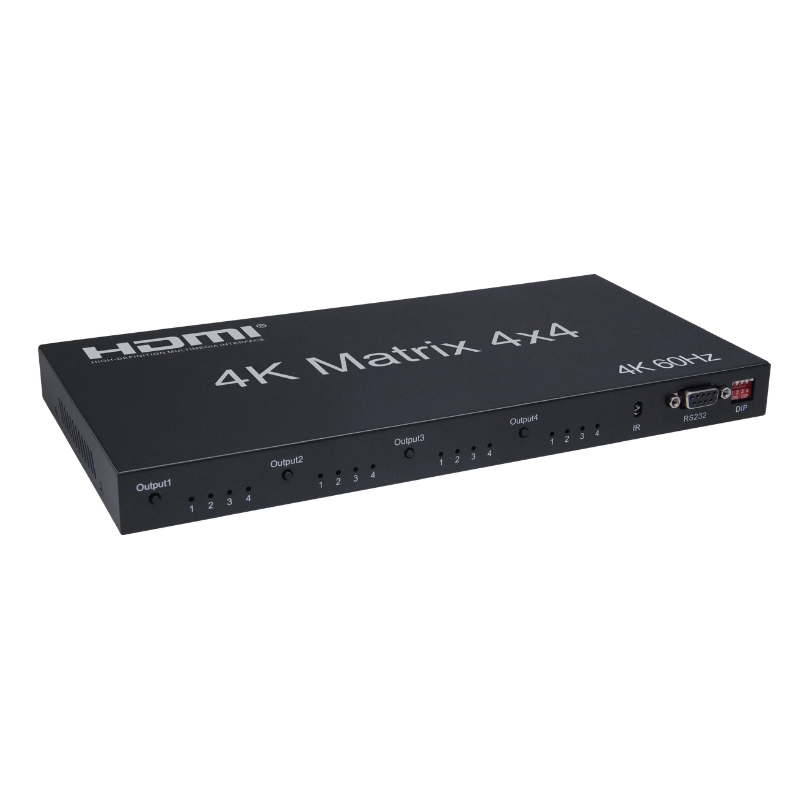

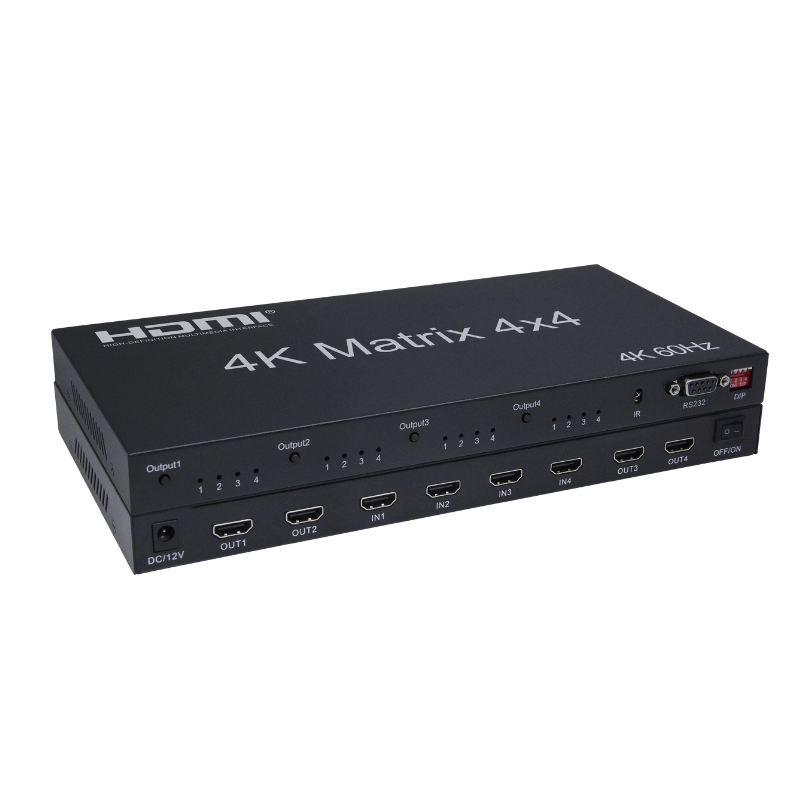

The HDMI Matrix 4x4 can connect four HDMI signal sources with the four displays at the

same time.It can easily and freely split or switch four hdmi signals on four displays or

projectors which compatible with hdmi signal. Extra infrared receiver extension, IR emitter,

RS232 are supplied for remote control.

HDMI matrix 4x4 has the ability of equalization and amplification to ensure HDMI signal's

transmission through long cable without quality loss.This HDMI matrix offers solutions for

digital entertainment center, HDTV，retail and show site, HDTV, STB, DVD and projector

factory, noise, space and security concerns, data center control, information distribution,

conference r ntation, school and corporate training environments.

Features :

* Very compact structure

* Stable and reliable

* Economical and cost-effective

* Support 3D；

* Support IR Remote Control；

* Support RS232 Control;

* The four outputs could show the same or different source simultaneously；

* Support 4K (input) resolution 2K (output) (Downscaling);

Specifications :

HDMI resolution …………………….…....….…....…...............................….... up to 4K/60Hz

Support video format ……………................................................…....8/10/12 bit deep color

Support audio format ……............. DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max baud rate ……………….....…….………………….…..….……………….….…... 18Gbps

Input cable distance ..…....…………………...........................…..............…… ≤10m AWG24

Output cable distance …..................…........….......................................……. ≤10m AWG24

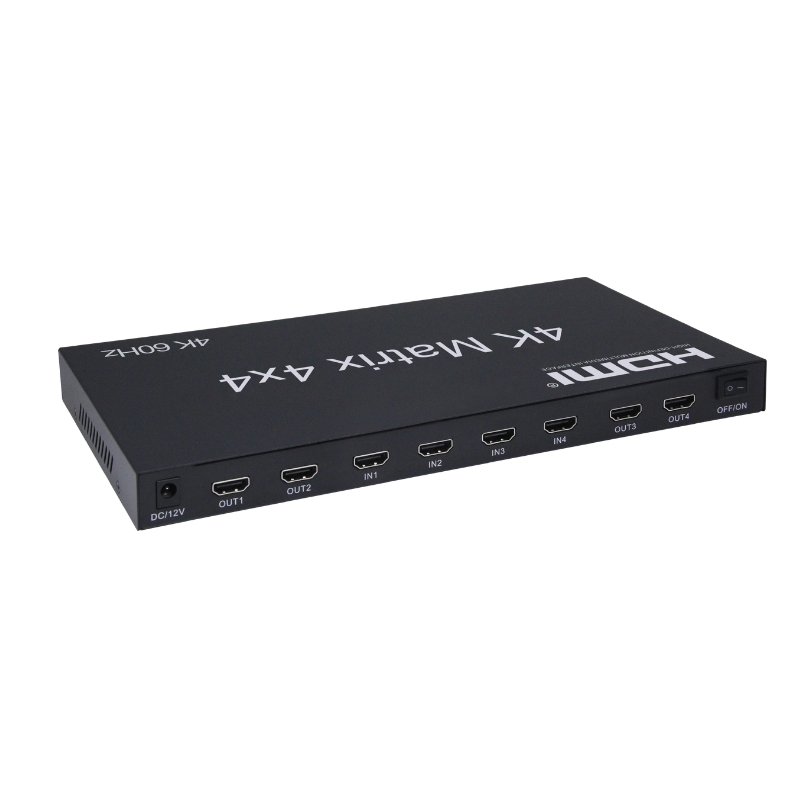

HDMI Input ......……...………………………………....………...………..……….…....….…... 4

HDMI Output ...……………………………..........………......…………………..….…....….…. 4

Max working current ………………………………….…..…..………………........…….…. 1.6A

Power adapter format .................. Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/2A

Operating Temperature range ……........….…...……..………………………... (-15 to +45℃)

Operating Humidity range ……....….....……...…….….…... 5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………....……….……....………………...….. 276x143x26 (mm)

Weight …..…………………………..………………..…....……….….........….…....….... 720.5g
