Introduction :

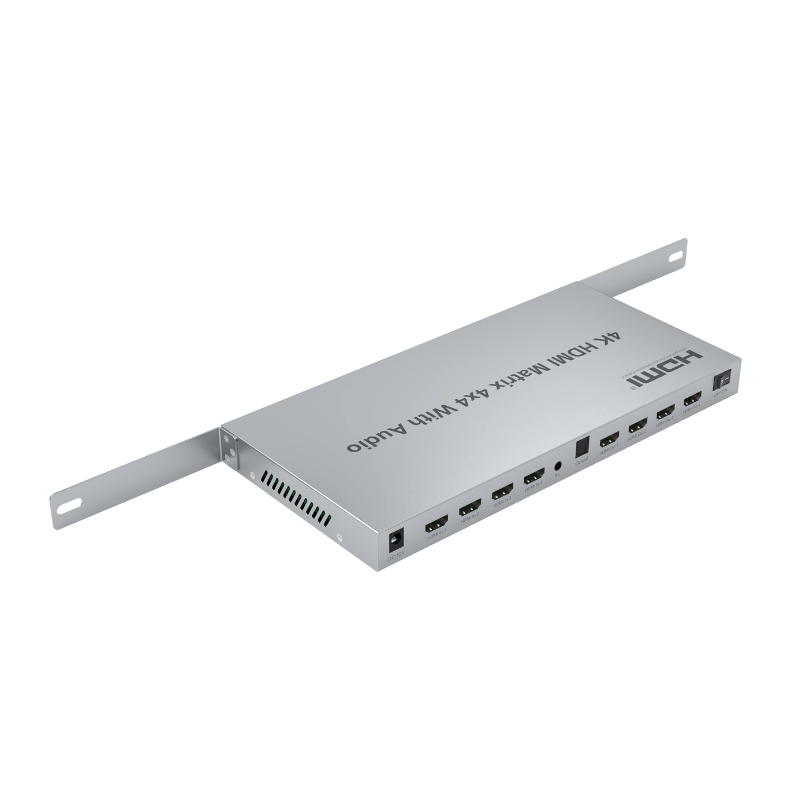

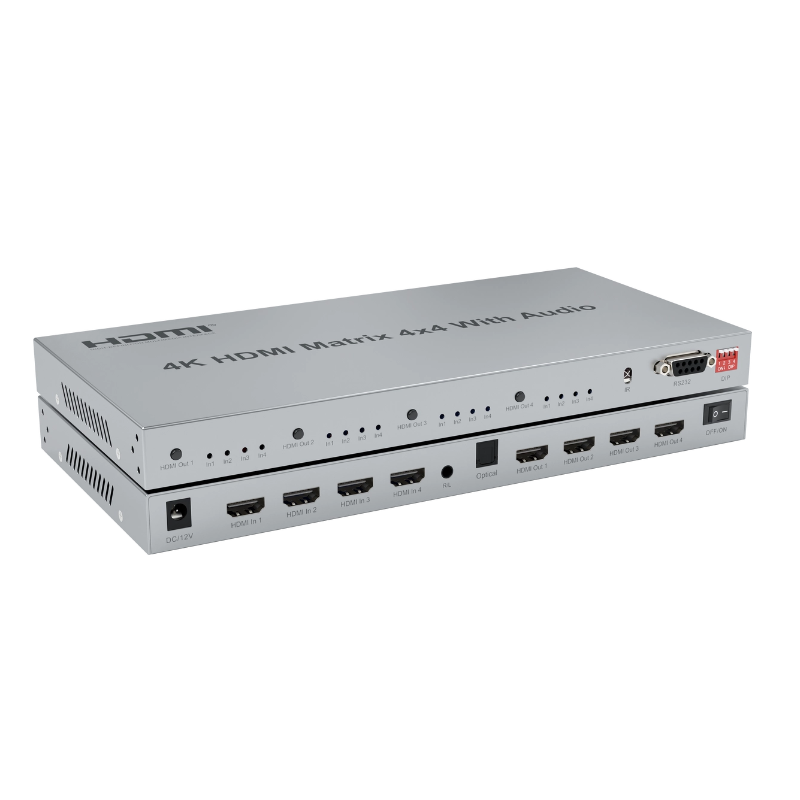

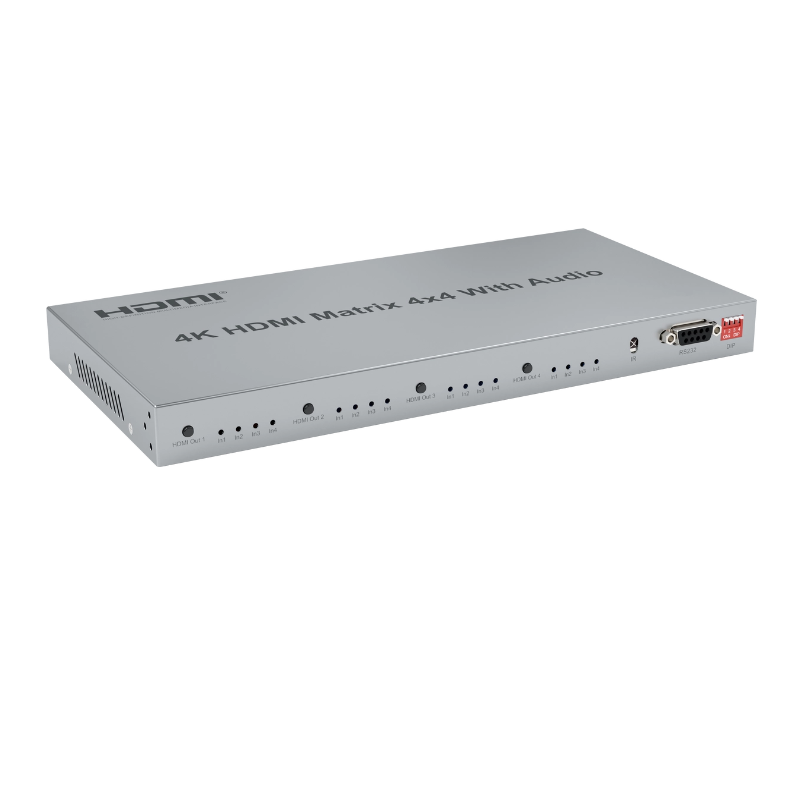

 The HDMI matrix 4x4 can connect 4 HD signal sources to 4 HD display terminals

with optical fiber and stereo headphone output at the same time via HDMI out 1 port.

The matrix allows four HDMI devices to be switched or split easily to four HDMI

compatible monitors or projectors.

 This HDMI matrix support lossless transmitting and are widely used in space and

security concerns, data center control, information distribution, conference room

presentation, school and corporate training environments.

Features :

* Support HDCP1.4;

* Very compact structure;

* Stable and reliable;

* Via HDMI out1, support 3.5mm earphone jack and optical output at same time;

* Economical and cost-effective;

* Support 3D；

* Support IR Remote Control；

* Support RS232 Control;

* The four outputs could show the same or different source simultaneously；

Specifications :

HDMI resolution …………………….…....….…....…...............................….... up to 4K/30Hz

Support video format ……………................................................…....8/10/12 bit deep color

Support audio format ……............. DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max baud rate ……………….....…….……...……….…..….……………….….…... 3x3.4Gbps

Input cable distance ..…...….....................… 4K/30Hz ≤15M AWG26 HDMI standard cable

Output cable distance …..................…......... 4K/30Hz ≤15M AWG26 HDMI standard cable

HDMI Input ......……...………………………………....………...………..……….…....….…... 4

HDMI Output ...……………………………..........………......…………………..….…....….…. 4

Max working current ………………………………….…..…..………………........…….…. 0.6A

Power adapter format .................. Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A

Operating Temperature range ……........….…...……..………………………... (-15 to +45℃)

Operating Humidity range ……....….....……...…….….…... 5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………....……….……....………………...….. 276x143x26 (mm)

Weight …..…………………………..………………..…....……….….........….…....…....... 720g
