Introduction :

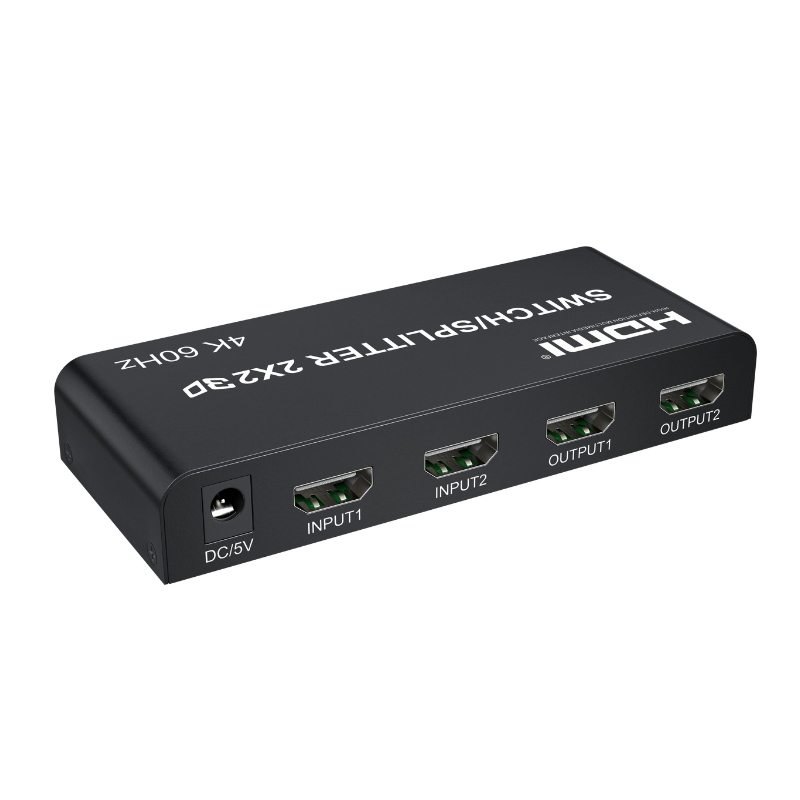

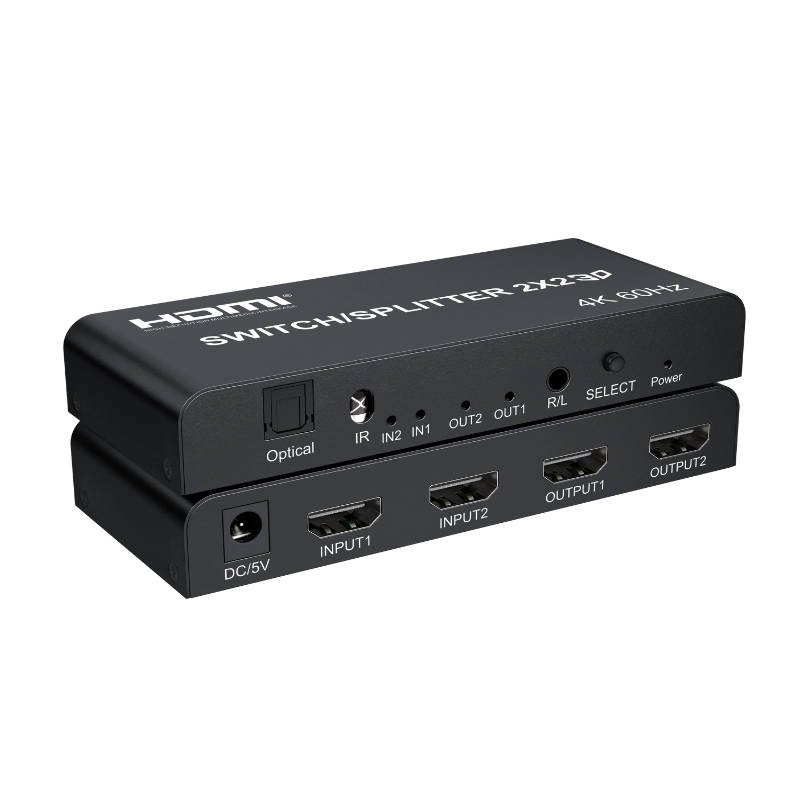

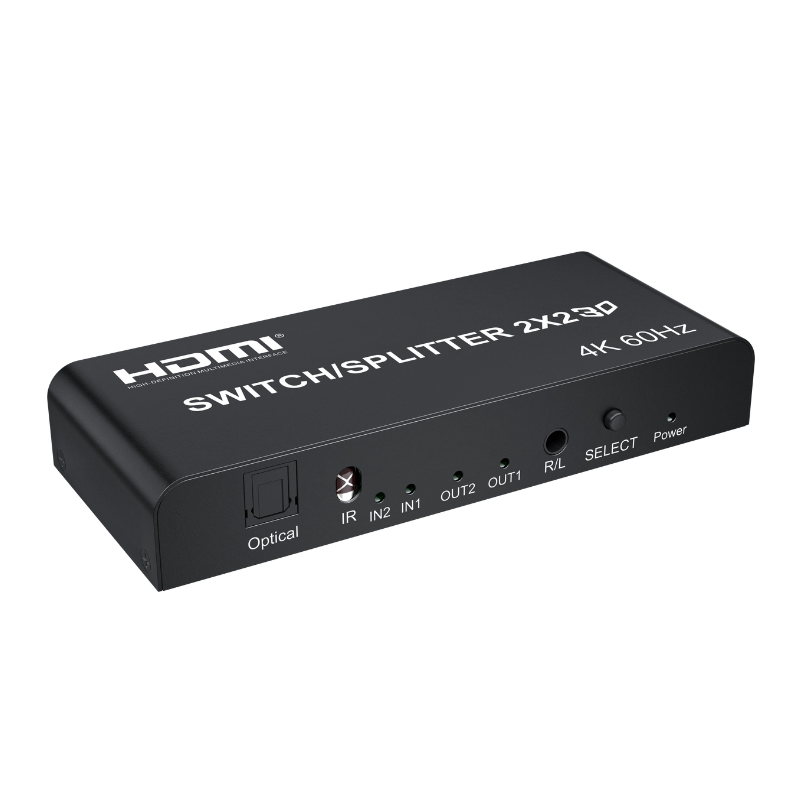

This 2x2 HDMI Switcher/Splitter can connect two HD signal sources with two HD

display terminals, it allows two HDMI signals to be split or switched to two HDMI

compatible monitors or projectors. And it can amplify your HDMI signals at the same time.

This two signal sources can be switched freely via button or remote control. The

HDMI Switcher/Splitter 2x2 can support full HD video format, highest resolution

3840x2160/60Hz.

Features :

1.Downscaling (can output 4K and 1080p at the same time)

2.High Definition,it can support 4K/60Hz RGB/YUV 4:4:4

3.Transmission long distance,4K/60Hz up to 10meters,1080p up to 20meters

Specification:

HDMI resolution ……………………...................................................Up to 3840x2160/60Hz

Support video format ……………………....................….…..……..…..8/10/12 bit deep color

Support audio format…..................................DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth………………………………..……………………….……………...…. 600MHz

Max baud rate……………….…….………………...............……………....................... 6Gbps

Input cable distance........................................................................... (1080p resolution)≤20m,(4K

resolution)≤10m AWG26 HDMI standard cable

Output cable distance…………………...........................……....(1080p resolution)≤20m,(4K

resolution)≤10m AWG26 HDMI standard cable

HDMI Input Port...................................................................................................................2

HDMI Output Port................................................................................................................2

Max working current……………………….……………..……….…………………….... 300mA

Power adapter format........................Input:AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A

Operating Temperature range……..….…….………………………………… (-15℃ to +55℃)

Operating Humidity range...................................................5 to 90%RH (No Condensation)

Dimension (L x W x H)........…………………………..…….….………………128x53x20 (mm)

Weight…..………………………………...……………….….....…….………………………140g
